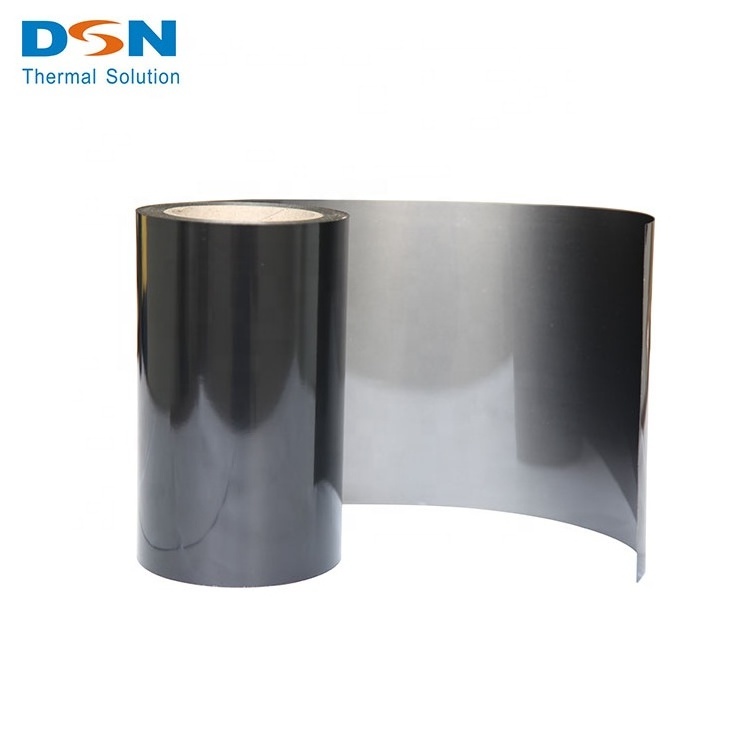

Quick Details
-
Model Number:
-
DSN6000
-
Application:
-
electronics heat dissipation
-
thickness:
-
0.2mm
-
thermal conductivity (X-Y-axis):
-
300w/mk
-
thermal conductivity (Z-axis):
-
7-10w/mk
-
density:
-
1.3g/cm3
-
hardness:
-
85 ShoreA
-
tensile strength:
-
650psi
-
Flammability rating:
-
94VO
-
temperature resistance:
-
- 40℃ to 400℃
-
thermal resistance:
-
0.2℃-in2/w 1.07℃-cm2/w
-
volume resistance:
-
11*10-4ohm-cm
Quick Details
-
C Content (%):
-
99.2~99.5%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
DSN
-
Model Number:
-
DSN6000
-
Application:
-
electronics heat dissipation
-
thickness:
-
0.2mm
-
thermal conductivity (X-Y-axis):
-
300w/mk
-
thermal conductivity (Z-axis):
-
7-10w/mk
-
density:
-
1.3g/cm3
-
hardness:
-
85 ShoreA
-
tensile strength:
-
650psi
-
Flammability rating:
-
94VO
-
temperature resistance:
-
- 40℃ to 400℃
-
thermal resistance:
-
0.2℃-in2/w 1.07℃-cm2/w
-
volume resistance:
-
11*10-4ohm-cm
Product Information
|
TYPE
|
DSN60030
|
DSN60050
|
DSN60080
|
DSN60100
|
DSN60130
|
DSN60150
|
|
Carbon Content
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
|
Color
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
|
Thickness (mm)
|
0.03
|
0.05
|
0.08
|
0.1
|
0.13
|
0.15
|
|
Thickness Tolerance (mm)
|
±0.005
|
±0.005
|
±0.01
|
±0.02
|
±0.02
|
±0.03
|
|
Density (g/cm³)
|
1.5±0.1
|
1.5±0.1
|
1.5±0.1
|
1.4±0.1
|
1.3±0.1
|
1.3±0.1
|
|
Hardness (shore A)
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Tensile Strength (psi)
|
650
|
650
|
650
|
650
|
650
|
650
|
|
UL Flammability Rating
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
|
Temperature Range
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
|
Thermal Conductivity(X-Y axis)
|
400-500 W/m.K
|
400-500 W/m.K
|
350-450 W/m.K
|
300-400 W/m.K
|
300-400 W/m.K
|
250-350 W/m.K
|
|
Thermal Conductivity
(Z axis)
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
7~10 W/m.K
|
|
Thermal Resistance @100pis
|
0.07℃-in²/w
|
0.08℃-in²/w
|
0.9℃-in²/w
|
0.1℃-in²/w
|
0.16℃-in²/w
|
0.2℃-in²/w
|
|
@681pis
|
0.42℃-in²/w
|
0.51℃-in²/w
|
0.57℃-in²/w
|
0.66℃-in²/w
|
0.95℃-in²/w
|
1.07℃-in²/w
|
|
Volume Resistivity
|
11*10
-4
ohm-cm
|
11*10
-4
ohm-cm
|
11*10
-4
ohm-cm
|
11*10
-4
ohm-cm
|
11*10
-4
ohm-cm
|
11*10
-4
ohm-cm
|
|
Outgassing TML
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
0.15%
|
|
Outgassing CVCM
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
0.09%
|
|
TYPE
|
DSN60200
|
DSN60500
|
DSN60800
|
DSN61000
|
DSN62000
|
DSN63000
|
|
Carbon Content
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
99.2% ~ 99.5%
|
|
Color
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
Dark Grey
|
|
Thickness (mm)
|
0.2
|
0.5
|
0.8
|
1.0
|
2.0
|
3.0
|
|
Thickness Tolerance (mm)
|
±0.03
|
±0.05
|
±0.08
|
±0.1
|
±0.15
|
±0.15
|
|
Density (g/cm³)
|
1.2±0.1
|
1.1±0.1
|
1.1±0.1
|
1.0±0.1
|
1.0±0.1
|
1.0±0.1
|
|
Hardness (shore A)
|
85
|
85
|
85
|
85
|
85
|
85
|
|
Tensile Strength (psi)
|
650
|
650
|
650
|
650
|
650
|
650
|
|
ULFlammability Rating
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
94VO
|
|
Temperature Range
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
-40℃to400℃
|
|
Thermal Conductivity(X-Y axis)
|
250-350 W/m.K
|
250-350 W/m.K
|
200-300 W/m.K
|
100-200 W/m.K
|
100-200 W/m.K
|
100-200 W/m.K
|
|
Thermal Conductivity (Z axis)
|
7~10 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
3~5 W/m.K
|
|
Thermal Resistance @100pis
|
0.25℃-in²/w
|
0.37℃-in²/w
|
0.5℃-in²/w
|
0.6℃-in²/w
|
0.77℃-in²/w
|
0.73℃-in²/w
|
|
@681pis
|
1.16℃-cm²/w
|
1.3℃-cm²/w
|
1.58℃-cm²/w
|
1.7℃-cm²/w
|
1.93℃-cm²/w
|
1.88℃-cm²/w
|
|
Volume Resistivity
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
11*10-4
ohm-cm
|
|
Outgassing TML
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
0.23%
|
|
Outgassing CVCM
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
0.16%
|
