Quick Details
-
Piston rod:
-
10-1500mm ,tempering, plated nickel, Chrome or ceramic
-
Hydraulic Cylinder Pressure:
-
5-300Mpa
-
Working medium:
-
Hydraulic Oil
-
Hydraulic Cylinder Material:
-
Carbon steel, Alloy steel, Stainless steel
-
Hydraulic Cylinde Coating:
-
Sandblasting, primer paint, middle paint, finish paint
-
Available Temperature:
-
-40℃ to +300℃
-
Color:
-
Customized as client request
-
Hydraulic Cylinder Seals:
-
Parker,Merkel,Hallite
-
Mounting Style:
-
Earrings, flange, foot mounting, screw thread
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Boli
-
Product Name:
-
CAT E345 320C Excavator Hydraulic Oil Cylinder
-
Piston rod:
-
10-1500mm ,tempering, plated nickel, Chrome or ceramic
-
Hydraulic Cylinder Pressure:
-
5-300Mpa
-
Working medium:
-
Hydraulic Oil
-
Hydraulic Cylinder Material:
-
Carbon steel, Alloy steel, Stainless steel
-
Hydraulic Cylinde Coating:
-
Sandblasting, primer paint, middle paint, finish paint
-
Available Temperature:
-
-40℃ to +300℃
-
Color:
-
Customized as client request
-
Hydraulic Cylinder Seals:
-
Parker,Merkel,Hallite
-
Mounting Style:
-
Earrings, flange, foot mounting, screw thread

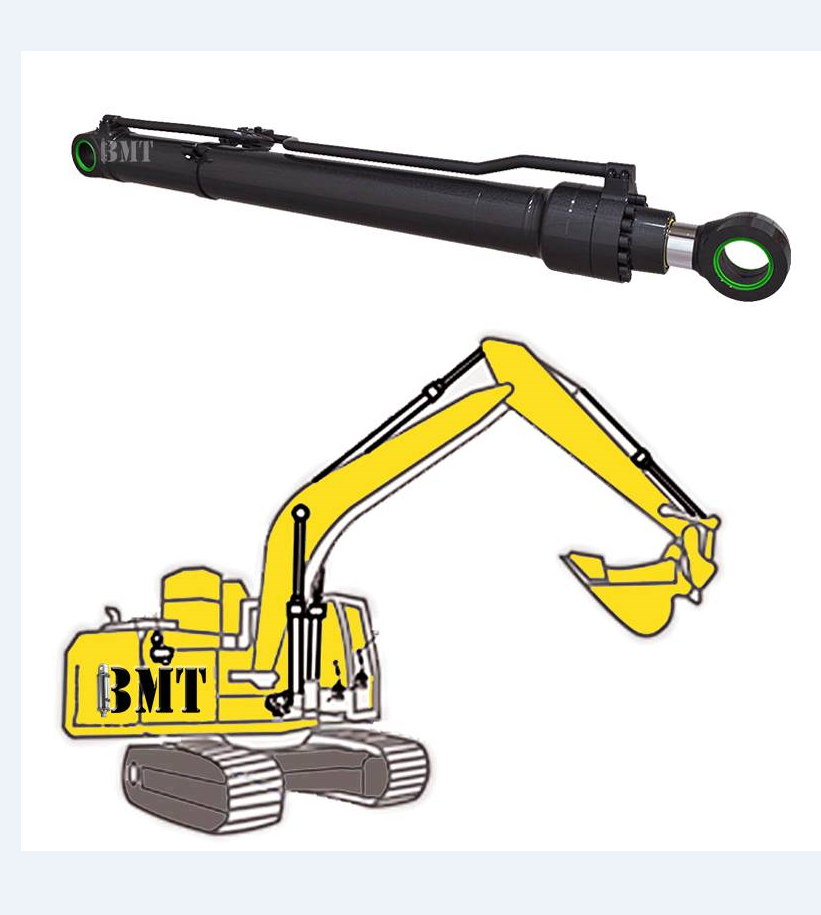

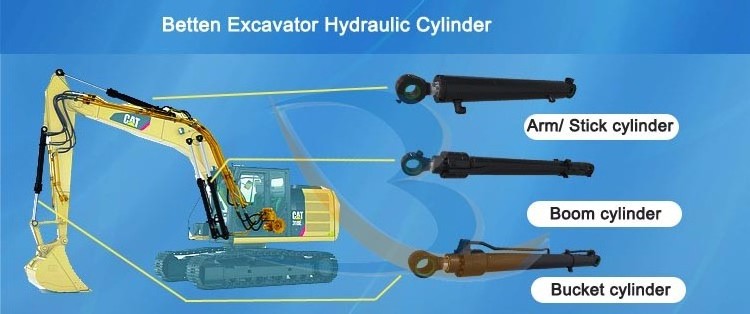

Excavator Arm/boom/bucket Hydraulic Cylinder
Betten has the advanced Excavator Arm/boom/bucket hydraulic Cylinder R&D center and workshop equipped with art of state manufacturing machines and testing benches, we have done enormous researches on cushioning, welding, plating, sealing, materials and so on, that's why Betten become best partners for many world famous excavator manufacturers. Every year, Betten provides hundreds of thousands high quality Excavator Arm/boom/bucket hydraulic Cylinders to customers all over the world.
We can make full size excavator cylinders from mini excavators to extremely large Caterpillar excavators including Excavator Arm/boom/bucket hydraulic Cylinder / steering cylinders.

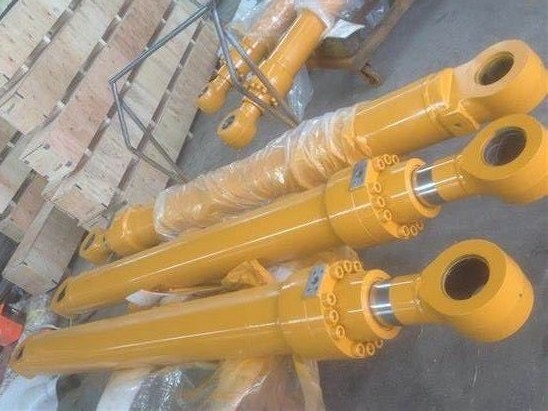

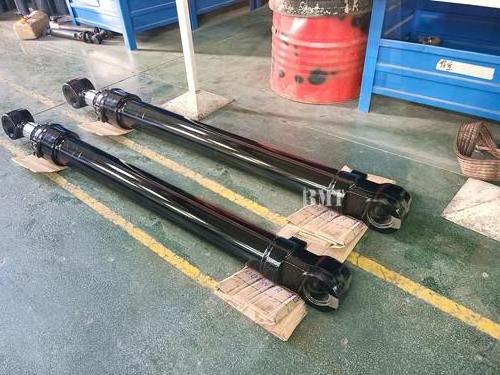

Details Images
Application
Technical Data
|
Product
|
Excavator Hydraulic Cylinder
|
|
Stroke for oil cylinders
|
50mm-16000mm
|
|
Inside Cylinder Tube Dia.
|
40 - 1000 mm (1.5 - 40 inch)
|
|
Liner material
|
copper (prolongs the life cycle of cylinder)
|
|
Hydraulic cylinder tube material
|
Carbon steel, Alloy steel, Stainless steel
|
|
|
12 - 500 mm (1/2 - 20 inch)
Hydraulic Cylinder Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
|
|
Chome Plated
|
Cr, Ni or Ceramic
|
|
Design Pressure
|
Max 700 bar (10150 PSI)
|
|
Weight
|
Max 60 tons
|
|
Valves
|
SUN (USA),or famous Chinese brand with same quality to PARKER
|
|
Seals Type
|
PARKER (USA), MERKEL (Germany) or NOK (Japan)
|
|
Liner material
|
copper (prolongs the life cycle of cylinder)
|
|
Bearings
|
LONGXI (China) or SKF
|
|
Painting
|
follow with customer requirement or 3-coat marine painting
|
|
Certificate
|
DNV, ABS, Lloyds, BV, GL, KR, NK, RINA, RS and CCS
|
|
Application
|
Engineering machinery (Excavator/ Forklift/ Cranes/ Tipper truck,etc), mine, metallurgy, shipping, water conservancy, etc.
|

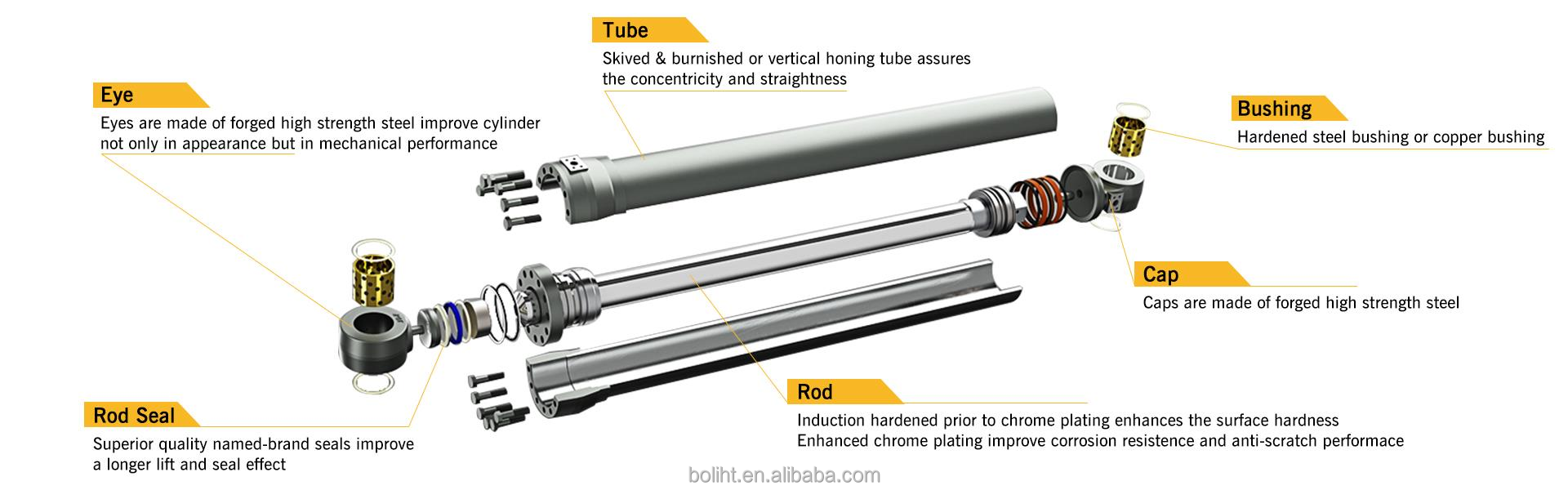

Main Features
Our factory
Betten Hydraulic-Built Cylinders to Fit Your Needs
With the fast development in the past 20 years, we have gained much experience and technology in making various types of Tractor hydraulic cylinder with our expert team. Our products are widely used in equipment such as toyota machine tool, metallurgical equipment, forging machine, kiln equipment, brick machine, plastic machine, car manufacturing machine, construction equipment for road and bridge, wielding machine, port facilities, test machine, fully auto line and we have gained a lot of world famous customer like XCMG, LIUGONG Machinery, Chalco,BOSCH, Haier, SAINT-GOBAIN, Shanghai Boiler, HTC etc.
Our Service
Package details
Package
1- one layer of anti-rust oil
2- 2 or 3 layers of thick protection film
Plywood case (oversize cylinder will be packed with steel frame)
1- one layer of anti-rust oil
2- 2 or 3 layers of thick protection film
Plywood case (oversize cylinder will be packed with steel frame)
