Quick Details
-
Brand Name:
-
HEDY or OEM
-
Model Number:
-
HD4CH12V
-
Output Frequency:
-
N/A
-
Output Current:
-
4A
-
Efficiency(Typ.):
-
86%
-
Input inrush Current (Typ.):
-
40A/220VAC
-
Voltage Adj. Range:
-
11.4~15.75V
-
Voltage Tolerance:
-
±2.0%
-
Over load:
-
110~200% rated output power
-
Ripple & Noise (max.):
-
120mVp-p - 150mVp-p
-
Input frequency Range:
-
47~63HZ
-
Leakage Current:
-
<2mA / 240VAC
Quick Details
-
Input Voltage:
-
150~285VAC, 150~285VAC
-
Output Voltage:
-
12V/13.5V/15V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HEDY or OEM
-
Model Number:
-
HD4CH12V
-
Output Frequency:
-
N/A
-
Output Current:
-
4A
-
Efficiency(Typ.):
-
86%
-
Input inrush Current (Typ.):
-
40A/220VAC
-
Voltage Adj. Range:
-
11.4~15.75V
-
Voltage Tolerance:
-
±2.0%
-
Over load:
-
110~200% rated output power
-
Ripple & Noise (max.):
-
120mVp-p - 150mVp-p
-
Input frequency Range:
-
47~63HZ
-
Leakage Current:
-
<2mA / 240VAC
Welcome
Product Description

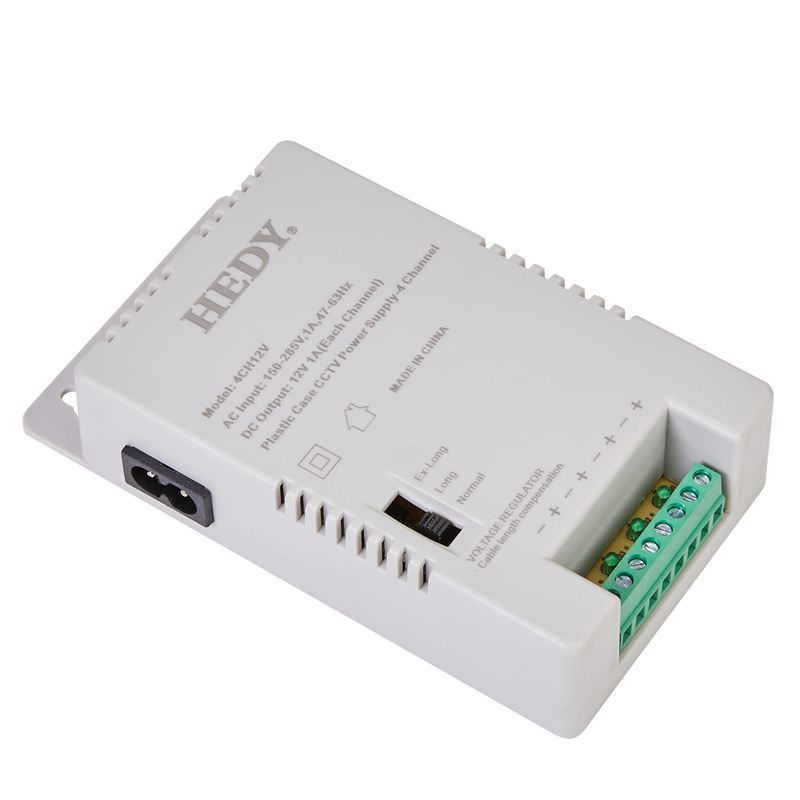

| Model | 4CH12V | |||
| Output | DC Voltage(Selected by switch) | 12V | 13.5V | 15V |
| Rated Current | 4A | 3.55A | 3.2A | |
| Current Range | 0~4A | 0-3.55A | 0~3.2A | |
| Rated Power | 48W | |||
| Ripple & Noise (max.) | 120mVp-p | 135mVp-p | 150mVp-p | |
| Voltage Range | 11.4~12.6V | 12.82~14.17V | 14.25~15.75V | |
| Line Regulation | ±0.5% | ± 0.5 % | ± 0.5 % | |
| Load Regulation | ± 0.5 % | ± 0.5 % | ± 0.5 % | |
| Setup,Rise time | 2500ms,15ms at full load | |||
| Hold Up Time(Typ.) | 25ms at full load | |||
| Input | Voltage Range | 150~285VAC | ||
| Frequency Range | 47~63HZ | |||
| Efficiency(Typ.) | 86% | 86% | 86% | |
| AC Current (Typ.) | 1A/220VAC | |||
| Inrush Current (Typ.) | Cold Start:40A/220VAC | |||
| Leakage Current | <2mA / 240VAC | |||
| Protection | Over Load | 110~200% rated output power | ||
| Protection type: Shut down O/P,recovers automatically | ||||
| Over Current | 110~200% rated output current | |||
| Protection type: Shut down O/P,re-power on to recover | ||||
| Short circuit | Protection type: Shut down O/P,recovers automatically after fault removed | |||
| Environment | Working Temperature | -20~+45°C | ||
| Working Humidity | 20~90% RH Non-condensing | |||
| Storage temp.& humidity | -20~+85°C, 10~95%RH | |||
| Temp. coefficient | ±0.03%/°C (0~50°C) | |||
| Vibration | 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes | |||
| Safety & EMC | Safety Standards | UL60950-1 standard | ||
| Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| Others | MTBF | 10000hrs MIL-HDBK-217F (25°C) | ||
| Dimension | 144*80*33 mm (L*W*H) | |||
| Weight | 200g/pc | |||
| Note | 1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature. | |||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | ||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
| 4. Derating may be needed under low input voltages. | ||||
