Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JIECHUANG
-
Model Number:
-
JIECHUANG
-
Mould material:
-
Aluminum A356
-
Design software:
-
NX_UG ,Solidworks
-
Surface treatment:
-
Polishing, sand blasting, telfon coating
-
Mould life:
-
5000 Shots
-
Plastic material:
-
LLDPE, MDPE,HDPE, Cross linked PE
-
Wall thickness:
-
8-10mm
-
Product Name:
-
rotational moulding outdoor furniture
Quick Details
-
Application:
-
Bathroom
-
Design Style:
-
Scandinavian
-
Material:
-
Plastic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JIECHUANG
-
Model Number:
-
JIECHUANG
-
Mould material:
-
Aluminum A356
-
Design software:
-
NX_UG ,Solidworks
-
Surface treatment:
-
Polishing, sand blasting, telfon coating
-
Mould life:
-
5000 Shots
-
Plastic material:
-
LLDPE, MDPE,HDPE, Cross linked PE
-
Wall thickness:
-
8-10mm
-
Product Name:
-
rotational moulding outdoor furniture
Product Description

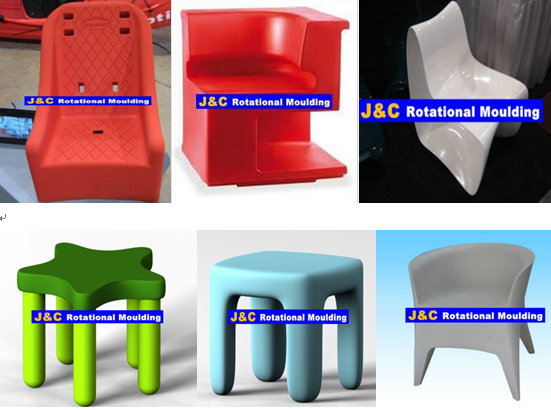

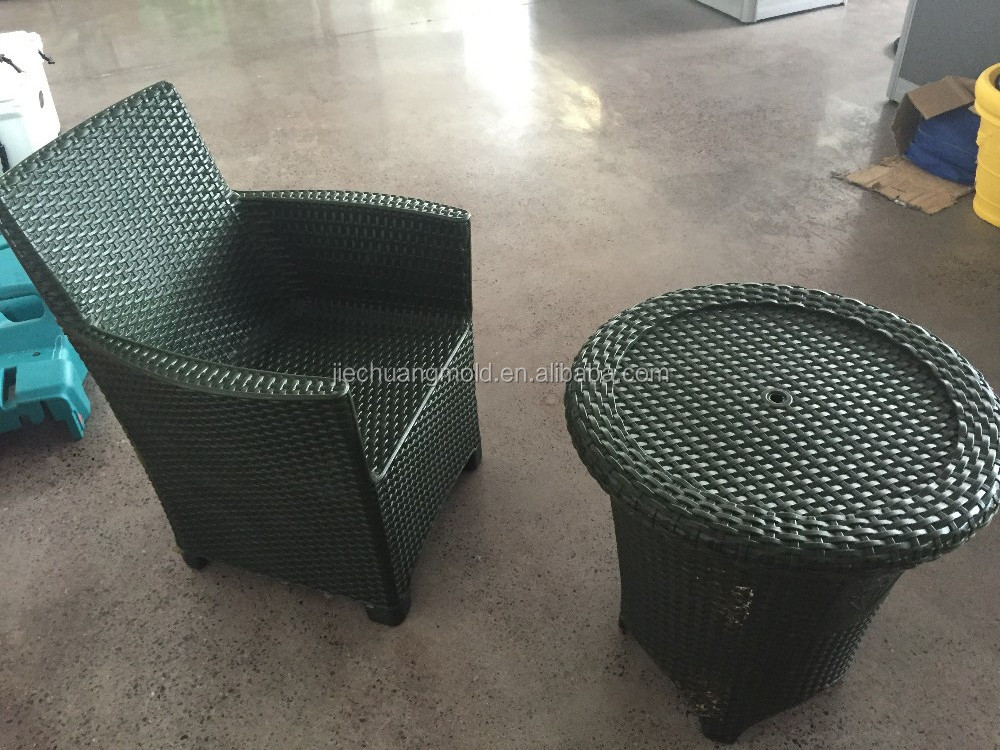

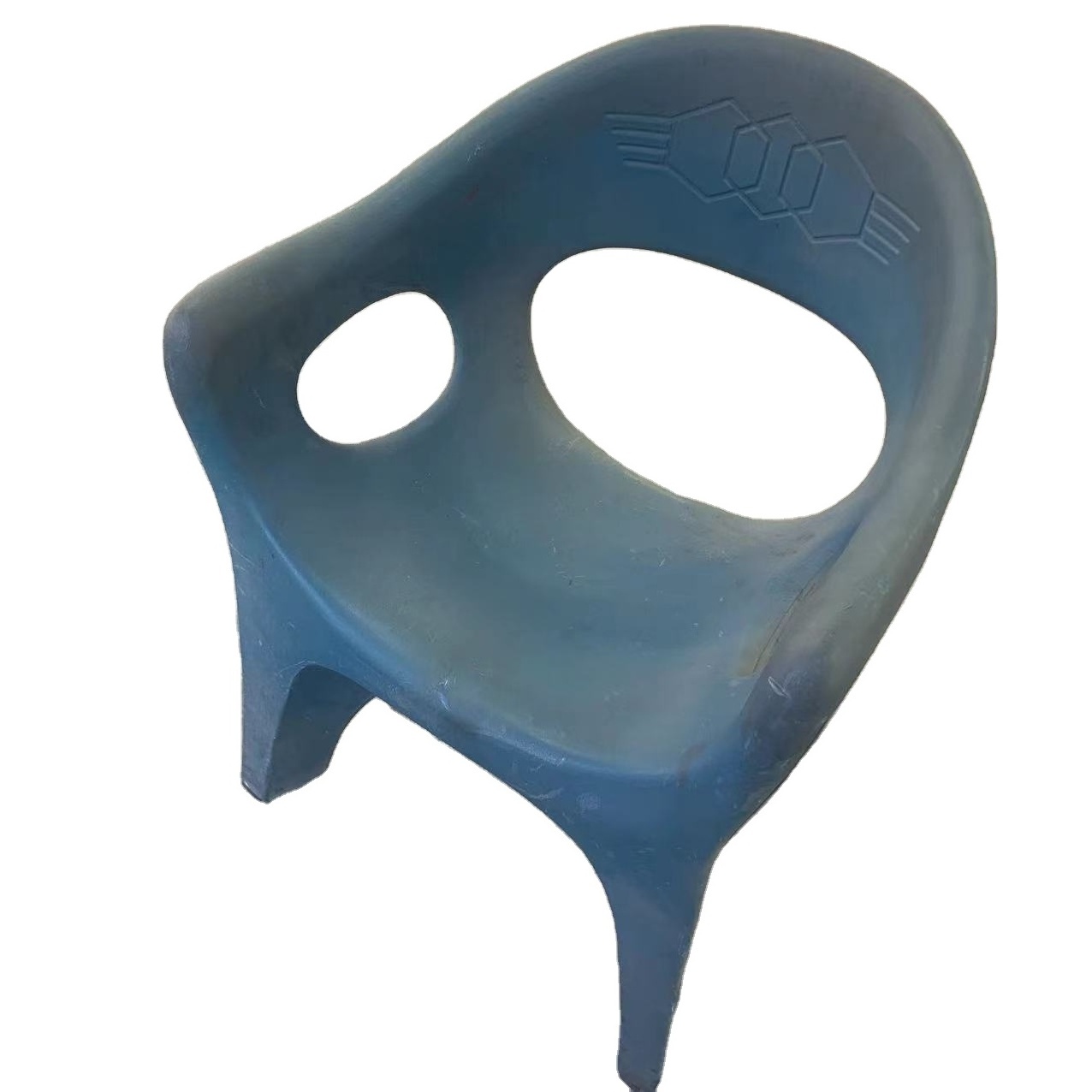

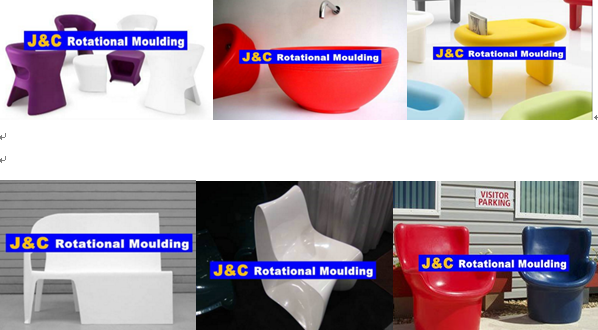

Products Show
Advantage
Design flexibility allowing complex geometry
· Cost saving - Projects of 50 to 30,000 are ideal
· Molds cost less then other molding methods
· Parts offer strength and durability
· Stress free parts
· Short lead times on production
· Consistent wall thickness
· Limited materials waste
· Small to very large hollow parts can be produced
· Part surfaces can have various textures
Our Company
Factory
Our Factory
Office building
Workshop
Our Team
MOULD PROCESS
Design
Foam
Die casting
CNC processing
Polish
Mould framing
Mould test
Qualified sample
Package
Our Service
1. Design & Engineering Services
Beginning a new project starts with a solid design concept. Our in-house Design & Engineering Department will help advise and manage your project all the way to a produced rototmolded part.
Whether your project is a rough idea or a 3D model, we believe in developing a partnership early on with the customer and strive to reduce lead times and so both parties benefit from rotational molding.
2. Rotational Molding Design Guides
·
Minimum wall separation 5x wall thickness (a)
· Minimum wall separation 3x wall thickness (b)
· Uniform wall thickness ± 20% (c)
· ±10% is considered precise tolerance (c)
· Wall thickness .090" to 1.00" (c)
·
Different wall thickness can be produced based on functional requirements
· Large flat areas need a crown or ribs (d)
· Corners need minimum radius of 3/16"(e)
·
Structural strength
· Reinforcing ribs - average proportions
· Height 4x wall thickness (f)
· Width 5x wall thickness (g)
·Kiss-off ribbing (h)
·
Part Finishing and Secondary Operations
Note: Design Guide information is based on Linear Low Density Polyethylene (LLDPE) other materials tolerance can vary.
3. Cast Tooling Pattern
When your design is finalized the pattern production begins. Most commonly patterns are CNC machined from the 3D model, but other options are available.
After the pattern is reviewed and signed-off on, the followers for determining the parting lines are constructed. Next, the pattern goes through the sand ramming process creating the cope and drag. Then our Tooling Department is ready to pour the tool.
4.Rotational Molding Plastic Parts
Rotational Molding, also called rotomolding or rotocast, is a thermoplastic process for producing hollow parts by placing powder or liquid resin into a hollow mold and then rotating that tool bi-axially in an oven until the resin melts and coats the inside of the mold cavity. Next the tool is cooled and the part is removed from the mold.
Four steps in manufacturing a rotational molded part
1. Fill the mold with a polymer material
2. Heat tool in oven to melt material
3. Cool tool to solidifies the part
4. Remove part from the tools
Our Company
Shanghai Jiechuang Mold Manufacturing Co.,Ltd.Combined professional experience in varied and demanding rotational molding applications, exceeding customer's expectations both nationally and internationally for over 10+ years.
We will provide you with a true one-stop shop for all of your product design, prototyping, tooling and full-scale manufacturing needs.
We offer significant differences compared to other molders including:
· Project Management
· Design and Engineering
· Research and Development
· Rapid Prototyping
· In-house Cast Aluminum Tooling
· Rotational Molding (Rotocasting)
·
Multi layer Part
· Molded-in Inserts
· Mold In Graphics
· In Mold Painting
· Secondary Operations
· Post Mold Finishing
· Light Assembly
· Mold On Graphics
· Post Mold Painting
· Product Testing
· Graphic Design and Layout
· Packaging and Shipping
