Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SH-LWY
-

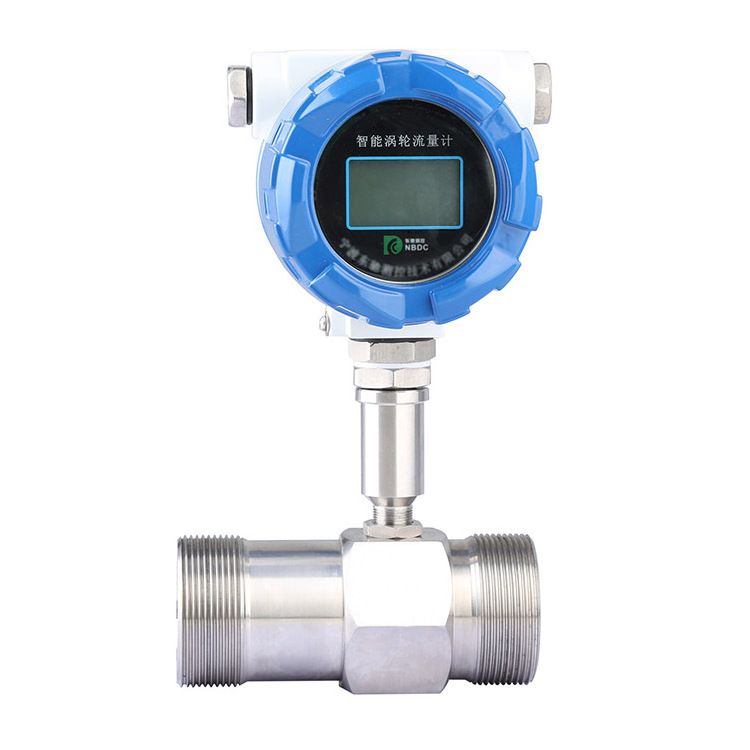

Product Name:
-
Liquid turbine flow meter
-
Medium:
-
Liquid
-
Power supply:
-
12VDC,24VDC or battery powered (3.2V 10AH)
-
Accuracy:
-
0.2%/ 0.5%/ 1.0%
-
Application:
-
Liquid Flow Measurement
-
Output:
-
4-20mA/pulse
-
Connection:
-
Flange Thread
-
Material:
-
Aluminum Alloy/Stainless steel
-
Keywords:
-
Liquid Control Flow Meter
-
Medium temperature:
-
-20℃~+120℃
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters, Turbine meters
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
SH-LWY
-
Product Name:
-
Liquid turbine flow meter
-
Medium:
-
Liquid
-
Power supply:
-
12VDC,24VDC or battery powered (3.2V 10AH)
-
Accuracy:
-
0.2%/ 0.5%/ 1.0%
-
Application:
-
Liquid Flow Measurement
-
Output:
-
4-20mA/pulse
-
Connection:
-
Flange Thread
-
Material:
-
Aluminum Alloy/Stainless steel
-
Keywords:
-
Liquid Control Flow Meter
-
Medium temperature:
-
-20℃~+120℃
Product Description
|
Measuring medium
|
liquid (no corrosion to 304 or 316 stainless steel, 2Cr13 steel or nickel and diamond spar Al2O3)
|
|

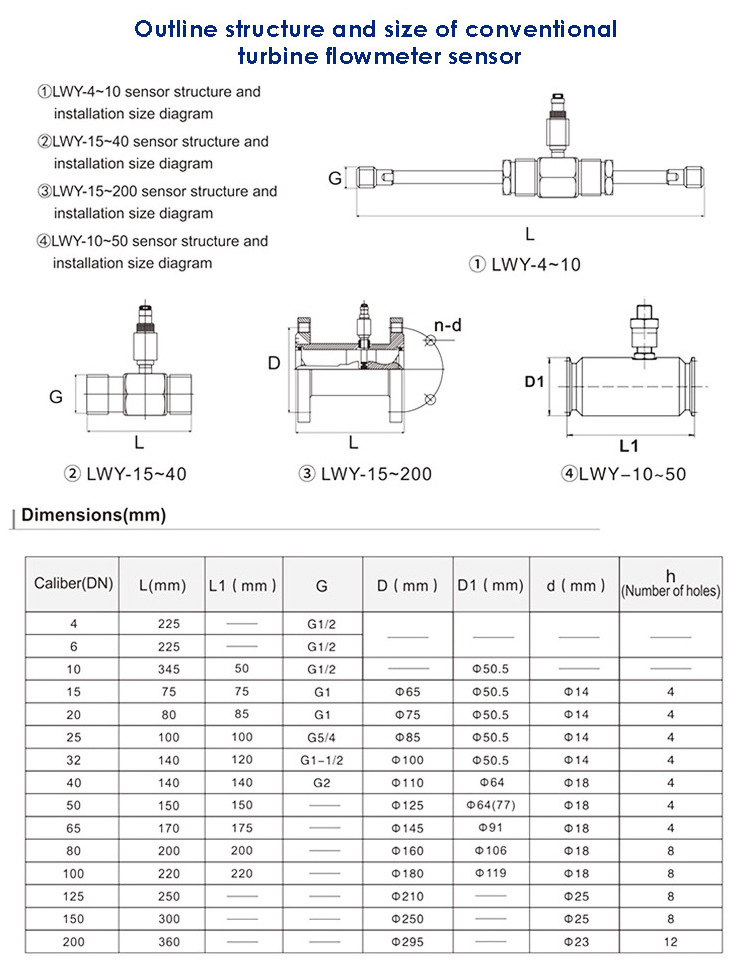

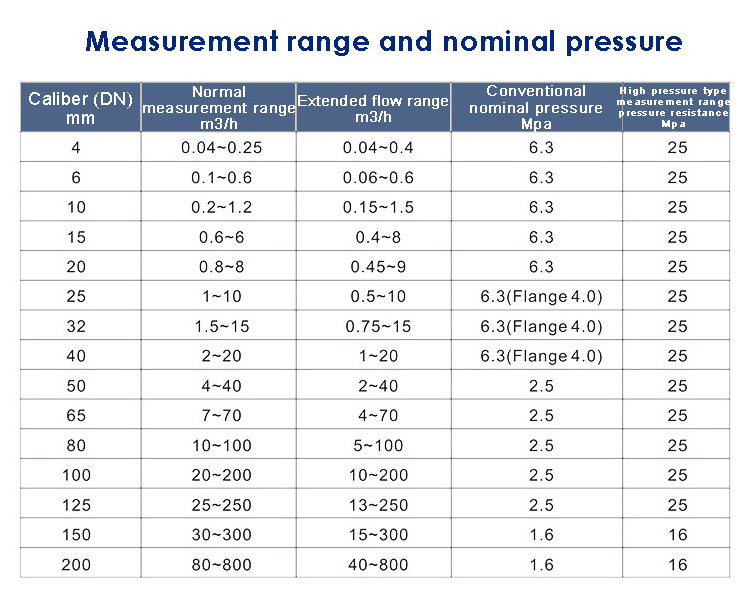

Caliber(DN)mm
|
Threaded connection：4、6、10、15、20、25、32、40
Flange connection：(25)、(32)、(40)、50、65、80、100、125、 150、200 (DN25~40 are commonly threaded connection, for flange connection, special orders are required)
|
|
Accuracy grade
|
grade 1 and grade 0.5 (The specific flow rate can reach 0.2 level )
|
|
Repeatability
|
±0.2% of indicated value
|
|
Medium temperature
|
-20℃~+120℃
|
|
Applicable environment
|
Temperature: -20℃~+55℃， Humidity: 5~95%
|
|
Protection level
|
IP67
|
|
Explosion-proof grade
|
Exm ll CT6 Exd ll BT6
|
|
Power supply
|
12VDC,24VDC or battery powered (3.2V 10AH)
|
|
Straight pipe section requirements
|
Flowmeter upstream ≥=20DN downstream ≥5DN
|
A wide variety of applications: including effluent measurement, environmental monitoring, fire hydrant testing, heating and cooling water distribution, pump, compressor and boiler performance testing.
