Quick Details
-
Place of Origin:
-
Chongqing, China
-
Dimension(L*W*H):
-
580*385*400 mm
-
Weight:
-
70
-
Rated power/speed:
-
13KW
-
horse power:
-
19HP
-
Speed (rpm):
-
3000/3600
-
Rated power (KW):
-
12/13KW
-
Product name:
-

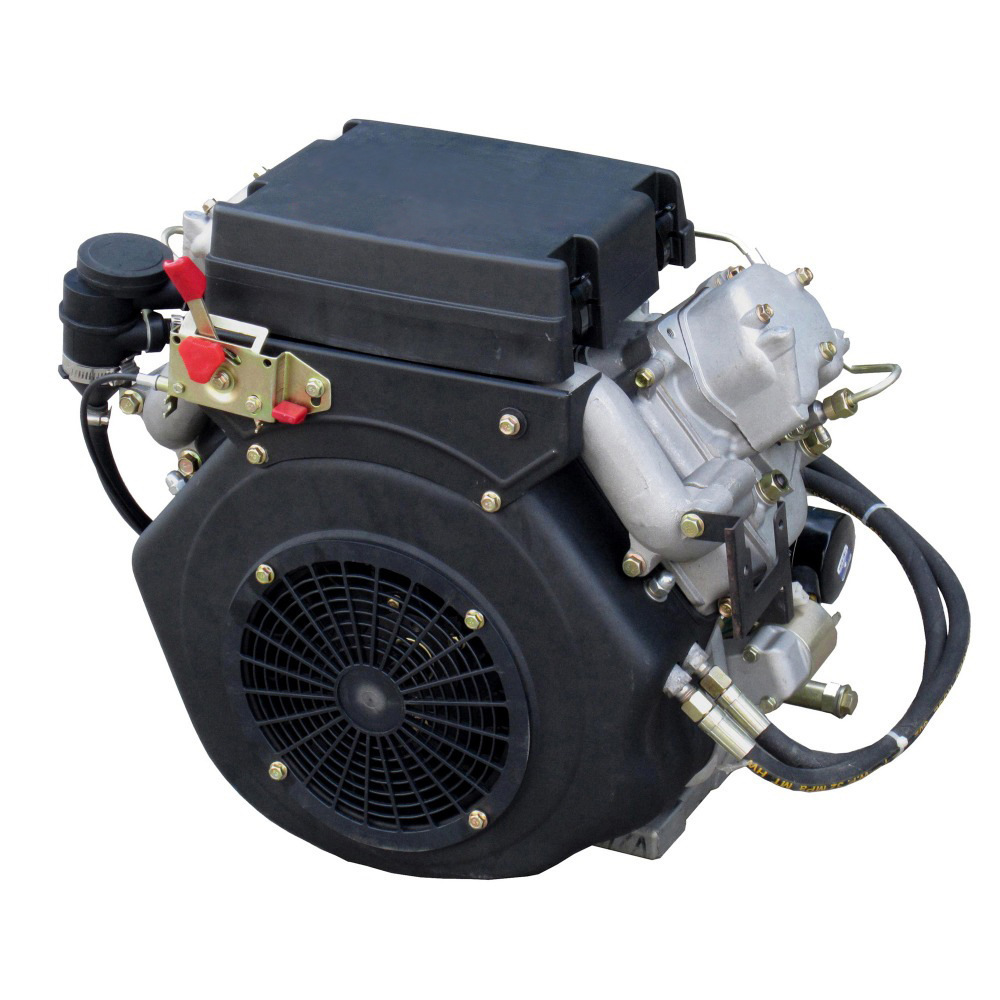

2V88F 13kw 19HP 4 stroke air cooled 2 cylinder diesel engine
-
Certification:
-
ISO
Quick Details
-
Displacement:
-
876CC
-
Emission Standard:
-
Other
-
Power:
-
13KW
-
Place of Origin:
-
Chongqing, China
-
Dimension(L*W*H):
-
580*385*400 mm
-
Weight:
-
70
-
Rated power/speed:
-
13KW
-
horse power:
-
19HP
-
Speed (rpm):
-
3000/3600
-
Rated power (KW):
-
12/13KW
-
Product name:
-
2V88F 13kw 19HP 4 stroke air cooled 2 cylinder diesel engine
-
Certification:
-
ISO
| Model | KK2V88F | |
| Type | 2-cylinder, V-type, 4-stroke, air-cooled | |
| BORE*STROKE | 88*72mm | |
| Displacement | 875cc | |
| Compression Ratio | 20:1 | |
| Rated speed (r/min) | 3000 | 3600 |
| Rated power (KW) | 12 | 13 |
| Max. power (KW) | 13 | 14 |
| Fuel tank capacity (L) | 12 | |
| Fuel consumption(L/hr.) | ≤3.2 | |
| Oil capacity (L) | 2.3 | |
| Starting method | Electric start | |
| Output Shaft | crankshaft / camshaft | |
| Fuel | diesel | |
| Oil trademark | CD grade or SAE10W-30 15W-40 | |
| Net weight (KG) | 70 ( Electric start ) | |
| Dimension (L*W*H) (mm) | 580*385*400 | |
