Quick Details
-
Injection Rate (g/s):
-
57 g/s
-
Injection Weight (g):
-
3 g
-
Screw diameter (mm):
-
30 mm
-
Weight (KG):
-
900 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
215 mm
-
Model Number:
-
LY-250ST-D
-
Brand Name:
-
LIYI
-
Power (kW):
-
2.3 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

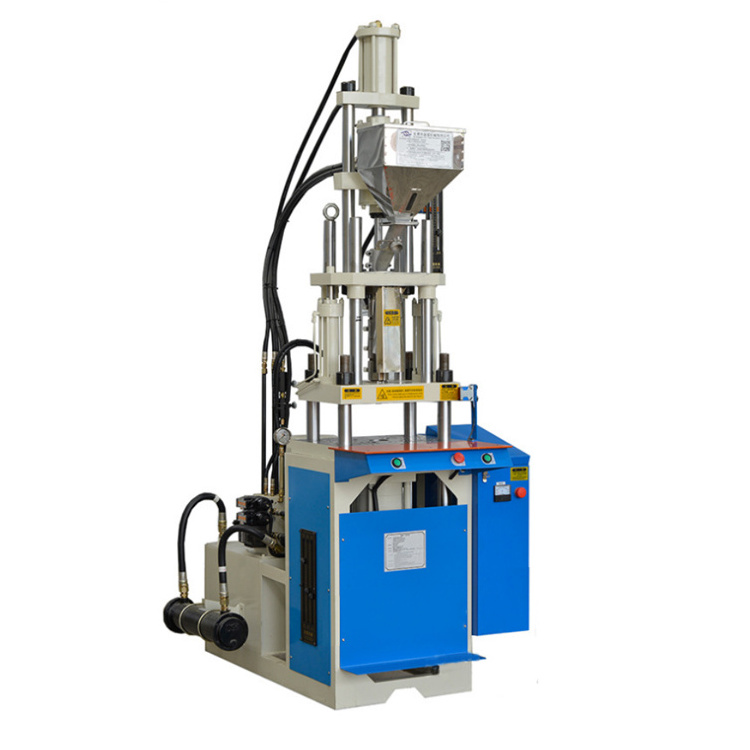

35T desktop rubber injection molding machine price with high quality
-
Screw Diameter:
-
26mm,28mm,30mm
-
Machine dimension(L*W*H):
-
1.4*1.05*2.3m
-
Motor power:
-
3.75/5HP
-
Screw Speed Max:
-
0-205rpm
-
Machine weight:
-
1050kg
-
Ceritifications:
-
CE,ISO9001:2015
Quick Details
-
Ejector Stroke(mm):
-
215 mm
-
Ejector Force(kN):
-
30 kN
-
Theoretical Shot Volume(cm³):
-
74 cm³
-
Injection Rate (g/s):
-
57 g/s
-
Injection Weight (g):
-
3 g
-
Screw diameter (mm):
-
30 mm
-
Weight (KG):
-
900 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
215 mm
-
Model Number:
-
LY-250ST-D
-
Brand Name:
-
LIYI
-
Power (kW):
-
2.3 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
yes
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
35T desktop rubber injection molding machine price with high quality
-
Screw Diameter:
-
26mm,28mm,30mm
-
Machine dimension(L*W*H):
-
1.4*1.05*2.3m
-
Motor power:
-
3.75/5HP
-
Screw Speed Max:
-
0-205rpm
-
Machine weight:
-
1050kg
-
Ceritifications:
-
CE,ISO9001:2015
Product Description
Specifications
| Screw Diameter | Mm | 26 | 28 | 30 | |
| Injection Pressure | kg/cm² | 1530 | 1278 | 886 | |
| Theoretical Shot Volume | cm³ | 61 | 70.8 | 81 | |
| Max.Shot Weight(ps) | g | 56 | 64 | 74 | |
| Safe Shot Weight(ps) | OZ | 2 | 2.27 | 2.6 | |
| Max.Shot Weight(ps) | cm³/sec | 57 | 66 | 75.5 | |
| Injection Rate | mm | 115 | |||
| Screw Speed Max. | rpm | 0-205 | |||
| Nozzle Comtact Force | Tons | 4.45 | |||
| Nozzle Retraction Stroke | mm | 170 | |||
| Number of Temperature Control | 3 | ||||
| Platen Size | mm | 540*380 | |||
| Distance between tie bere | mm | 375*205 | |||
| Min.Mold Height | mm | 158/58 | |||
| Opening Stroke | mm | 180 | |||
| Max.Open Daylight | mm | 338/238 | |||
| Ejetor Force | Tons | 1.3 | |||
| Ejetor Stoke | mm | 35 | |||
| Max.Hydaulic Pressure | kg/cm² | 140 | |||
| Pump Output | l/min | 34.5 | |||
| Oil Resservoir Capacity | l | 100 | |||
| Cooling Waer Consumption | l/hr | 400-600 | |||
| Pump Motor Power | KW/HP | 3.75/5.5HP | |||
| Berrel Heating Power | KW | 2.4 | |||
| Total Electricity | KW | 6.3 | |||
| Packing Weight | Kg | 1150kg | |||
