Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
WINYOU POWER
-
Dimension(L*W*H):
-
435x365x420mm
-
Weight:
-
14
-
Rated power/speed:
-
3kw/3.2kw/3.8kw/4.0kw
-
BorexStroke (mm):
-
68x45/70x45/70x51/70x58
-
Compression Ratio:
-
8.5:1/8.4:1
-
Maximum Power:
-
4.0kw/4.3kw/5.1kw/5.5kw
-
Rated power:
-
3kw/3.2kw/3.8kw/4.0kw
-
Max Torque:
-
8N.m/9.0N.m/10.5N.m/11.0N.m
-
Ignition system:
-
Contactless transistor ignition(TCI)
-
Air cleaner type:
-
Semi-dry air filter
-
Fuel Tank Capacity:
-
1.5L
-
Fuel Consumhption:
-
≤420g/kw.h
-
Engine oil capacity:
-
0.6L
Quick Details
-
Displacement:
-
163cc/173cc/196cc/223cc
-
Emission Standard:
-
Euro 3
-
Power:
-
6HP, 7HP, 6.5HP, 7.5HP
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
WINYOU POWER
-
Dimension(L*W*H):
-
435x365x420mm
-
Weight:
-
14
-
Rated power/speed:
-
3kw/3.2kw/3.8kw/4.0kw
-
BorexStroke (mm):
-
68x45/70x45/70x51/70x58
-
Compression Ratio:
-
8.5:1/8.4:1
-
Maximum Power:
-
4.0kw/4.3kw/5.1kw/5.5kw
-
Rated power:
-
3kw/3.2kw/3.8kw/4.0kw
-
Max Torque:
-
8N.m/9.0N.m/10.5N.m/11.0N.m
-
Ignition system:
-
Contactless transistor ignition(TCI)
-
Air cleaner type:
-
Semi-dry air filter
-
Fuel Tank Capacity:
-
1.5L
-
Fuel Consumhption:
-
≤420g/kw.h
-
Engine oil capacity:
-
0.6L
Details Images
Equipped to different machine could display their own function , such as generator, water pump,tiller etc.
Here should have one that best for your demand!
Any question and cooperation is welcome!

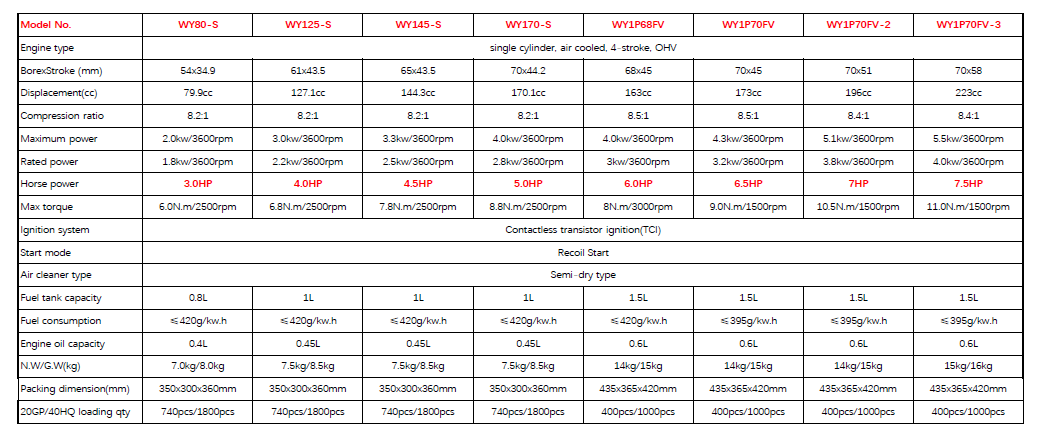

Product Parameter
Personalized Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Customized service.
* View factory.
After-Sales Service
* Training how to instal and use the machine.
* Engineers available to service machinery overseas.
* Free spare parts during warranty.
Packing and Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
|
PACKAGE
|
|
|
|
|
|
WY1P68FV
/WY1P70FV-1
/WY1P70FV-2
|
WY1P70FV-3
|
|
|
SIZE
|
435x365x420mm
|
|
|
|
N.W/G.W(kg)
|
14kg/15kg
|
15kg/16kg
|
|
|
PACKING DETAILS
|
Standerd 5 layers corrugated paper carton box outside. Meantime, specification ,tiller spare parts etc. inside
|
|
|
|
Delivery
|
|
|
|
TRADE TERM
|
FOB, CFR, CIF
|
|
|
Normally within 30 days for container order after receiving the 30% down payment from the Buyer by T.T. We usually don't accept the sample order, every detail should be checked without problem before palce order. As you know, several pcs of order have no profit for a factory.
|
|
|
Recommend Products
Power Till
3TG-85 7HP
3 inches Slurry Water Pump
80WLJ / 1200L/min
10kw Gasoline Generator
WY10GF-4/10KW
Certifications
Why Choose Us
Chongqing Winyou Power CO., LTD.
A manufacturing company runs production of electricity and garden equipment including gasoline and diesel engines, generators, water pumps, lawn mowers, tillers, etc.
Winyou team has been working in this industry for more than a decade, is dedicated to our customers to provide quality and reliability, reliability and value.
Our engineer have made the engine reaearch since 20 years and o
ur tenet is "customer first" and "quality first".
We always pursue real honda standard in reliability and quality,of course including 1 year warranty.
Details of our products have the following characteristics:
Suitable for a variety of environmental standards,be designed perfect and effective,our prodects has been tested by famous lab and issue related certificates, coming with comprehensive manufacturer's warranties and services.
We will not only be a complete range of suppliers for your business, but also a guarantee of quality and strong after-sales support!
