Quick Details
-
Warranty(Year):
-
5-Year
-
Model Number:
-
BB-SDD-60WD1
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC
-
Lamp Luminous Flux(lm):
-
13000lm
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 to +45℃
-
Working Lifetime(Hour):
-
50,000 hours at 25℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBIER / OEM
-
Application:
-
indoor / outdoor
-
Product name:
-

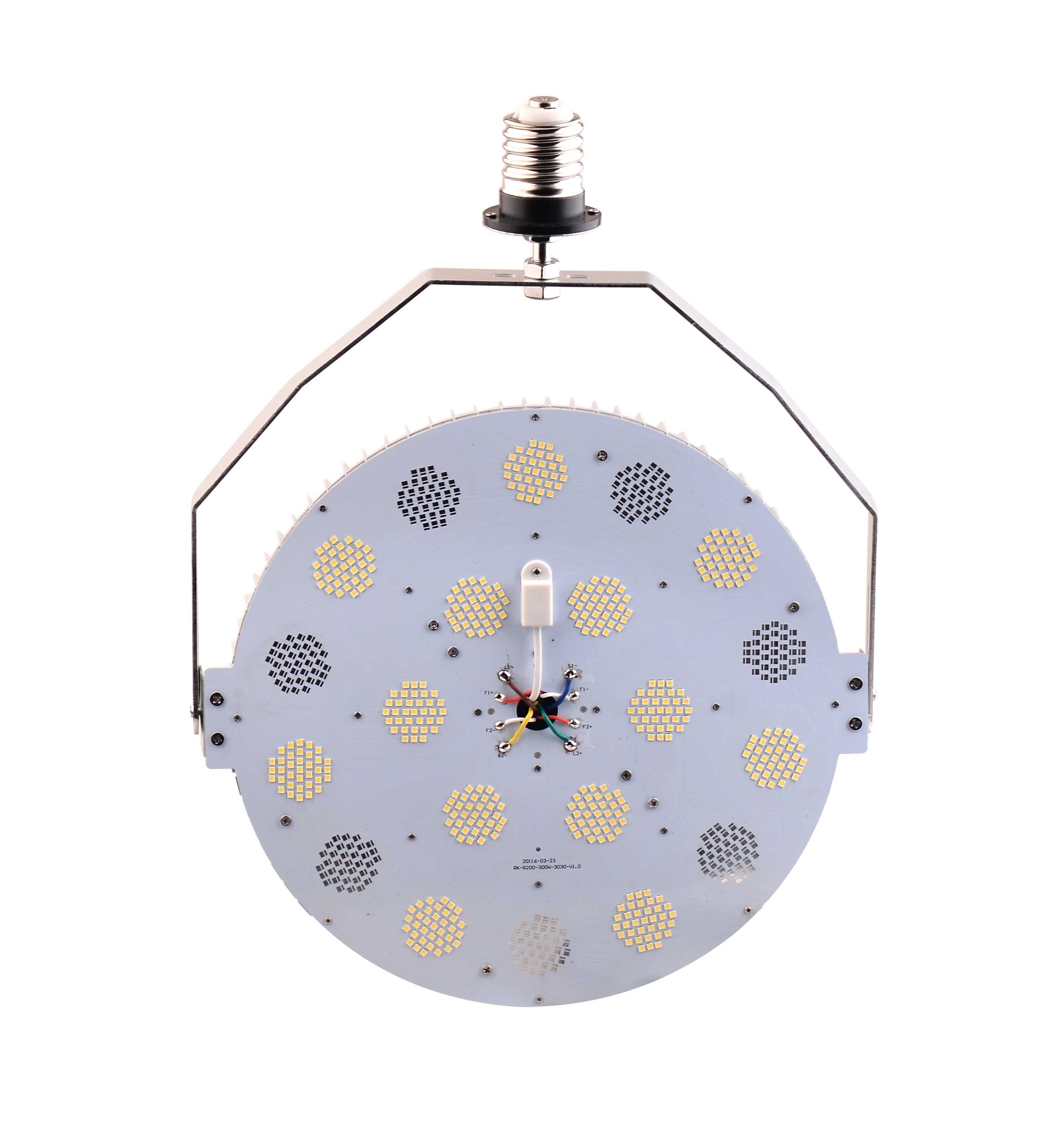

led parking parking garage canopy lighting retrofit 100w
-
Applications:
-
shoebox ,canopy ,wallpack ,high bay fixture
-
Replacement:
-
HPS 200W
-
Base:
-
E40 E39 E27 E26
-
Warranty:
-
5 years
-
CCT:
-
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
-
Beam Angle:
-
120 Deg
-
Dimming:
-
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
-
Luminous Efficacy:
-
>130lm/w
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Luminous Efficacy(lm/w):
-
130
-
Type:
-
Round retrofit kits
-
Warranty(Year):
-
5-Year
-
Model Number:
-
BB-SDD-60WD1
-
Input Voltage(V):
-
100-277VAC/50-60HZ 200-480VAC
-
Lamp Luminous Flux(lm):
-
13000lm
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 to +45℃
-
Working Lifetime(Hour):
-
50,000 hours at 25℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBIER / OEM
-
Application:
-
indoor / outdoor
-
Product name:
-
led parking parking garage canopy lighting retrofit 100w
-
Applications:
-
shoebox ,canopy ,wallpack ,high bay fixture
-
Replacement:
-
HPS 200W
-
Base:
-
E40 E39 E27 E26
-
Warranty:
-
5 years
-
CCT:
-
2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
-
Beam Angle:
-
120 Deg
-
Dimming:
-
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
-
Luminous Efficacy:
-
>130lm/w
| Power | 60W | 80W | 100W | 120W | 150W | 240W | 300W |
| Model | BB-SDD-60WD1 | BB-SDD-80WD1 | BB-SDD-100WD1 | BB-SDD-120WD1 | BB-SDD-150WD1 | BB-SDD-240WD1 | BB-SDD-300WD1 |
| Replacement | HPS 200W | HPS 250W | HPS 300W | HPS 400W | HPS 60WW | HPS 700W | HPS 1000W |
| Luminous Flux | 7800lm | 10400lm | 13000lm | 15600lm | 19500lm | 31200lm | 39000lm |
|
DLC certification
(only -E39)
|
Y | Pending | Y | Pending | Y | Y | Y |
|
BB-SDD-150WD1-HV&BB-SDD-300WD1-HV
|
|||||||
| Light Source | SMD LED | ||||||
| Luminous Efficacy | >130lm/w | ||||||
| Voltage |
(BB-SDD-XXX)100-277VAC/50-60HZ (BB-SDD-XXX-HV)200-480VAC
|
||||||
| CRI | 85 | ||||||
| Operation Temp. | -40 to +45℃ | ||||||
| CCT | 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW | ||||||
| Life Span | 50,000 hours at 25 ℃ | ||||||
| Dimming |
3 in 1 Dimming Driver(1-10VDC,10V PWM signal ,resistance)
|
||||||
| Beam Angle | 120 ° | ||||||
| PF | >0.95 | ||||||
|
Lamp Base
|
E26 / E27 / E39 / E40
|
||||||
| Warranty | 5 Years | ||||||
