Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
700 mm
-
Travel (Y Axis)(mm):
-
150 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARTECH
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2500x3000x1500
-
Power (kW):
-
16
-
Weight (KG):
-
3500
-
Warranty:
-
2 year
-
Warranty of core components:
-
1 year
-
Product name:
-
4 Axis CNC Stone Carving Machine With Vertical Rotary
-
Z axis transmission:
-
ball screw
-
X Y axis transmission:
-
gear rack
-
Spindle:
-
5.5k water cooling spindle
-
Working area:
-
700x150x500mm
-
Control system:
-
NC studio
-
Inverter:
-
Fuling
-
Motor:
-
Yaskawa
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Table:
-
Turntable
-
Certification:
-
CE
-
Marketing Type:
-
New Product
Quick Details
-
Working Table Size(mm):
-
700*150
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
700 mm
-
Travel (Y Axis)(mm):
-
150 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ARTECH
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2500x3000x1500
-
Power (kW):
-
16
-
Weight (KG):
-
3500
-
Warranty:
-
2 year
-
Warranty of core components:
-
1 year
-
Product name:
-
4 Axis CNC Stone Carving Machine With Vertical Rotary
-
Z axis transmission:
-
ball screw
-
X Y axis transmission:
-
gear rack
-
Spindle:
-
5.5k water cooling spindle
-
Working area:
-
700x150x500mm
-
Control system:
-
NC studio
-
Inverter:
-
Fuling
-
Motor:
-
Yaskawa
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Table:
-
Turntable
-
Certification:
-
CE
-
Marketing Type:
-
New Product

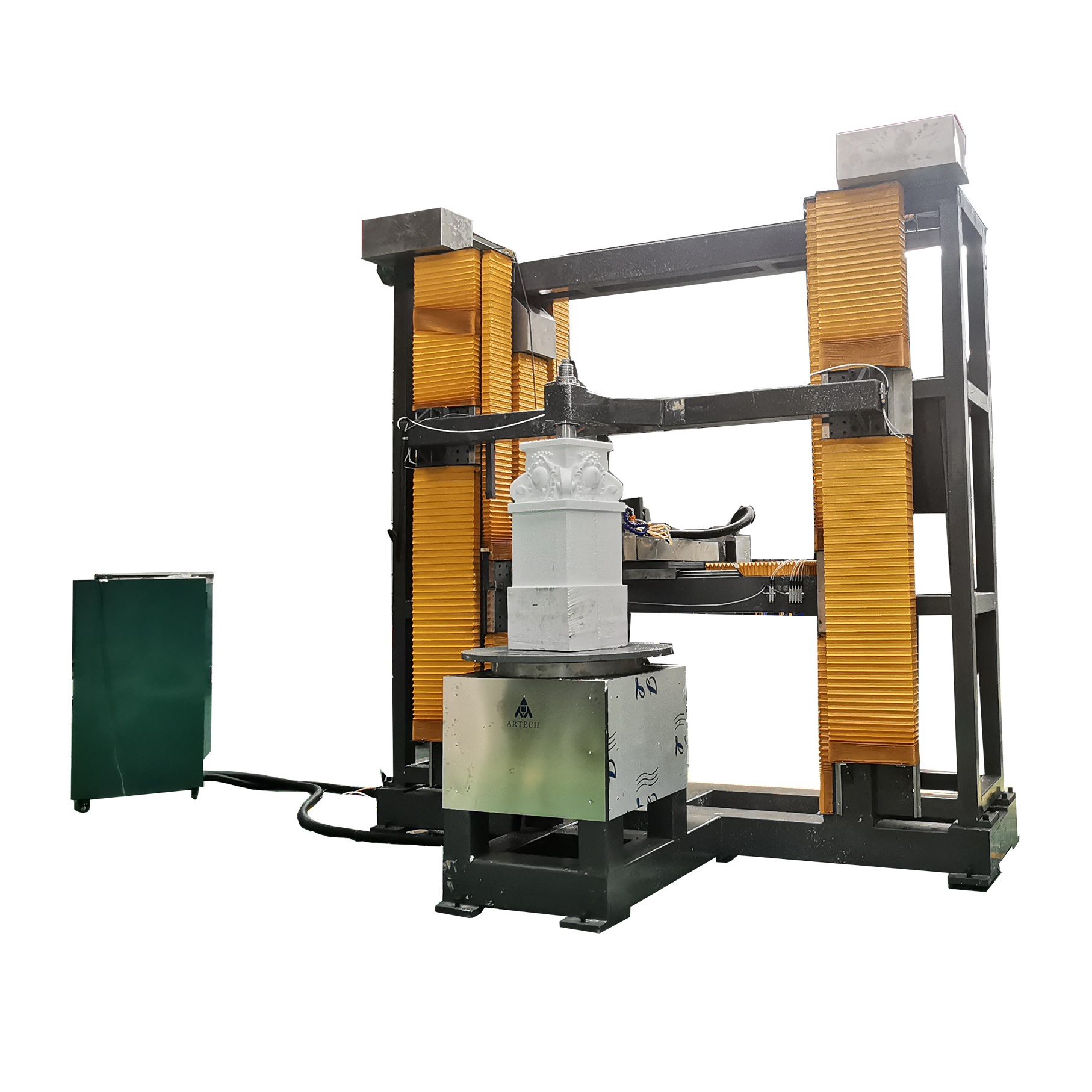

4 Axis CNC Stone Carving Machine With Vertical Rotary To Make 3D Sculptures Statues
Description
Technical Parameter
| Description | Parameter |
| X Y Z axis working area | 700x1500x200mm |
| Spindle | 5.5kw water cooling spindle |
| X Y Z traveling positioning accuracy | +-0.01/2000mm |
| Table Surface | turntable |
| Vacuum pump | air cooling 5.5kw pump (option) |
| X Y Z rail and transmission | Taiwan TBI ball screw and gear rack |
| Max.rapid travel rate | 50000mm/min |
| Max.working speed | 30000mm/min |
| Driver motors | Yaskawa motor and drivers or servo motor and drivers |
| Working voltage | 220V/380V/50HZ |
| Command language | G code |
| Control system | DSP or NC Studio/Syntec/Mach3 (option) |
| Software compatibility | Option:Artcam,Ucancam,Type3 |
| Running environment |
Temperature:0~45ºC
Relative humidity:30%~75% |
| Oil system | Manual oil lubrication system |
| Frame structure | New type thicker and bigger heavy duty square tube |
