Quick Details
-
hs code led lights drive:
-
40W waterproof hs code led lights driver manufacturers
-
material-outer case:
-
plastic
-
IP rate:
-
IP67
-
input voltage:
-
100~265vAC
-
working mode:
-
constant voltage
-
efficiency:
-
> 82%
-
warranty:
-
2 years warranty
-
dimension:
-
217*29*21mm
-
certificate:
-
CE,RoHS approval
Quick Details
-
Output Power:
-
40W
-
Input Voltage:
-
100~265vAC
-
Place of Origin:
-
Fujian, China
-
hs code led lights drive:
-
40W waterproof hs code led lights driver manufacturers
-
material-outer case:
-
plastic
-
IP rate:
-
IP67
-
input voltage:
-
100~265vAC
-
working mode:
-
constant voltage
-
efficiency:
-
> 82%
-
warranty:
-
2 years warranty
-
dimension:
-
217*29*21mm
-
certificate:
-
CE,RoHS approval

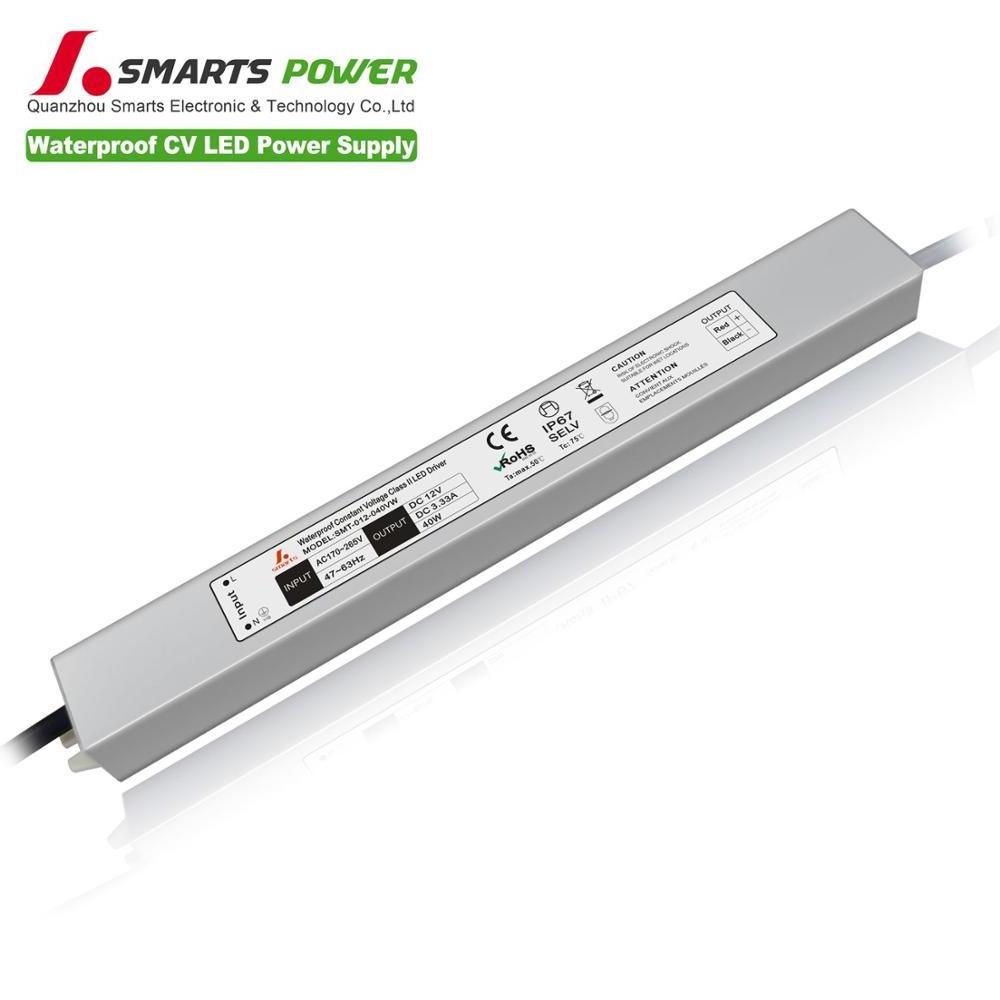

40W waterproof hs code led lights driver manufacturers
Product Description
| Label |
|
| Description |
|
| SPECIFICAION | |||||
| MODEL | SMT-012-040VW | SMT-024-040VW | |||
| OUTPUT | DC voltage | 12V | 24V | ||
| Rated current | 3.33A | 1.67A | |||
| Current range | 0~3.33A | 0~1.67A | |||
| Rated power | 40W | 40W | |||
| RIPPLE&NOISE(max) | 1.1V | 1.12V | |||
| voltage tolerrance | 12V±5% | 24V±5% | |||
| Setup rise time | 80ms/110VAC | 80ms/110VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110VAC | 60ms/110VAC | |||
| INPUT | Voltage range | 100~265Vac | 100~265Vac | ||
| Frequency range | 50~60Hz | 50~60Hz | |||
| efficency (Typ.) | >83% | >82% | |||
| AC current (Typ.) | 0.3A/110V, 0.5A/220V | 0.33A/110V,0.45A/220V | |||
| Inrush current (Typ.) | COLD START 30A/110~220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | Working temp. | -30~+50℃ (Refer to output load derating curve) | |||
| Working humidity | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | Safety standards | CE Mark(LVD), IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | |||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. | |||||
|
3.Tolerance:includes set up tolerance,line regulation and load regulation. |
|||||
Applications
- indoor LED illuminating lights,
- LED Neon,
- LED urban Decoration
- LED Lighting Advertising,
- LED Display,
- Safety Protection Apparatus,
- Telecommunications,
- Networks,
- Vehicle Lights, Controller Panels, etc .
