Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventronics
-
Model Number:
-
EBD-100S105DV
-
Output Frequency:
-
47-63HZ inc. 50/60Hz
-
Output Current:
-
70-1050 Constant Current
-
Typical Efficiency:
-
90.5%
-
Lifetime:
-
71,000 Hrs. at 70°C/ 220Vac
-
Power Factor:
-
0.98
-
Certification:
-
CE RoHS TUV CCC CB KS
-
Warranty:
-
5 Years
-
Dimensions:
-
6.69" * 2.66" * 1.44" (170 * 67.5 * 36.5mm), 900g
-
IP Class:
-
IP67 extra waterproof
-
Product Name:
-
100W LED Intelligent Programmable Dimmable Driver Power Supply
-
Application:
-
Independent use, LED lighting, low bay, tunnel, street lights
-
Others:
-
OVP/SCP/OTP, high efficiency, 0-5V/0-10V/PWM/Timer Dimmable
Quick Details
-
Output Power:
-
51 - 100W
-
Input Voltage:
-
176 ~ 305 Vac
-
Output Voltage:
-
57-142 Vdc inc. 60 Volt, 80V, 90Volt, 100V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventronics
-
Model Number:
-
EBD-100S105DV
-
Output Frequency:
-
47-63HZ inc. 50/60Hz
-
Output Current:
-
70-1050 Constant Current
-
Typical Efficiency:
-
90.5%
-
Lifetime:
-
71,000 Hrs. at 70°C/ 220Vac
-
Power Factor:
-
0.98
-
Certification:
-
CE RoHS TUV CCC CB KS
-
Warranty:
-
5 Years
-
Dimensions:
-
6.69" * 2.66" * 1.44" (170 * 67.5 * 36.5mm), 900g
-
IP Class:
-
IP67 extra waterproof
-
Product Name:
-
100W LED Intelligent Programmable Dimmable Driver Power Supply
-
Application:
-
Independent use, LED lighting, low bay, tunnel, street lights
-
Others:
-
OVP/SCP/OTP, high efficiency, 0-5V/0-10V/PWM/Timer Dimmable

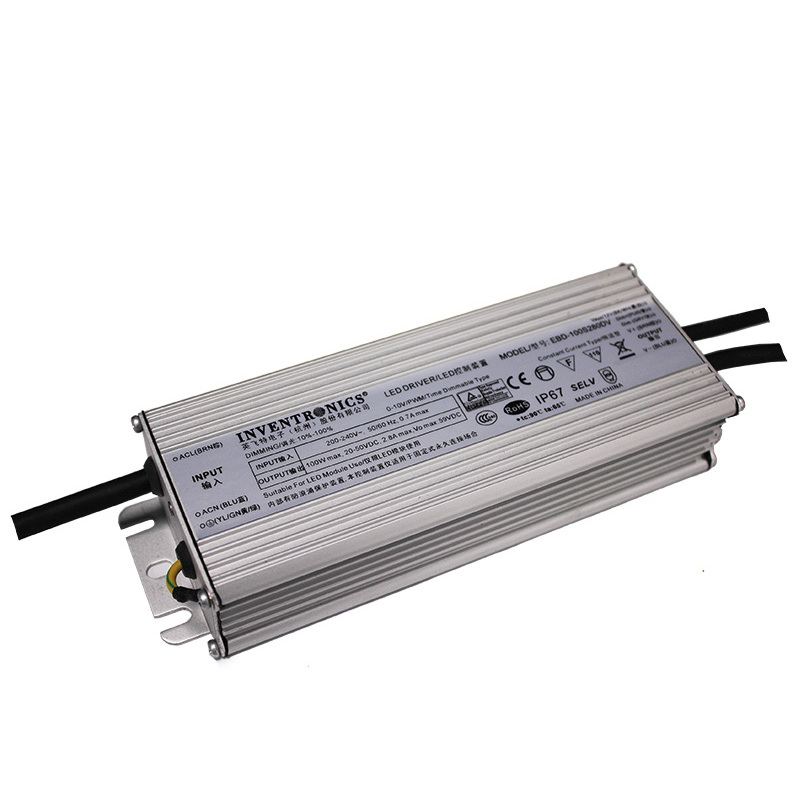

Inventronics 100W High Power IP67 Waterproof 70-1050mA 57-142Vdc 0-10V/PWM/Timer LED Dimmable Driver Power Supply EBD-100S105DV
- High Efficiency(Up to 90.5%);
- Full Power at Wide Output Current Range (Constant Power);
- Compact Package Design;
- 0-5V/0-10V/PWM/Timer Dimmable;
- Input Surge Protection: 6kV line-line, 10kV line-earth;
- All-around Protection: OVP, SCP, OTP ;
- Waterproof(IP67);
- SELV Output;
- Suitable for Independent Use.
| Output Current Range | Full-Power Current Range(1) | Defout Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency(3) | Power Factor (3) | Model Number(4) |
| 70-1050 mA | 700-1050mA | 700mA | 176 ~ 305 Vac | 57-142Vdc | 100W | 90.5% | 0.98 | EBD-100S105DV |
| 200-2800 mA | 2000-2800mA | 2100mA | 20-50Vdc | 90.0% | EBD-100S280DV(4) |
