Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haney
-
Model Number:
-
HN-24-100
-
Output Frequency:
-
18-20khz
-
Output Current:
-
100 amp
-
Efficiency:
-
96%
-
Name:
-
rectificador dc rectificador 48v metal plating rectifier power supply
-
Certification:
-
CE ROHS
-
Weight:
-
18kgs
-
Warranty:
-
12 Months
-
Power:
-
2.4kw
-
Protections:
-
Shortcuit Overtemp Overload Overtemp
-
Feature:
-
Low Ripple
-
Application:
-
Plating
-
MOQ:
-
1piece
Quick Details
-
Output Power:
-
2.4KW
-
Input Voltage:
-
220/380/415/440v
-
Output Voltage:
-
24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haney
-
Model Number:
-
HN-24-100
-
Output Frequency:
-
18-20khz
-
Output Current:
-
100 amp
-
Efficiency:
-
96%
-
Name:
-
rectificador dc rectificador 48v metal plating rectifier power supply
-
Certification:
-
CE ROHS
-
Weight:
-
18kgs
-
Warranty:
-
12 Months
-
Power:
-
2.4kw
-
Protections:
-
Shortcuit Overtemp Overload Overtemp
-
Feature:
-
Low Ripple
-
Application:
-
Plating
-
MOQ:
-
1piece
Product Description

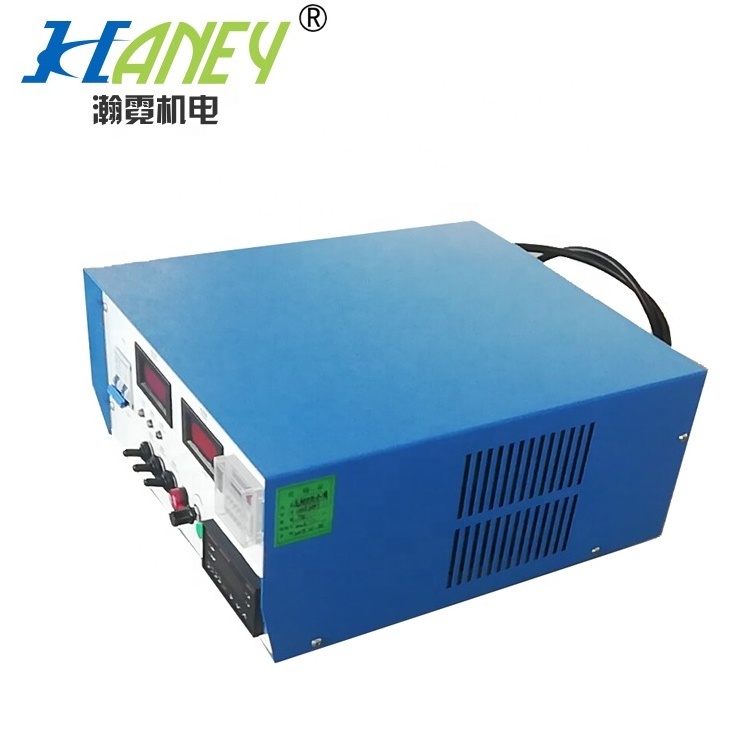

| Items | Haney adjustable 100a 200 amp electrolysis rectificador dc rectificador 48v metal plating rectifier power supply |
| AC input voltage | Three phase 220V, 380V, 415V, 480V±10%, 50/60Hz |
| Output voltage | DC 0- 12/24/36/48V...300V adjustable |
| Output current | DC 0- 100/200/300/400/500A/1000A....30000A adjustable |
| Regulation range | 0-100% |
| Power factor | ≥0.9(full load) |
| Accuracy of output current, voltage | ≤0.1% |
| Efficiency | ≥90%(full load) |
| Protection grade | IP54 for water cooling, IP30 for forced air cooling |
| Cooling method | Water cooling or forced air cooling |
| Control mode | CC,CV,PWM Pulse control |
| Operation mode | Local touch screen, front pannel, remote control box or communication |
| Communication protocol | RS485, Profibus DP, MODBUS |
| Working method | Long time full load continuous operation |
| Protections | |
| Related items |
| Standard control box | Air or water cooling model |
|

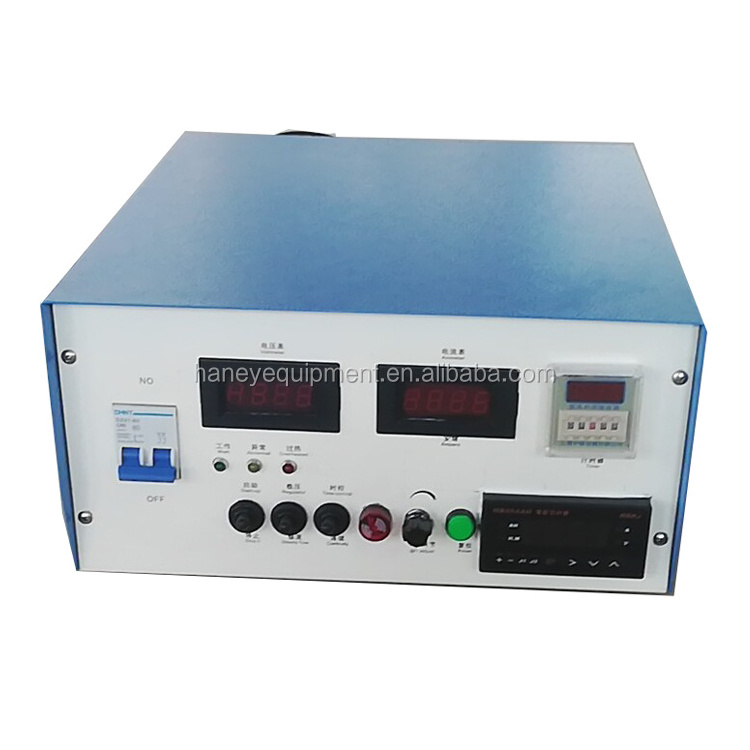

Name | Functions |
| Ammeter | To show output current | |
| Voltmeter | To show output voltage | |
| Power indication/Fault indication | To indicate power on/off To indicate fault red color led | |
| Function switch | To select status of constant voltage/constant current | |
| Output adjustment | To ajust output voltage/current | |
| On/off button with timer | To turn on/turn off the device |
| Problem | Possible Cause | Solution |
| Connecting with power supply,when start,the power indition doesn't not blink,no output | a)Check if the powe supply is lack of phase and the zero line is connected; b)change the transformer with the same working frequency on resolve the problems,then restart. | |
| Fault indication blinks when you open the product | ||
| no any response when turn on the power and turn off cann't normally turn on/off | Turning on/off button is damaged | Change the turn on/off switches(the switches like the boat shape),solve the problems,and then restart |
| Cann't adjust current or voltage continously or no any response | Output potentionmeter is damaged | Change the same potentiometer |
| When turn off the air-break switch,sound explosive,and the same time the air break automatically jump-off,and can't turn off again | ||
| The shell of the rectifier has electric when touch | humidity in the air casues electric inside the power supply | Open the product,use the infrared lamps or blower to make the air dry |
