Quick Details
-
Graphic Format Supported:
-
PLT, DXF, BMP, Dst, Dwg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Weight (KG):
-
300 KG
-
Configuration:
-
3-axis
-
Product name:
-

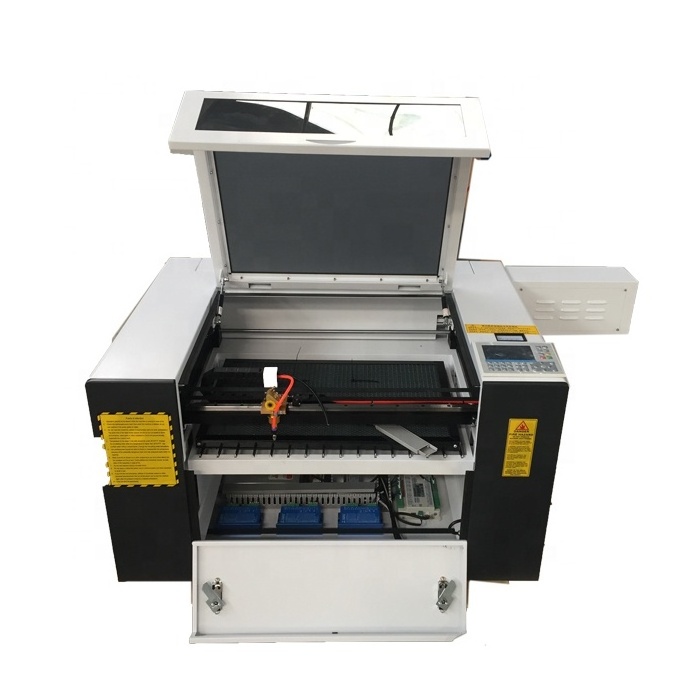

6040 CO2 laser engraving Machine for acrylic and leather
-
Working area:
-
600x400mm
-
Table Structure:
-
Honeycomb Table(Blade Table for Optional )
-
Table:
-
Up-down Table ( optional )
-
Laser Power:
-
Reci 80w(100w/130w/150w for optional)
-
Guide Ralis:
-
Hiwin or PMI Square Rails
-
Driver:
-
Leadshine
-
Position Precision:
-
± 0.05mm
Quick Details
-
Engraving Area:
-
400mm*600mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
6m/min, 0-1000mm/s
-
Graphic Format Supported:
-
PLT, DXF, BMP, Dst, Dwg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Remax
-
Weight (KG):
-
300 KG
-
Configuration:
-
3-axis
-
Product name:
-
6040 CO2 laser engraving Machine for acrylic and leather
-
Working area:
-
600x400mm
-
Table Structure:
-
Honeycomb Table(Blade Table for Optional )
-
Table:
-
Up-down Table ( optional )
-
Laser Power:
-
Reci 80w(100w/130w/150w for optional)
-
Guide Ralis:
-
Hiwin or PMI Square Rails
-
Driver:
-
Leadshine
-
Position Precision:
-
± 0.05mm
Product Description
Feature and parament
| Model | Remax- 604 0 laser engraver machine |
| Working Area | 6 00x400mm |
| Table Structure | Honeycomb Table ( Blade Table for Optional ) |
| Table | Up-Down Table ( Optional) |
| Laser Power | Reci 80w(100w/130w/150w for optional) |
| Power Adjustment | 0-100% with control, no adjustment segment, adjusted by software |
| Guide Ralis | Hiwin or PMI Square Rails |
| Driver | Leadshine |
| Cutting Speed | ≤600mm/s |
| Engraving Speed | 0-1000mm/s |
| Position Precision | ± 0.05mm |
| Performance | Engraving , Cutting |
| Main Graphic Format Supported | PLT/DXF/DST/BMP/Al etc. ( Direct Output) |
| Laser Type | CO2 Glass Laser Tube or Radio- Frerquency Tube |
| Working Platform | Engraving Platform ( up-and-down device with optional auxiliary cutting rack) |
| Cooling Water | Water Cooling And Protection System |
| Working Voltage | AC110/220V ± 10% , 50/60Hz |
| Woke Mode | Stepper or Servo |
| Working Temperature | 0-45°c |
| Working Humidity | 5%-95% |
| Control System | Ruida or Leetro |
| Dot positioning System | Red Dot Positioning (Option) |
