Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings
Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings

Anchorage Bricks Hanger Brick Anchor Bricks for Refractory Roof/Wall/Linings

FOB Reference Price: Get Latest Price
≥400 Pieces
US $0.1
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

CaO Content (%):
Customized
CrO Content (%):
Customized
SiC Content (%):
Customized
Place of Origin:
Henan, China
Model Number:
Anchor Bricks
Brand Name:
Rongsheng
Product Name:
Anchor Bricks
Color:
Yellow
Keyword:
Anchor Bricks
Factory:
Henan Rongsheng
Cao:
2.0
Cold Crushing Strength:
50-55
Al2o3:
55-75
0.2Mpa Refractoriness Under Load:
1450-1550
Apparently Porosity:
21-24
Bulk Density:
2.3-2.6

Quick Details

SiO2 Content (%):
Customized
Al2O3 Content (%):
Customized
MgO Content (%):
Customized
CaO Content (%):
Customized
CrO Content (%):
Customized
SiC Content (%):
Customized
Place of Origin:
Henan, China
Model Number:
Anchor Bricks
Brand Name:
Rongsheng
Product Name:
Anchor Bricks
Color:
Yellow
Keyword:
Anchor Bricks
Factory:
Henan Rongsheng
Cao:
2.0
Cold Crushing Strength:
50-55
Al2o3:
55-75
0.2Mpa Refractoriness Under Load:
1450-1550
Apparently Porosity:
21-24
Bulk Density:
2.3-2.6

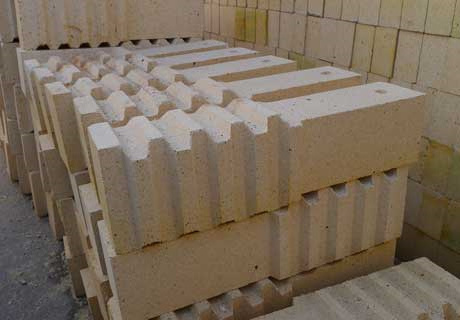

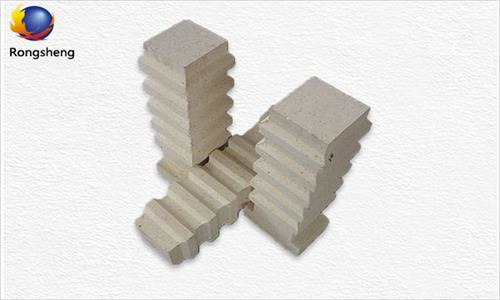

Anchor Brick

Anchorage brick, also known as hanging brick and anchor brick, is a new type of anchor brick for industrial furnace. The furnace top structure of top of electric furnace is supported by metal suspended bricks and firebricks. Therefore, the leakage of reactive gas and hot gas in furance will damage the metal hanger and result in roof collapse accidents. Industrial kiln and flue wall are made of inner lining, heat insulation layer and outer wall, lining is refractory brick, and the outer wall is used as ordinary sintered brick. There is a need for connection anchorage between these layers. The tensile strength and the flexural strength of the anchorage body are obviously improved. The stress generated at the groove is obstructed at the bar and can not be transferred continuously, so the anchorage brick of this structure is not easy to break.

Item
Index
LZ-55A
LZ-55B
LM-75A
LM-75B
Al2o3
55.0
55.0
75.0
75.0
Cao
2.0
2.0
2.0
2.0
Cold Crushing Strength
50
50
55
55
0.2Mpa Refractoriness Under Load
1450
1450
1550
1550
Apparently Porosity
22
24
21
23
Bulk Density
2.30
2.30
2.60
2.60
Anchor brick is a new type of roof structure for anchoring bricks for industrial furnaces. The top of the furnace is a roof structure supported by metal hanging fire bricks and refractory bricks. Therefore, leakage of reactive gas and hot gas in the furnace may damage the metal hanging parts, thereby causing a collapse of the top of the furnace. Industrial kiln and flue wall are composed of inner lining, heat insulation layer and outer wall layer, the inner lining is refractory brick, the outer wall is made of ordinary sintered brick. Anchorage is required between these layers, the tensile strength of the anchor refractory brick is obviously improved, the stress generated at the groove is blocked at the rib and cannot be transmitted continuously. Therefore, the anchor brick of this structure is not easy to break.

Features of Refractory Bricks
1. Good volume stability
2. High density and low porosity
3. High temperature load creep performance
4. Clay quality fire anchor brick is selected at low temperature below 1100 ℃
5. High-grade aluminum anchor brick is selected at high temperature above 1100 ℃
3. High-grade aluminum anchor brick is used at high temperature above 1250℃
