Quick Details
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
192 cm³
-
Injection Rate (g/s):
-
105 g/s
-
Injection Weight (g):
-
175 g
-
Screw Speed (rpm):
-
205 - 215 rpm
-
Screw diameter (mm):
-
38 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
360*360
-
Weight (KG):
-
3400 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
350 mm
-
Model Number:
-
HTW110
-
Brand Name:
-
HAITAI
-
Power (kW):
-
13 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Injection Weight:
-
213
-
Injection Rate:
-
128
-
Opening Stroke:
-
350
-
Color:
-
Blue/white
-
Language:
-
English/Spanish/German ect.
-
Machine weight:
-
3.4 T
-
Heating power:
-
8.2
-
Clamping Force (kN):
-
1100 kN
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
410mm
-
Distance between Tie Bars(Height)(mm):
-
410mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
38 kN
-
Theoretical Shot Volume(cm³):
-
192 cm³
-
Injection Rate (g/s):
-
105 g/s
-
Injection Weight (g):
-
175 g
-
Screw Speed (rpm):
-
205 - 215 rpm
-
Screw diameter (mm):
-
38 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
360*360
-
Weight (KG):
-
3400 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
350 mm
-
Model Number:
-
HTW110
-
Brand Name:
-
HAITAI
-
Power (kW):
-
13 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
Injection Weight:
-
213
-
Injection Rate:
-
128
-
Opening Stroke:
-
350
-
Color:
-
Blue/white
-
Language:
-
English/Spanish/German ect.
-
Machine weight:
-
3.4 T
-
Heating power:
-
8.2
-
Clamping Force (kN):
-
1100 kN
HAITAI
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

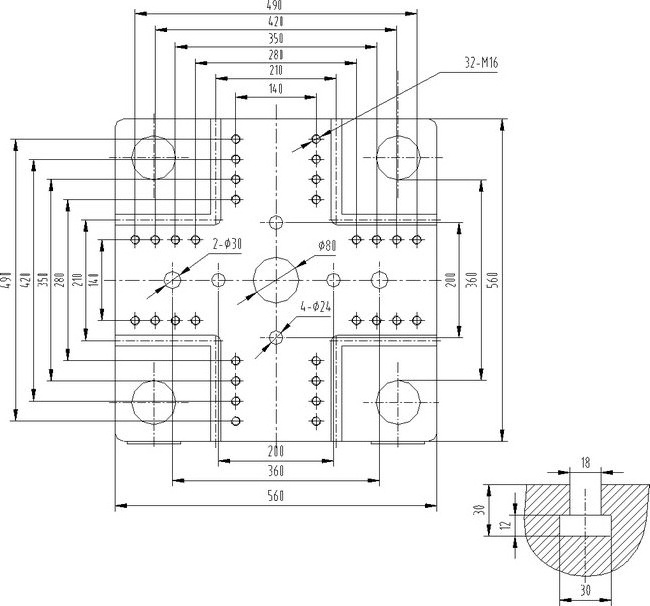

| PLATEN DIMENSIONS |
|

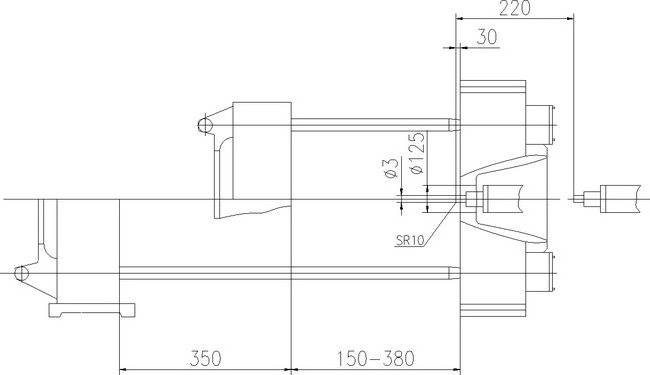

| MOULD SPACE DIMENSOINS |
|
