Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
495x420x505mm
-
Weight:
-
35
-
Rated power/speed:
-
4.9KW@3600RPM
-
Marketing Type:
-
HOT PRODUCT 2021
-
Rated Power:
-
4.9KW@3600RPM
-
Brand:
-
Excalibur
-
Engine Optional:
-
Color customized for 100pcs
-
Application:
-
Engineering Machinery
-
MOQ:
-
1pc
-
Color:
-
Customers' Requirement
-
Packing:
-
Carton/ Wooden Box if necessory
-
Quality:
-
100%tested
-
Cooling System:
-
Air Cooled
Quick Details
-
Displacement:
-
296cc
-
Emission Standard:
-
EURO 5
-
Power:
-
7.0HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Excalibur
-
Dimension(L*W*H):
-
495x420x505mm
-
Weight:
-
35
-
Rated power/speed:
-
4.9KW@3600RPM
-
Marketing Type:
-
HOT PRODUCT 2021
-
Rated Power:
-
4.9KW@3600RPM
-
Brand:
-
Excalibur
-
Engine Optional:
-
Color customized for 100pcs
-
Application:
-
Engineering Machinery
-
MOQ:
-
1pc
-
Color:
-
Customers' Requirement
-
Packing:
-
Carton/ Wooden Box if necessory
-
Quality:
-
100%tested
-
Cooling System:
-
Air Cooled
Products Description
Product Category
|
Model
|

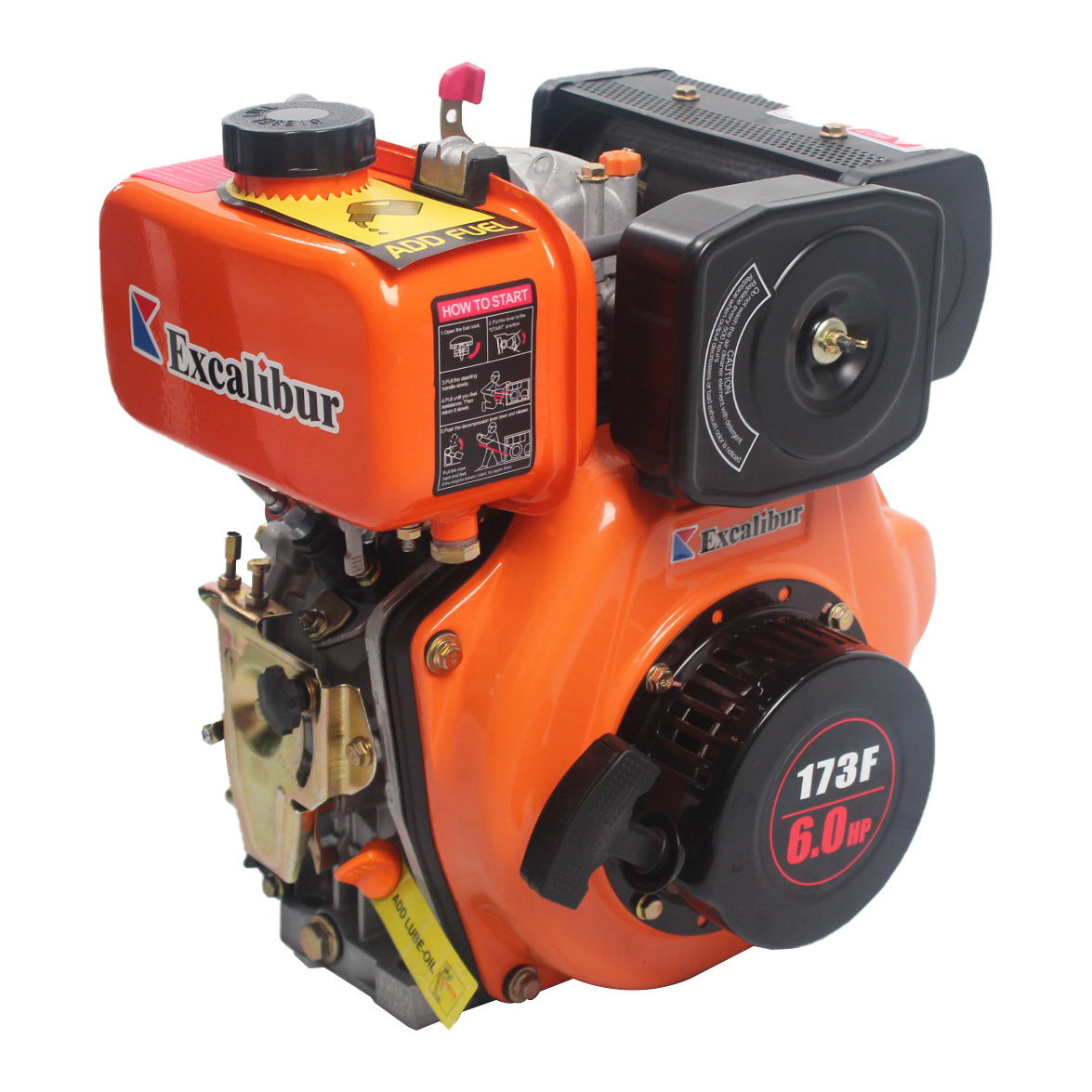

S173F
|
S178F
|
S178FA
|
S178FS
|
S186F
|
S186FA
|
S186FS
|
S188FB
|
S192F
|
||||||||
|
Type
|
Air-cooled, 4-stroke,single cylinder,vertical
|
|
|
|
|
|
|
|
|
||||||||
|
Bore*Stroke(mm)
|
73*58
|
78*62
|
78*64
|
78*62
|
86*70
|
86*72
|
86*70
|
88*75
|
92*75
|
||||||||
|
Displacement(mm)
|
243
|
296
|
305
|
296
|
406
|
418
|
406
|
456
|
498
|
||||||||
|
Combustion system
|
Direct injection
|
|
|
|
|
|
|
|
|
||||||||
|
Rated output kw(hp)/rpm
|
2.5(4.8)/3000
|
3.8(5.1)/3000
|
|
|
5.7(7.8)/3000
|
|
|
6.1(8.2)/3000
|
7.5(10.2)/3000
|
||||||||
|
|
3.8(5.2)/3600
|
4.4(5.9)3600
|
|
|
6.6(8.9)/3600
|
|
|
7.3(9.8)/3600
|
8.5(11.5)/3600
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
Max output kw(hp)/rpm
|
3.8(5.2)/3000
|
4.0(5.36)/3000
|
|
|
6.3(8.6)/3000
|
|
|
6.83(9.2)/3000
|
8.0(10.9)/3000
|
||||||||
|
|
4.05(5.5)/3600
|
4.9(6.6)/3600
|
|
|
7.3(9.9)/3600
|
|
|
8.2(11.0)/3600
|
9.0(12.2)/3600
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
Direction of rotation
|
Counterclockwise, facing PTO shaft
|
|
|
|
|
|
|
|
|
||||||||
|
Fuel
|
0#(summer) /-10#(winter)
|
|
|
|
|
|
|
|
|
||||||||
|
Fuel tank capacity(L)
|
2.5
|
|
|
6
|
6.5
|
|
|
|
|
||||||||
|
Lubricating oil capacity(l)
|
0.75
|
|
|
1.1
|
|
|
|
|
|
||||||||
|
Lubricating system
|
Pressre splashed
|
|
|
|
|
|
|
|
|
||||||||
|
Starting system
|
Recoil starter/ Electric starter
|
|
|
|
|
|
|
|
|
||||||||
|
Packing size(mm)
|
415*385*470
|
|
|
495*420*505
|
|
|
485*455*525
|
|
|
||||||||
|
Net weight
|
27
|
35
|
35
|
35
|
48
|
48
|
48
|
49
|
52
|
||||||||
