Quick Details
-
Brand Name:
-
Xidnun
-
Model Number:
-
XD-DP power inverter
-
Output Frequency:
-
50hz/60hz
-
Size:
-
555*297*184mm ~ 615*315*209mm
-
Weight:
-
12kg~27.5kg
-
Input AC voltage:
-
85VAC~138VAC/170VAC~275VAC/180VAC~285VAC/190VAC~295VAC
-
Working mode:
-
PV/AC first (Self optional)
-
Display of inverter:
-
LCD display
-
Battery type:
-
Lead acid, Lithium iom, Gel Battery
-
AC charging current:
-
0A to 30A (Self optional)
-
Color:
-
grey or customized inverter onda pura
-
Transfer time:
-
≤4ms
-
Product name:
-
car power hybrid solar inverter
-
Product installation:
-
Wall Mounted and portable
-
OEM:
-
Accepted OEM
-
Certificate:
-
ce
Quick Details
-
Output Current:
-
0~30A
-
Customized support:
-
Accept OEM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xidnun
-
Model Number:
-
XD-DP power inverter
-
Output Frequency:
-
50hz/60hz
-
Size:
-
555*297*184mm ~ 615*315*209mm
-
Weight:
-
12kg~27.5kg
-
Input AC voltage:
-
85VAC~138VAC/170VAC~275VAC/180VAC~285VAC/190VAC~295VAC
-
Working mode:
-
PV/AC first (Self optional)
-
Display of inverter:
-
LCD display
-
Battery type:
-
Lead acid, Lithium iom, Gel Battery
-
AC charging current:
-
0A to 30A (Self optional)
-
Color:
-
grey or customized inverter onda pura
-
Transfer time:
-
≤4ms
-
Product name:
-
car power hybrid solar inverter
-
Product installation:
-
Wall Mounted and portable
-
OEM:
-
Accepted OEM
-
Certificate:
-
ce
Inverter Feature
1. Low frequency toroidal transformer increase efficiency，Pure sine wave output；

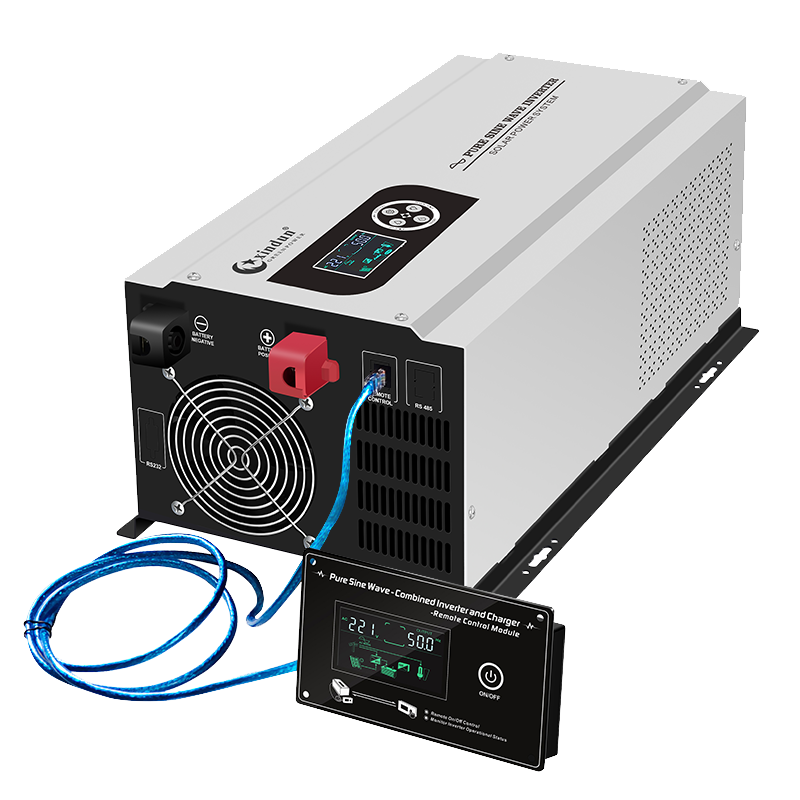

2. Integrated LCD display; One-button start with an external display screen( optional)；
3. Dedicated DCP chip design; stable and high-speed operation；

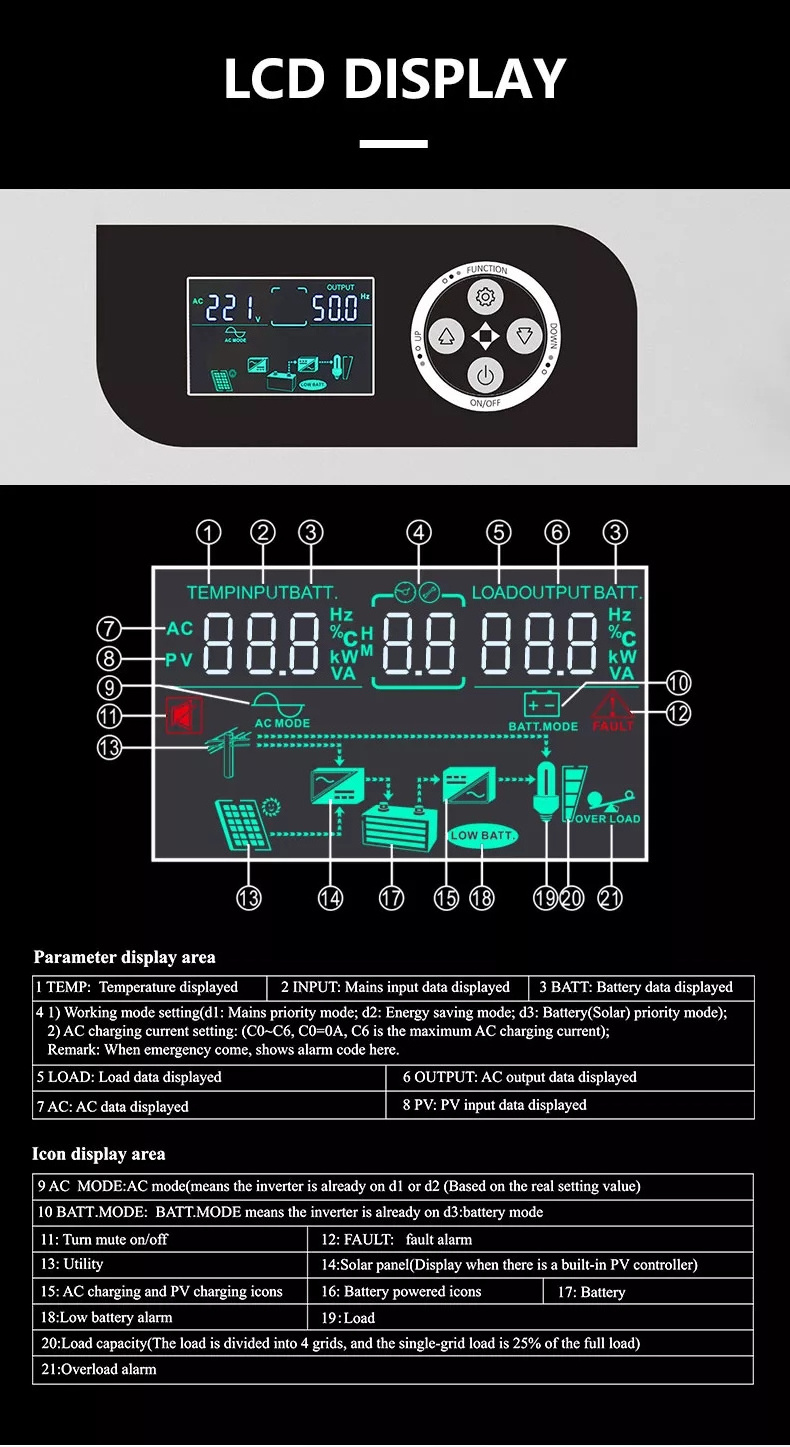

4. LCD display, easy to monitor the operation condition in real time；
5. AC charge current 0-30A adjustable; battery capacity configuration more flexible；
6.
Three types working modes adjustable:AC first, DC first, energy-saving mode；
7. AVR output, all-around automatic protection function；
8. Built-in PWM or MPPT controller optional；
9. Added fault codes query function,facilitate user to monitor the operation state in real time；
10. Supports diesel or gasoline generator, adapt any tough electricity situation；

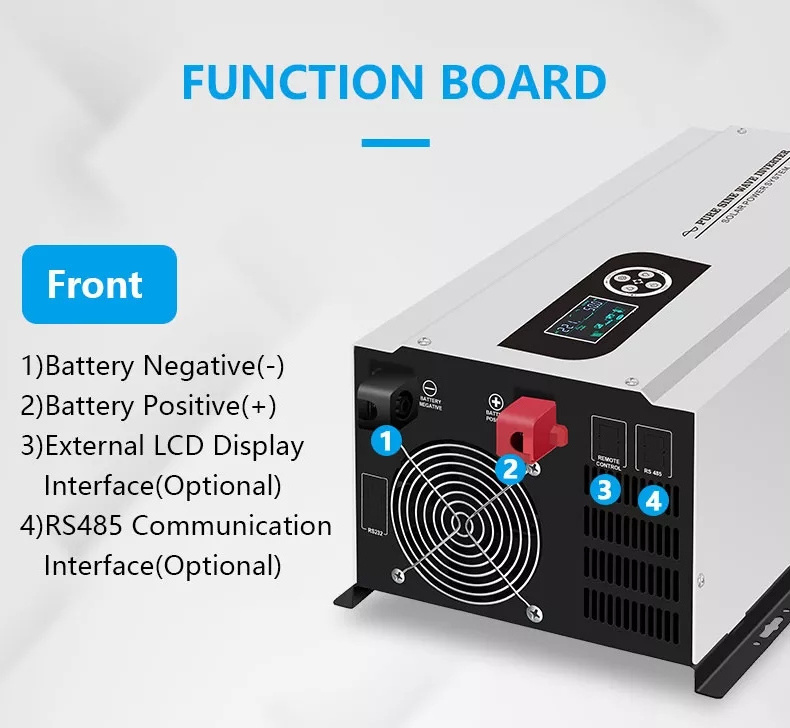

11. RS485 communication port/APP optional.
Product Detail
Inverter Technical Parameters
|
Specification
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Model: DP/DP-T
|
|
10212/24/48
|
15212/24/48
|
20212/24/48
|
30224/48
|
40224/48
|
50248
|
60248
|
70248
|
|||||||||
|
Rated Power
|
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
7000W
|
|||||||||
|
Peak Power（20ms)
|
|
3000VA
|
4500VA
|
6000VA
|
9000VA
|
12000VA
|
15000VA
|
18000VA
|
21000VA
|
|||||||||
|
Start Motor
|
|
1HP
|
1.5HP
|
2HP
|
3HP
|
3HP
|
4HP
|
4HP
|
5HP
|
|||||||||
|
Battery Voltage
|
|
12/24/48VDC
|
|
|
24/48VDC
|
24/48VDC
|
48VDC
|
|
|
|||||||||
|
Size(L*W*Hmm)
|
|
555*297*184
|
|
|
|
615*315*209
|
|
|
|
|||||||||
|
Packing Size(L*W*Hmm)
|
|
620*345*255
|
|
|
|
680*365*280
|
|
|
|
|||||||||
|
N.W.(kg)
|
|
12
|
13
|
15.5
|
18
|
23
|
24.5
|
26
|
27.5
|
|||||||||
|
G.W.(kg)（Carton Packing）
|
|
14
|
15
|
17.5
|
20
|
25.5
|
27
|
28.5
|
30
|
|||||||||
|
Installation Method
|
|
Wall-Mounted
|
|
|
|
|
|
|
|
|||||||||
|
Parameter
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Input
|
DC Input Voltage Range
|
10.5-15VDC（Single battery voltage）
|
|
|
|
|
|
|
|
|||||||||
|
|
AC Input Voltage Range
|
85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC / 170VAC~275VAC（220VAC / 180VAC~285VAC（230VAC）
/ 190VAC~295VAC（240VAC） |
|
|
|
|
|
|
|
|||||||||
|
|
AC Input Frequency Range
|
45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
|
|
|
|
|
|
|
|
|||||||||
|
|
Max AC charging current
|
0~30A(Depending on the model）
|
|
|
|
|
|
|
|
|||||||||
|
|
AC charging method
|
Three-stage (constant current, constant voltage, floating charge)
|
|
|
|
|
|
|
|
|||||||||
|
Output
|
Efficiency(Battery Mode)
|
≥85%
|
|
|
|
|
|
|
|
|||||||||
|
|
Output Voltage(Battery Mode)
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
|
|
|
|
|
|
|
|
|||||||||
|
|
Output Frequency(Battery Mode)
|
50/60Hz±1%
|
|
|
|
|
|
|
|
|||||||||
|
|
Output Wave(Battery Mode)
|
Pure Sine Wave
|
|
|
|
|
|
|
|
|||||||||
|
|
Efficiency(AC Mode)
|
>99%
|
|
|
|
|
|
|
|
|||||||||
|
|
Output Voltage(AC Mode)
|
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
|
|
|
|
|
|
|
|
|||||||||
|
|
Output Frequency(AC Mode)
|
Follow input
|
|
|
|
|
|
|
|
|||||||||
|
|
Output waveform distortion
(Battery Mode) |
≤3%（Linear load）
|
|
|
|
|
|
|
|
|||||||||
|
|
No load loss(Battery Mode)
|
≤0.8% rated power
|
|
|
|
|
|
|
|
|||||||||
|
|
No load loss(AC Mode)
|
≤2% rated power（ charger does not work in AC mode）
|
|
|
|
|
|
|
|
|||||||||
|
|
No load loss(Energy saving Mode)
|
≤10W
|
|
|
|
|
|
|
|
|||||||||
|
Battery Type
|
VRLA Battery
|
Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4)
|
|
|
|
|
|
|
|
|||||||||
|
|
Customize battery
|
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel) |
|
|
|
|
|
|
|
|||||||||
|
Protection
|
Battery undervoltage alarm / Battery undervoltage protection / Battery overvoltage alarm / Battery overvoltage protection /
Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection |
|
|
|
|
|
|
|
|
|||||||||
|
Alarm
|
A
|
Normal working condition, buzzer has no alarm sound
|
|
|
|
|
|
|
|
|||||||||
|
|
B
|
Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
|
|
|
|
|
|
|
|
|||||||||
|
|
C
|
When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
|
|
|
|
|
|
|
|
|||||||||
|
Inside Solar controller
(Optional) |
Charging Mode
|
PWM or MPPT
|
|
|
|
|
|
|
|
|||||||||
|
|
Charging current
|
10A~60A（PWM or MPPT）
|
|
|
|
10A~60A(PWM ) / 10A~100A(MPPT)
|
|
|
|
|||||||||
|
|
PV Input Voltage Range
|
PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system)
MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system) |
|
|
|
|
|
|
|
|||||||||
|
|
Max PV Input Voltage(Voc)
(At the lowest temperature) |
PWM: 50V(12V/24V system); 100V(48V system) / MPPT: 150V(12V/24V/48V system)
|
|
|
|
|
|
|
|
|||||||||
|
|
PV Array Maximum Power
|
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A）;
24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A）; 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A） |
|
|
|
|
|
|
|
|||||||||
|
|
Standby loss
|
≤3W
|
|
|
|
|
|
|
|
|||||||||
|
|
Maximum conversion efficiency
|
>95%
|
|
|
|
|
|
|
|
|||||||||
|
Working Mode
|
|
Battery First/AC First/Saving Energy Mode
|
|
|
|
|
|
|
|
|||||||||
|
Transfer Time
|
|
≤4ms
|
|
|
|
|
|
|
|
|||||||||
|
Display
|
|

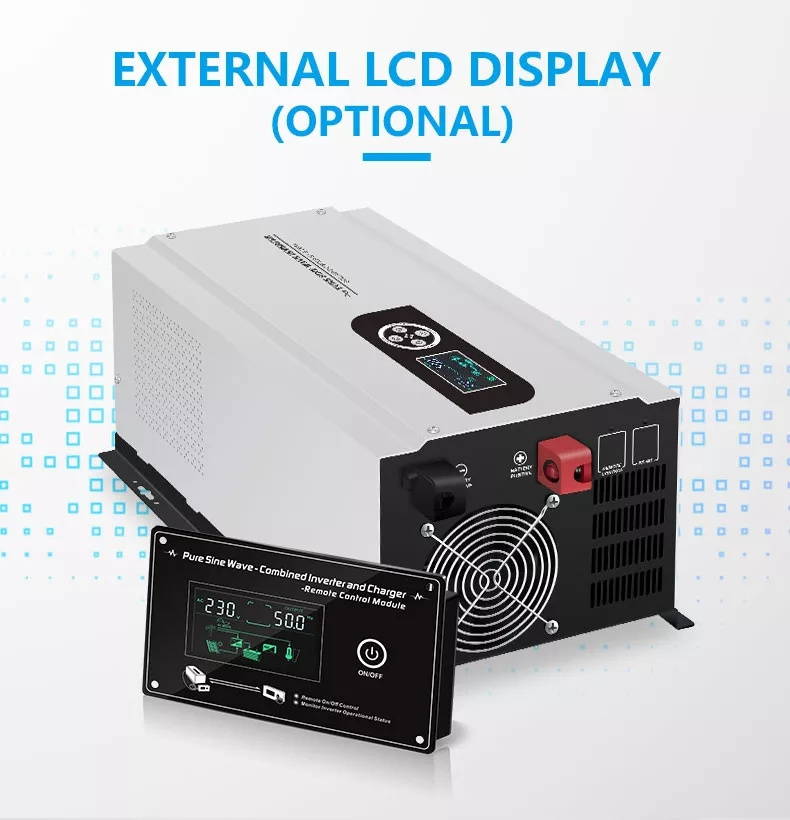

LCD（External LCD Display(Optional)）
|
|
|
|
|
|
|
|
|||||||||
|
Thermal method
|
|
Cooling fan in intelligent control
|
|
|
|
|
|
|
|
|||||||||
|
Communication(Optional)
|
|
RS485/APP（WIFI monitoring or GPRS monitoring）
|
|
|
|
|
|
|
|
|||||||||
Wiring Diagram
Application Case
Packing&Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
