Quick Details
-
Model Number:
-
Winner Series
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
565*395*225mm
-
Weight:
-
18kgs
-
Output Power:
-
>1000KW
-
Capacity:
-
1KW - 12KW
-
Frequency Range:
-
50 Hz/60 Hz (Auto Sensing)
-
Battery Voltage:
-
12/24/48VDC
-
Color:
-
Blue / Silvery
-
Communcation Port:
-
RS232 / RS485
-
Delivery Time:
-
7-10 Days
-
AVR Output:
-
Yes
-
Wave Form:
-
Pure Sine Wave
-
inverter generator:
-
inverters converters
-
Certificate:
-
CE
Quick Details
-
Output Current:
-
14A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UPSEN
-
Model Number:
-
Winner Series
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
565*395*225mm
-
Weight:
-
18kgs
-
Output Power:
-
>1000KW
-
Capacity:
-
1KW - 12KW
-
Frequency Range:
-
50 Hz/60 Hz (Auto Sensing)
-
Battery Voltage:
-
12/24/48VDC
-
Color:
-
Blue / Silvery
-
Communcation Port:
-
RS232 / RS485
-
Delivery Time:
-
7-10 Days
-
AVR Output:
-
Yes
-
Wave Form:
-
Pure Sine Wave
-
inverter generator:
-
inverters converters
-
Certificate:
-
CE
Key features

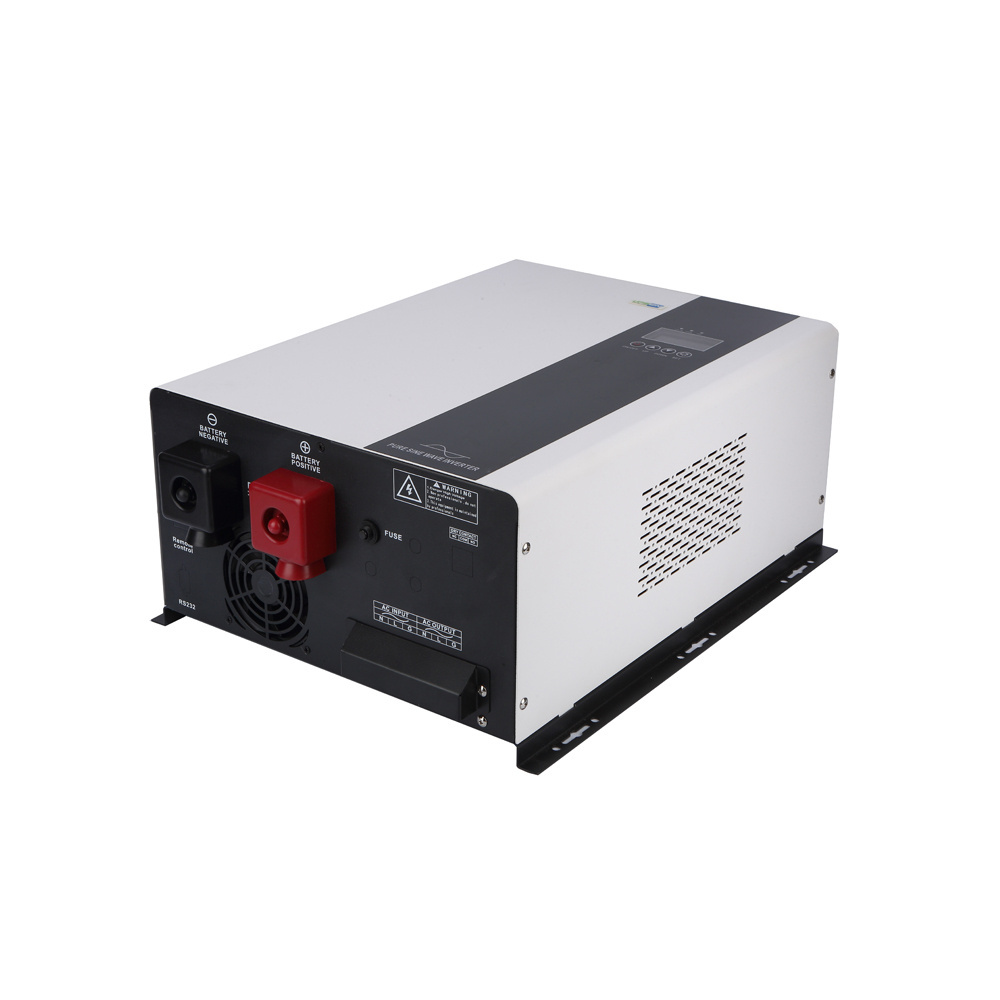

Pure Sine Wave Inverter Winner Series 1KW-12KW
Key Features:
* Pure sine wave output, with rated power: 1KW to 12KW (12V/24V/48V/96Vdc)
* With UPS function, DC to AC automatic conversion
* Wide AC Voltage & Frequency for AC and Generator Input
* Adjustable battery voltage for different types of batteries, such as LD: lead-acid battery (default), GEL: gel battery, LI:
lithium battery.
* DC Cold Start and Automatic Self-Diagnostic function
With 5 working modes for choose
01: Mains Priority /
02: Energy Saving /
03: Battery Priority /
04: Unattended Mode /
05: Solar Priority
* High Efficiency Design
* Power Saving Mode to Conserve Energy
* Smart LCD display and setting (Working modes, Charge Current, Charge Voltage, AC range input , battery voltage ,Battery low
voltage shutdown etc.)
* High-low voltage protection,overload, short-circuit Protection, under-voltage and over-temperature protection,over voltage,
battery reverse connection (optional) etc.
* AC Charging current 5A -60A adjustable for 1KW - 12KW, Max 70A customizable for 4KW -12KW Model
* Support RS232, RS485 communication port (Optional)
* Support Wifi Plug for remote monitoring and management through cellphone App (Optional)
Key Features:
* Pure sine wave output, with rated power: 1KW to 12KW (12V/24V/48V/96Vdc)
* With UPS function, DC to AC automatic conversion
* Wide AC Voltage & Frequency for AC and Generator Input
* Adjustable battery voltage for different types of batteries, such as LD: lead-acid battery (default), GEL: gel battery, LI:
lithium battery.
* DC Cold Start and Automatic Self-Diagnostic function
With 5 working modes for choose
01: Mains Priority /
02: Energy Saving /
03: Battery Priority /
04: Unattended Mode /
05: Solar Priority
* High Efficiency Design
* Power Saving Mode to Conserve Energy
* Smart LCD display and setting (Working modes, Charge Current, Charge Voltage, AC range input , battery voltage ,Battery low
voltage shutdown etc.)
* High-low voltage protection,overload, short-circuit Protection, under-voltage and over-temperature protection,over voltage,
battery reverse connection (optional) etc.
* AC Charging current 5A -60A adjustable for 1KW - 12KW, Max 70A customizable for 4KW -12KW Model
* Support RS232, RS485 communication port (Optional)
* Support Wifi Plug for remote monitoring and management through cellphone App (Optional)
