Quick Details
-
Rated Power:
-
18hp 20hp 24hp 33hp
-
Starting system:
-
Electric Starter
-
Displacement:
-
1.532L
-
Color:
-
Customers' Requirement
-
Item:
-
General Diesel Engine
-
BORE*STROKE:
-
85*90
-
Rated speed:
-
1500/1800/2000/2200/3000
-
Engine Model:
-
385
Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
3 cylinder water cooling four stroke 18hp 20hp 24hp 33hp diesel engine
-
Engine type:
-
Water-cooled 4-stroke
-
Rated Power:
-
18hp 20hp 24hp 33hp
-
Starting system:
-
Electric Starter
-
Displacement:
-
1.532L
-
Color:
-
Customers' Requirement
-
Item:
-
General Diesel Engine
-
BORE*STROKE:
-
85*90
-
Rated speed:
-
1500/1800/2000/2200/3000
-
Engine Model:
-
385
3 cylinder water cooling four stroke 20hp diesel engine
Product Description
Product Application
|
model
|
|
LY385D
|
LY385P
|
LY385G
|
LY385C
|
LY385T
|
|||||
|
rated power
|
kw
|
12(16.32HP)/15(20.4)
|
16(22HP)
|
24(32.64HP)
|
16(22HP)
|
16(22HP)
|
|||||
|
rated speed
|
rpm
|
1500/1800
|
2400
|
3000
|
2400
|
2400
|
|||||
|
type
|
|
direct injection, water cooling, four stroke, inline.
|
|
|
|
|
|||||
|
number of cylinder
|
|
3
|
|
|
|
|
|||||
|
cylinder bore *stroke
|
|
85*90 mm
|
|
|
|
|
|||||
|
dispacement
|
L
|
1.532
|
|
|
|
|
|||||
|
compressure radio
|
|
18:1
|
|
|
|
|
|||||
|
fuel confusumption
|
|
≦268 g/kw.h
|
|
|
|
|
|||||
|
oil confusumption
|
|
≦1.63 g/kw.h
|
|
|
|
|
|||||
|
cooling methold
|
|
force water cooling
|
|
|
|
|
|||||
|
start method
|
|
elec start
|
|
|
|
|
|||||
|
net weight
|
kg
|
165
|
195
|
185
|
185
|
155
|
|||||
|
packing dimension
|
mm
|
810*620*770
|
990*620*770
|
810*620*770
|
810*620*770
|
810*620*770
|
|||||
Main Features
Drawing

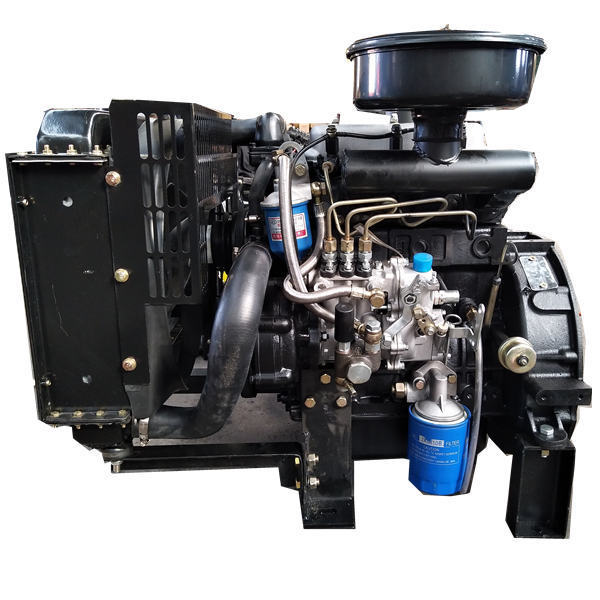

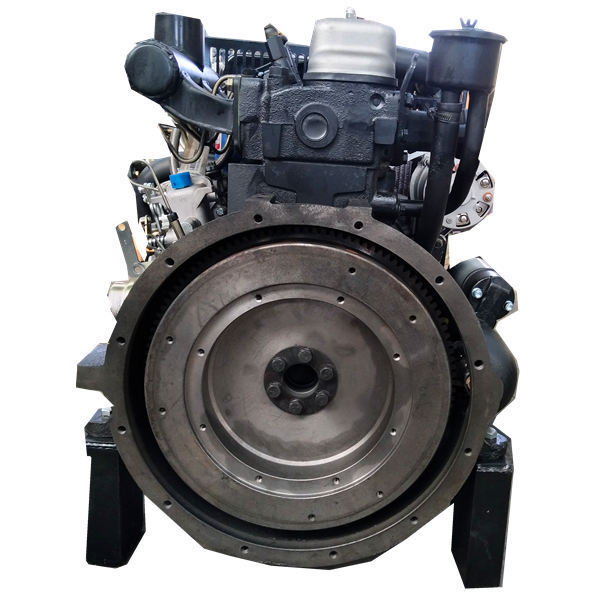

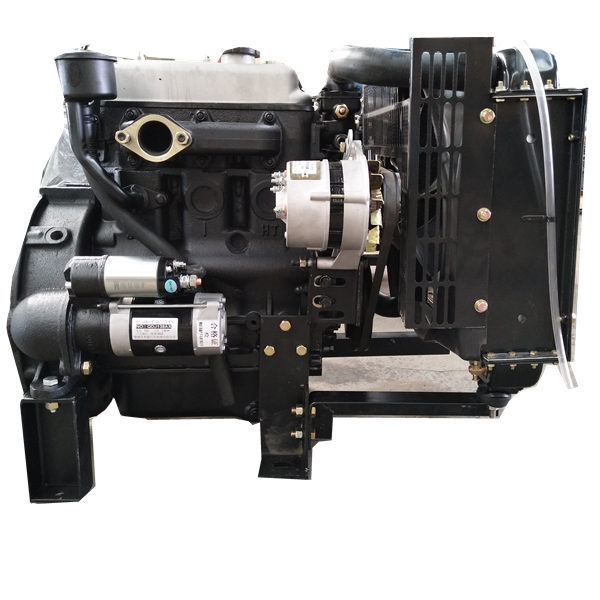

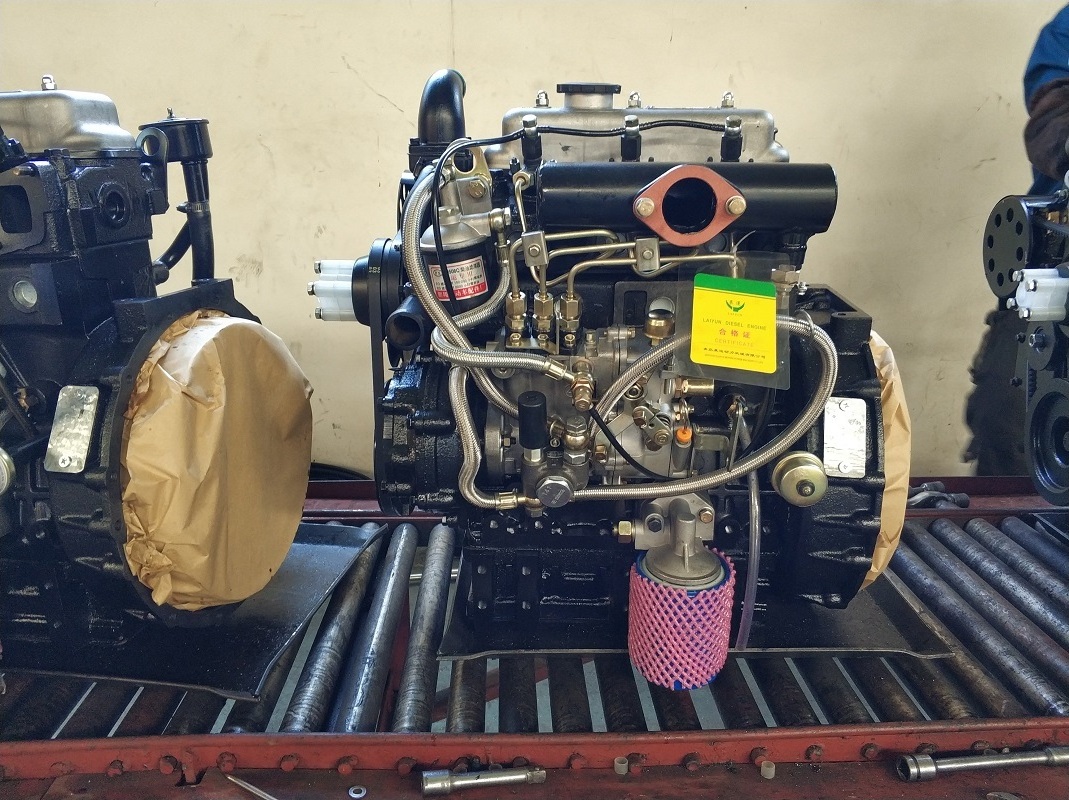

Detailed Images
Engine Parts
Engine parts
Engine Parts
Engine parts
Our Service
Pre-Sales Service
After-Sales Service
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
810 (L) * 620(W) * 770 (D)
|
|
|
Weight
|
165kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H).or according to customers special request.
|
|
|
