Quick Details
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS070410
-
Max. Current:
-
1.0 mA
-
Certificate:
-
RoHS
-
Tilt Angle:
-
45° ±15°
-
Switch state:
-
Normal Close
-
PCB Direction:
-
Vertical PCB
-
Operating Voltage:
-
5V
-
Function:
-
Up-Side Down Detecting
-
Application:
-
Smart Home Appliance
-
Package:
-
PE Bag
-
Quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
3V ~ 5V
-
Place of Origin:
-
Taiwan
-
Brand Name:
-
OncQue
-
Model Number:
-
RBS070410
-
Max. Current:
-
1.0 mA
-
Certificate:
-
RoHS
-
Tilt Angle:
-
45° ±15°
-
Switch state:
-
Normal Close
-
PCB Direction:
-
Vertical PCB
-
Operating Voltage:
-
5V
-
Function:
-
Up-Side Down Detecting
-
Application:
-
Smart Home Appliance
-
Package:
-
PE Bag
-
Quality:
-
MADE IN TAIWAN
-
Certification:
-
RoHS
Product Description
Function

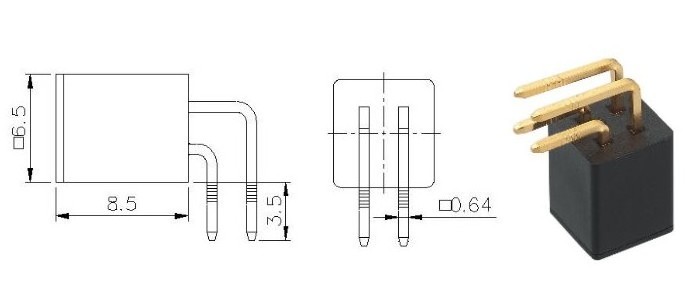

Specification
Feature
- Housing made of high insulation plastic material, free from electric conduction and rust problem.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
- Gold-plated ball and terminals, low possibility of oxidization.
- All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
- Simple ON and OFF signals, easy for design.
- RoHS compliance, an ideal substitute for mercury switch.
- A more economical tilt and rotation detection option than IC design solution.
Current / Voltage Suggested
|
Input Current (mA)
|
Operating Voltage (V)
|
Condition
|
|
1.0
|
5
|
--
|
|
Contact Rating
|
10 mA, 5VDC
|
|
Contact Resistance
|
10Ω max.
|
|
Insulation Resistance
|
1000 MΩ min., 100 VDC
|
|
Dielectric Strength
|
500 VDC min., 1 minute
|
|
Capacitance
|
5 pF max.
|
|
Conductive Rate
|
90% min.
|
|
Operating Temperature
|
-25°C to 85°C
|
|
Storage Temperature
|
-40°C to 85°C
|
|
Humidity
|
40°C / 95% RH
|
|
Mechanical Life
|
2 Hz horizontal
1,000,000 times |
|
Electrical Life
|
100,000 times
|
Dimension & Packing
|
Package
|
Quantity
|
Total Q'ty
|
Dimension
|
|
PE Bag
|
500 pcs
|
500 pcs
|
205L*145W
|
|
Inner Box
|
8 PE Bag
|
4,000 pcs
|
348L*191W*85H
|
|
Carton
|
3 Boxes
|
12,000 pcs
|
364L*278W*213H
|
Application
Patent
Taiwan
- Taiwan Patent No. M 437246
- Taiwan Patent No. I 476797
- Taiwan Patent No. I 510356
U.S.A
- U.S.A. Patent No. US 6,518,523 B1
- U.S.A. Patent No. US 7,256,360 B1
- U.S.A. Patent No. US 9,058,945 B2
China
- China Patent No. 201220308500.8
- China Patent No. 20120079187.5
- China Patent No. 201210218323.9
