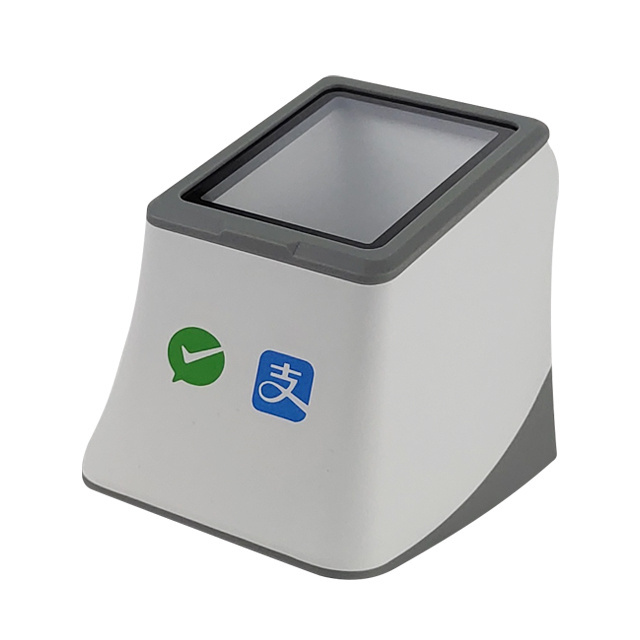

Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount
Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount

Omnidirectional Hands-Free Automatic 2D Barcode Reader USB Barcode Scanner Platform Automatic Barcode Scanner Fixed Mount

FOB Reference Price: Get Latest Price
≥1 Pieces
US $25
≥200 Pieces
US $22
≥300 Pieces
US $18
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Optical Resolution:
640 pixels (H)x 480 pixels (V)
Scan Speed:
100 Scans/Sec
Brand Name:
Masung
Place of Origin:
Guangdong, China
Dimensions::
135mm x 105mm x 100mm
Weight::
305g
Roll/Pitch/Yaw::
360°, ±65°, ±60°
Working Current::
300mA
Voltage::
5 VDC
Interfaces Supported::
USB, RS232
Motion Tolerances::
>2m/s
Ambient Light Immunity::
0-100,000 Lux.
Product name:
Qr Code Scanner
Application:
Commercial

Quick Details

Type:
Barcode Scanner
Scan Element Type:
CMOS
Max Paper Size:
A4
Optical Resolution:
640 pixels (H)x 480 pixels (V)
Scan Speed:
100 Scans/Sec
Brand Name:
Masung
Place of Origin:
Guangdong, China
Dimensions::
135mm x 105mm x 100mm
Weight::
305g
Roll/Pitch/Yaw::
360°, ±65°, ±60°
Working Current::
300mA
Voltage::
5 VDC
Interfaces Supported::
USB, RS232
Motion Tolerances::
>2m/s
Ambient Light Immunity::
0-100,000 Lux.
Product name:
Qr Code Scanner
Application:
Commercial
Product Description
Barcode Scanner MS-QP1612

Retail Stores Table Top Scanner 2D Omni Direction Barcode Reader
Features:
* Large Field of View,support for screen scanning,no need to align
* Scan the codes for successful voice broadcast,liberate the cashier, Avoid missing orders.
* Diversified interface, build-in RS232&USB
Scanning performance
Operation System
Compatible with Windows,Android,Linux
Image Sensor
640 X 480 Pixels
illumination
White LED（4000K）
Code system
On by default
EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、
Code39、 Code93、CodaBar、QR Code、PDF417、
DataMatrix
Off by default
Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、
MSI Plessey 、RSS-14、RSS-Limited、RSS
Expanded
Reading accuracy *
≥10mil（QR）
Typical depth of field
WeChat payment code (QR 2.3*2.23cm)
0~270mm
Contrast
≥25%
Barcode sensitivity
tilt±60°,deflection ±60°,Spin 360°
Field of view angle
horizontal 53°, vertical 41°
Scan speed
98times/s
Mechanical/electrical parameters
Communication interface
Support USB-HID、USB Two communication methods of virtual serial port
USB HID-KBW（default）
Physical dimension (mm)
130mm L*109mm W*111.5mm H
Weight
235g
Input Voltage
5VDC
Current
450mA
Environmental parameters
Operating temperature
-20℃~+55℃
Storage temperature
-40℃~+70℃
Working humidity
5%~95%（No condensation）
Package
List
Scan code box (with wire)*1，
Manual *1
