It can easily read the paper, goods and other barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
300times/s
-
Brand Name:
-
DY SCAN
-
Place of Origin:
-
Guangdong, China
-
Light source:
-
Linear CCD
-
Interface type:
-
Type C
-
Reading precision:
-
4mil
-
Decoding speed:
-
300times/s
-
Depth of field:
-
60mm-500mm
-
Indicator:
-
LED, Buzzer, Vibration
-
Battery charging time:
-
About 1.5 h
-
Continuous working time:
-
≥7.5h
-
Weight:
-
35g(without cable)
-
Dimension:
-
L51.5mm * W35mm * H45mm
Quick Details
-
Type:
-
Portable barcode scanner
-
Scan Element Type:
-
CCD
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
4mil
-
Scan Speed:
-
300times/s
-
Brand Name:
-
DY SCAN
-
Place of Origin:
-
Guangdong, China
-
Light source:
-
Linear CCD
-
Interface type:
-
Type C
-
Reading precision:
-
4mil
-
Decoding speed:
-
300times/s
-
Depth of field:
-
60mm-500mm
-
Indicator:
-
LED, Buzzer, Vibration
-
Battery charging time:
-
About 1.5 h
-
Continuous working time:
-
≥7.5h
-
Weight:
-
35g(without cable)
-
Dimension:
-
L51.5mm * W35mm * H45mm
Products Description
Model:

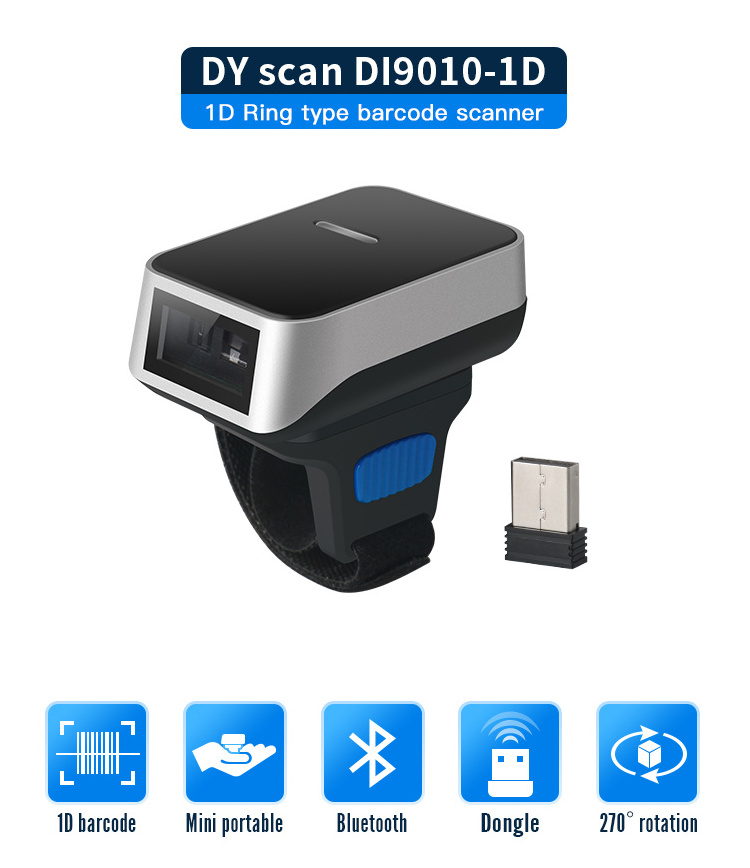

DI9010-1D
DI9010-1D is a high-performance 1D BT barcode scanner with leading Laser recognition technology.
It can easily read the paper, goods and other barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
It can easily read the paper, goods and other barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features

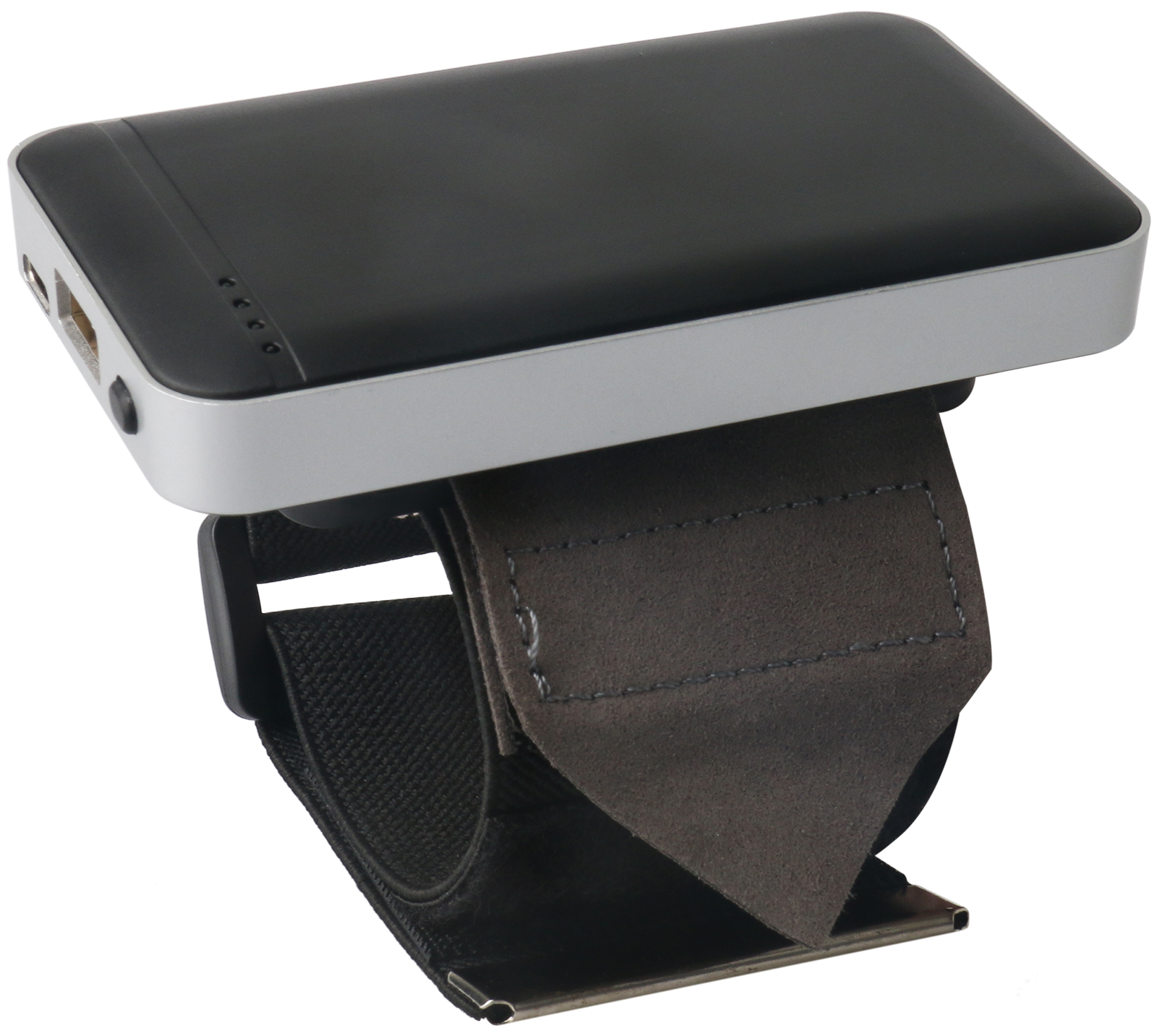

* Wearable design, widely used in warehouse, express.
* Read all mainstream 1D barcodes in the market easily.(4mil)

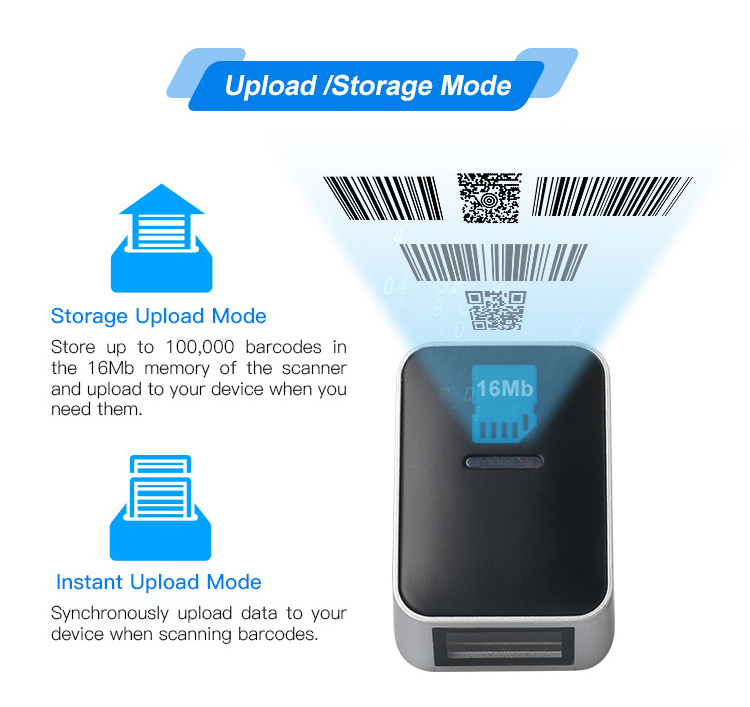

* 100,000 data storage capacity.
* BT 4.2, intelligent automatic connection when it’s beyond range, not manual setting.

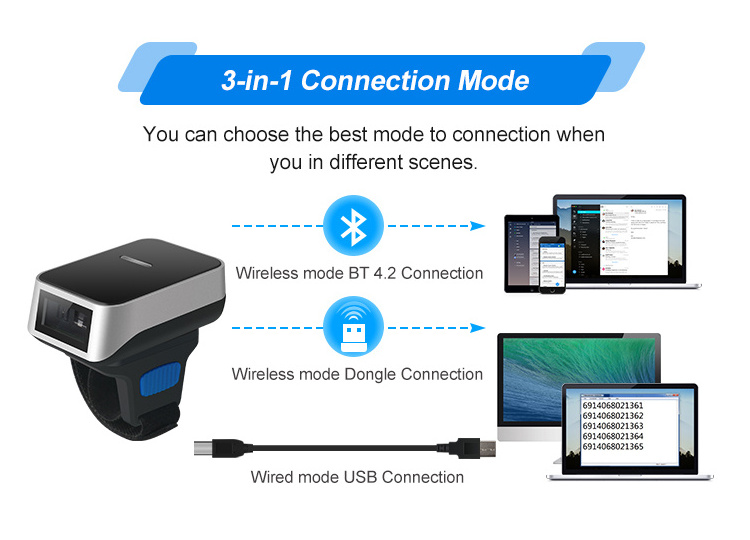

* Mode: BT(HID,SPP,BLE), wired, connected with PC, mobile phone easily.
* Read all mainstream 1D barcodes in the market easily.(4mil)
* 100,000 data storage capacity.
* BT 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
* Mode: BT(HID,SPP,BLE), wired, connected with PC, mobile phone easily.
Details Images
Product Parameters
Performance
|
Scan Type
|
Linear CCD
|
|
Light Source
|
Visible red light, 625±10nm
|
|
CUP
|
ARM32-bit
|
|
Resolution
|
1500
|
|
Reading precision
|
≥4mil/0.1mm(PCS90%,Code 39)
|
|
Motion tolerance
|
300times/s
|
|
Depth of field
|
60mm-500mm
|
|
Scan mode
|
Manual ,Continuous, Flashing, Command trigger
|
|
prompting mode
|
LED, Buzzer, Vibration
|
|
Reading angle
|
Roll：±360°、Pitch：±60°or greater、Yaw：±55°or greater）
|
|
Print contrast
|
≥25%
|
|
Ambient Light
|
Dark environment, indoor natural light
|
|
Wireless communication mode
|
Synchronization , storage
|
|
Wireless transmission distance
|
2.4GHz,150m; BT 30m（Open distance）
|
|
Storage
|
16Mb（over 100,000 Product code）
|
|
Battery capacity
|
360mAh
|
|
Battery charging time
|
About 1.5 h
|
|
Continuous working time
|
≥7.5h
|
|
Symbologies
|
UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128， GS1-128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，
Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），Plessey，MSI Plessey，RSS，China Post，etc. |
Physical Parameter
|
Weight
|
≈35g（without cable）
|
|
Dimension
|
L51.5mm * W35mm * H45mm
|
|
Interface
|
Type C
|
|
Communication
|
USB-KBW ,Wireless BT
|
|
Power Supply
|
DC 5V@110mA(work）
|
Environmental
|
operating temperature
|
0℃ to 50℃
|
|
storage temperature
|
-30℃ to 60℃
|
|
Humidity
|
5% to 95%（non-condensing）
|
|
Drop Height
|
1.5m
|
|
Temp. Test
|
30 minutes for high Temp., 30 minutes for low Temp.
|
|
High Temp
|
60℃
|
|
Low Temp
|
-20℃
|
|
Transport vibration test
|
10H@125RPM
|
Accessories List
|
Cable
|
USB, connect the scanner to a host device and charging.
|
|
Receiver
|
Used to receive and transmit scanner data.
|
