Quick Details
-
Brand Name:
-
Allraise
-
Model Number:
-
OR-LST03II-0806-RM
-
Voltage:
-
220V 1P 50HZ, 220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Driver:
-
Electric
-
Cutting Length:
-
800*600MM
-
Size:
-
3200*1100*1100mm
-
Product name:
-
Fully Automatic Graphtec Cutting Plotter Machine Price For Cardboard
-
Max Sheet Size:
-
800*600mm
-
Min Sheet Size:
-
210*297mm
-
Max Cutting speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Control panel:
-
LCD touch screen
-
Rated power:
-
4KW
-
Cutting thickness:
-
≤ 6mm
-
Weight:
-
380KG
Quick Details
-
Paper Feed Width:
-
800mm
-
Cutting Width:
-
600mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Model Number:
-
OR-LST03II-0806-RM
-
Voltage:
-
220V 1P 50HZ, 220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Driver:
-
Electric
-
Cutting Length:
-
800*600MM
-
Size:
-
3200*1100*1100mm
-
Product name:
-
Fully Automatic Graphtec Cutting Plotter Machine Price For Cardboard
-
Max Sheet Size:
-
800*600mm
-
Min Sheet Size:
-
210*297mm
-
Max Cutting speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Control panel:
-
LCD touch screen
-
Rated power:
-
4KW
-
Cutting thickness:
-
≤ 6mm
-
Weight:
-
380KG

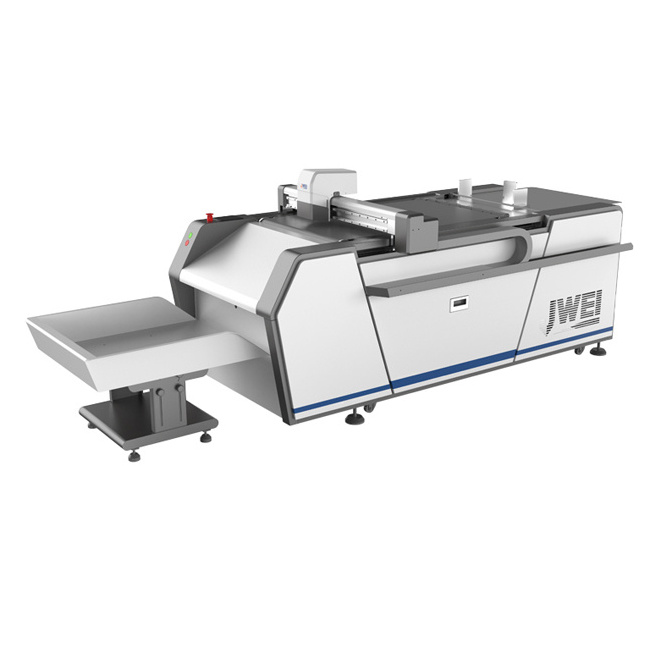

OR-LST03II-0806-RM Fully Automatic Graphtec Cutting Plotter Machine Price For Cardboard
Product Description
| Auto Feeder | |
| Auto Sheet Capacity | <100mm |
| Feeding System | Vacuum feed with clamps mounted on gantry |
| Max Sheet Size | 800*600mm |
| Min Sheet Size | 210*297mm |
| Standard Tools | CCD camera, electric Oscillating tool,full-cut tool, half-cut tool, creasing wheel |
| Optional | Bevel cutting tool, creasing wheel tool for corrugated board |
| Cutting Sysrem | |
| Productivity | 15 sec-45 seconds per SRA3 sheet(average 24s-depending upon complexity) 70 sec/B2 sheet(Varies depends on complexity of material) |
| Max Cutting Speed | 1200mm/s |
| Cutting Thickness | <=6mm |
| Repeat accuracy | 0.1mm |
| Software and Connection | |
| File Form | PLT, DXF,XML,CF2 |
| Interface | Ethernet Port |
| Connect | Lan |
| Green Credentials | |
| Voltage | 220V 50HZ 1P |
| Power | 4KW |
| Size | 3200*1100*1100mm |
| Weight | 380KG |
