Quick Details
-
Mold Height(mm):
-
250 - 680 mm
-
Ejector Number:
-
0
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
1160 cm³
-
Injection Rate (g/s):
-
257 g/s
-
Injection Weight (g):
-
1000 g
-
Screw Speed (rpm):
-
0 - 160 rpm
-
Screw diameter (mm):
-
65 mm
-
Screw L/D Ratio:
-
0
-
Distance between Tie Bars:
-
660*660
-
Weight (KG):
-
12000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
660 mm
-
Model Number:
-
KBD3480
-
Brand Name:
-
KEBID
-
Power (kW):
-
37 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
YES
-
After-sales Service Provided:
-
Video technical support
-
Suitable Materials:
-
Polyethylene
-
Suitable Material Shot Name:
-
Pe
-
Certification:
-
CE ISO9001
-
Energy Saving:
-
Servo Energy Saving System
-
Product name:
-
KEBIDA
-
Clamping force:
-
We have machine from 50ton to 200ton
-
Heating power:
-
22.8KW
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
660mm
-
Distance between Tie Bars(Height)(mm):
-
660mm
-
Plasticizing Capacity(g/s):
-
0
-
Mold Height(mm):
-
250 - 680 mm
-
Ejector Number:
-
0
-
Ejector Stroke(mm):
-
160 mm
-
Ejector Force(kN):
-
70 kN
-
Theoretical Shot Volume(cm³):
-
1160 cm³
-
Injection Rate (g/s):
-
257 g/s
-
Injection Weight (g):
-
1000 g
-
Screw Speed (rpm):
-
0 - 160 rpm
-
Screw diameter (mm):
-
65 mm
-
Screw L/D Ratio:
-
0
-
Distance between Tie Bars:
-
660*660
-
Weight (KG):
-
12000 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
660 mm
-
Model Number:
-
KBD3480
-
Brand Name:
-
KEBID
-
Power (kW):
-
37 kW
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
YES
-
After-sales Service Provided:
-
Video technical support
-
Suitable Materials:
-
Polyethylene
-
Suitable Material Shot Name:
-
Pe
-
Certification:
-
CE ISO9001
-
Energy Saving:
-
Servo Energy Saving System
-
Product name:
-
KEBIDA
-
Clamping force:
-
We have machine from 50ton to 200ton
-
Heating power:
-
22.8KW

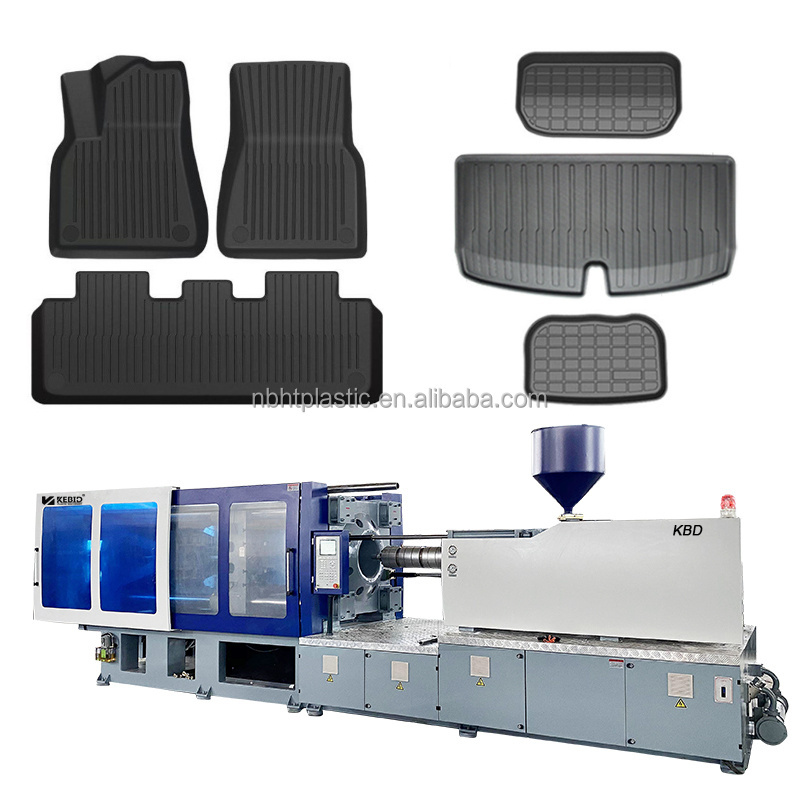

Kebida brand High quality small plastic part for the car headlight nail steering wheel Auto parts making machine
Product Description
Specification
|
ITEM
|
KBD3480
|
|
|
INJECTION UNIT
|
|
|
|
Screw Diameter
|
65mm
|
|
|
Shot Volume（Theoretical）
|
1160cm³
|
|
|
Injection Weight（PS）
|
1000g
|
|
|
Injection Pressure
|
195Mpa
|
|
|
Screw Speed
|
0-160rpm
|
|
|
CLAMPING UNIT
|
|
|
|
Clamping Force
|
3480KN
|
|
|
Toggle Stroke
|
660mm
|
|
|
Space Between Tie Bars
|
660mm×660mm
|
|
|
Max.mold Height
|
680mm
|
|
|
Min.mold Height
|
250mm
|
|
|
Ejector Stroke
|
160mm
|
|
|
Ejector Tonnage
|
70g
|
|
|
OTHERS
|
|
|
|
Pump Moter Power
|
37Kw
|
|
|
Heating Power
|
22.8Kw
|
|
|
Machine Dimension（L×W×H）
|
6.9m×2.0m×2.35m
|
|
|
Machine Weight
|
12000kg
|
|
|
Certification
|
CE ISO9001
|
|
Packing & Delivery
KEBID BRAND Plastic child Toy car shovel candy box injection molding machine
Standard export packing
