Rotocure 25t Rubber Platen Mesin Vulcanizing Press For Sheets Having Width Of 48"

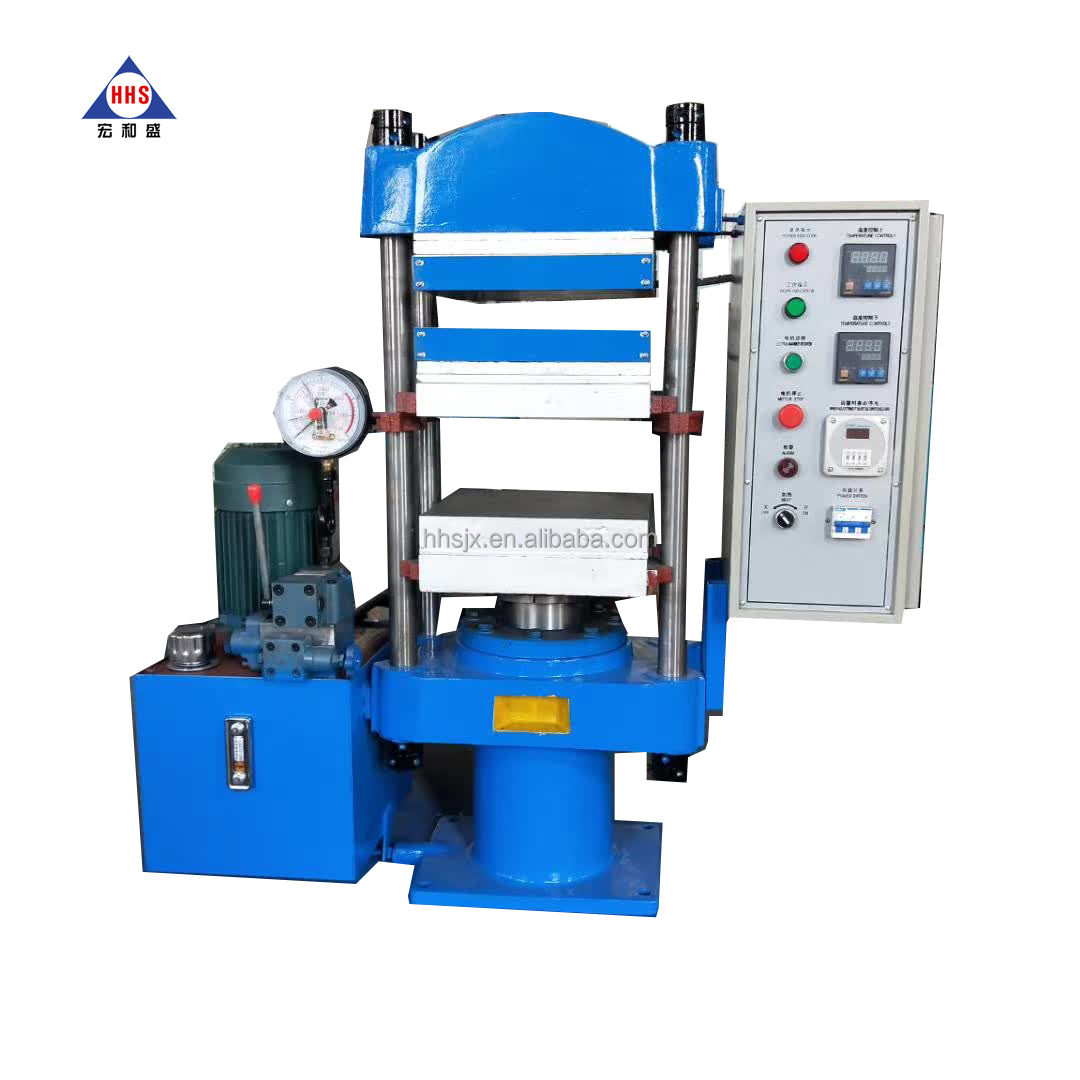

Plate Vulcanizing Press

I. Purpose: plate vulcanizing machine is a new type of hydraulic plate vulcanizing machine. This machine is suitable for vulcanization of all kinds of rubber products . It is a necessary equipment for forming and processing plastics, rubber foams, bakelite products and various thermosetting materials .

This model has the following characteristics: 1. This machine is a combination of mechanical, electrical and hydraulic technologies , with semi-automatic performance. 2. the host column and frame type two structures, the main body is bright, clean, rigid, hydraulic cylinder on the beam, mobile platform, using ductile iron, the host performance is stable, durable. 3. the hydraulic part adopts two ways, one is a single pump drive , simple structure, convenient, reliable performance, generally used in small tonnage equipment. one is a combination of double pump , speed, pressure, generally used in large tonnage equipment , hydraulic schematic diagram attached. 4. Domestic famous brand products are adopted in the electrical parts, with reliable quality and more accurate temperature control. The heating connection part adopts high temperature resistant wire connection with good reliability. 5. The electric heating system adopts tubular resistance heater , which is installed in the hot plate and heated by the heating plate (customers without boiler). It is an ideal heating method with low power consumption, no glue forming, even temperature and good insulation . 6. The machine has excellent material selection, wide processing range, and various indicators can meet the standard requirements of HG/ t3034-1999, with a good price performance ratio.

II. Structural Features This machine has two heating types of steam and electricity . It is mainly composed of the main engine, hydraulic system and electric control system. The oil tank is installed on the left side of the main engine, which is not affected by the temperature of the hot plate. The operating valve is installed on the left side of the main engine. The electric cabinet shall be separately installed on the right side of the main engine. Thus can guarantee the hot plate temperature uniformity, the hot plate temperature automatic control, the temperature control precision is high, the processing product quality is good. Features: no pressure drop, no oil leakage, low noise, high temperature control accuracy, flexible operation .
