Lighter quality
Better heat dissipation
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Genk
-
Dimension(L*W*H):
-
42*44*50cm
-
Weight:
-
555
-
Rated power/speed:
-
5.8/3600
-
Marketing Type:
-
New Tech
-
Model:
-
D186E
-
Starting system:
-
Recoil
-
Electric-starting:
-
Optional
-
Oil type air cleaner:
-
Optional
-
Size&Weight:
-
42*44*50 cm /53 kg
-
Color/logo Customize:
-
Yes
-
Drop shipping:
-
Yes
-
Parts support:
-
Yes
-
Function:
-
Power Support
Quick Details
-
Displacement:
-
418
-
Emission Standard:
-
EURO 5
-
Power:
-
5.8
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Genk
-
Dimension(L*W*H):
-
42*44*50cm
-
Weight:
-
555
-
Rated power/speed:
-
5.8/3600
-
Marketing Type:
-
New Tech
-
Model:
-
D186E
-
Starting system:
-
Recoil
-
Electric-starting:
-
Optional
-
Oil type air cleaner:
-
Optional
-
Size&Weight:
-
42*44*50 cm /53 kg
-
Color/logo Customize:
-
Yes
-
Drop shipping:
-
Yes
-
Parts support:
-
Yes
-
Function:
-
Power Support
Product Overview

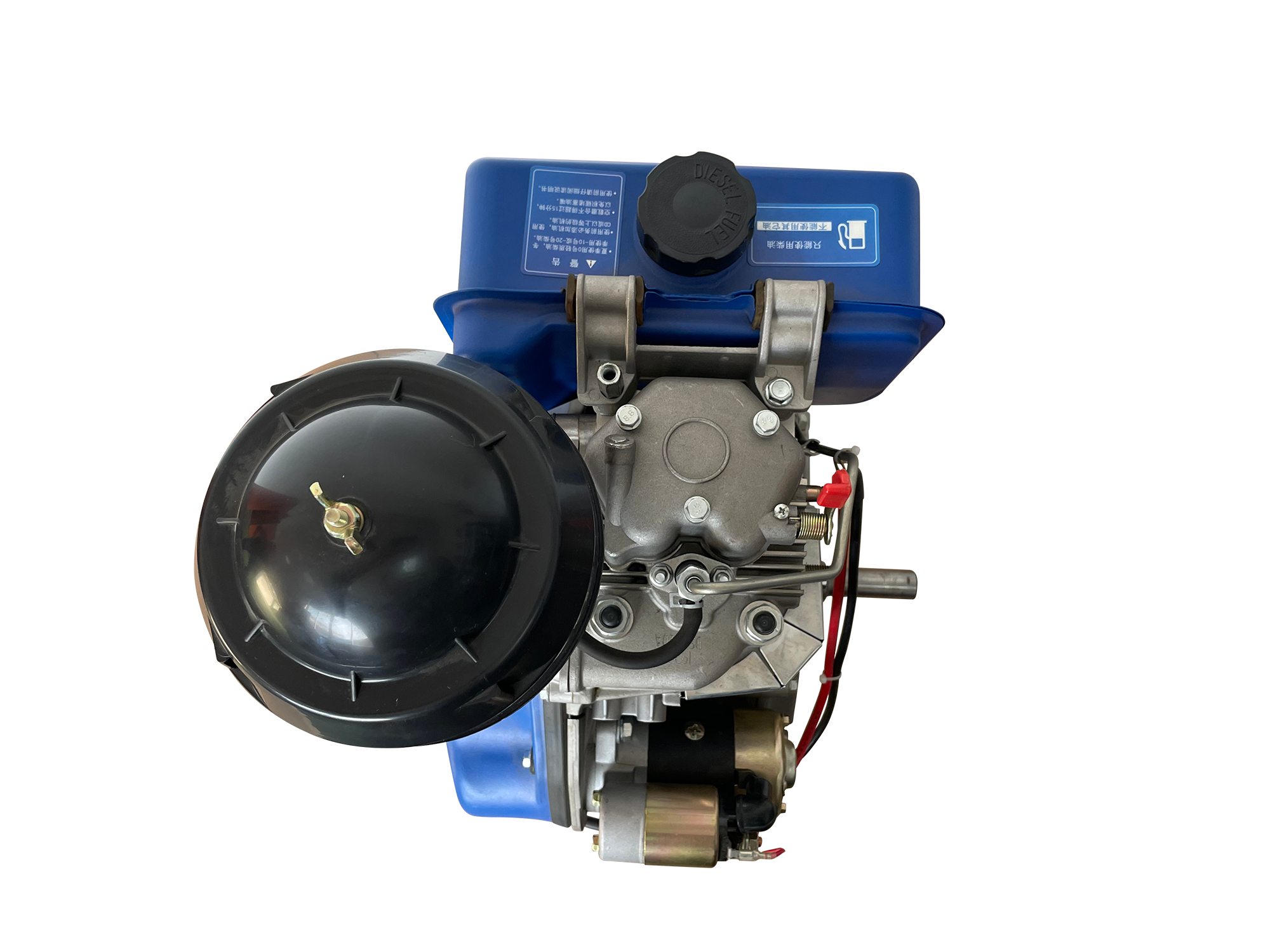

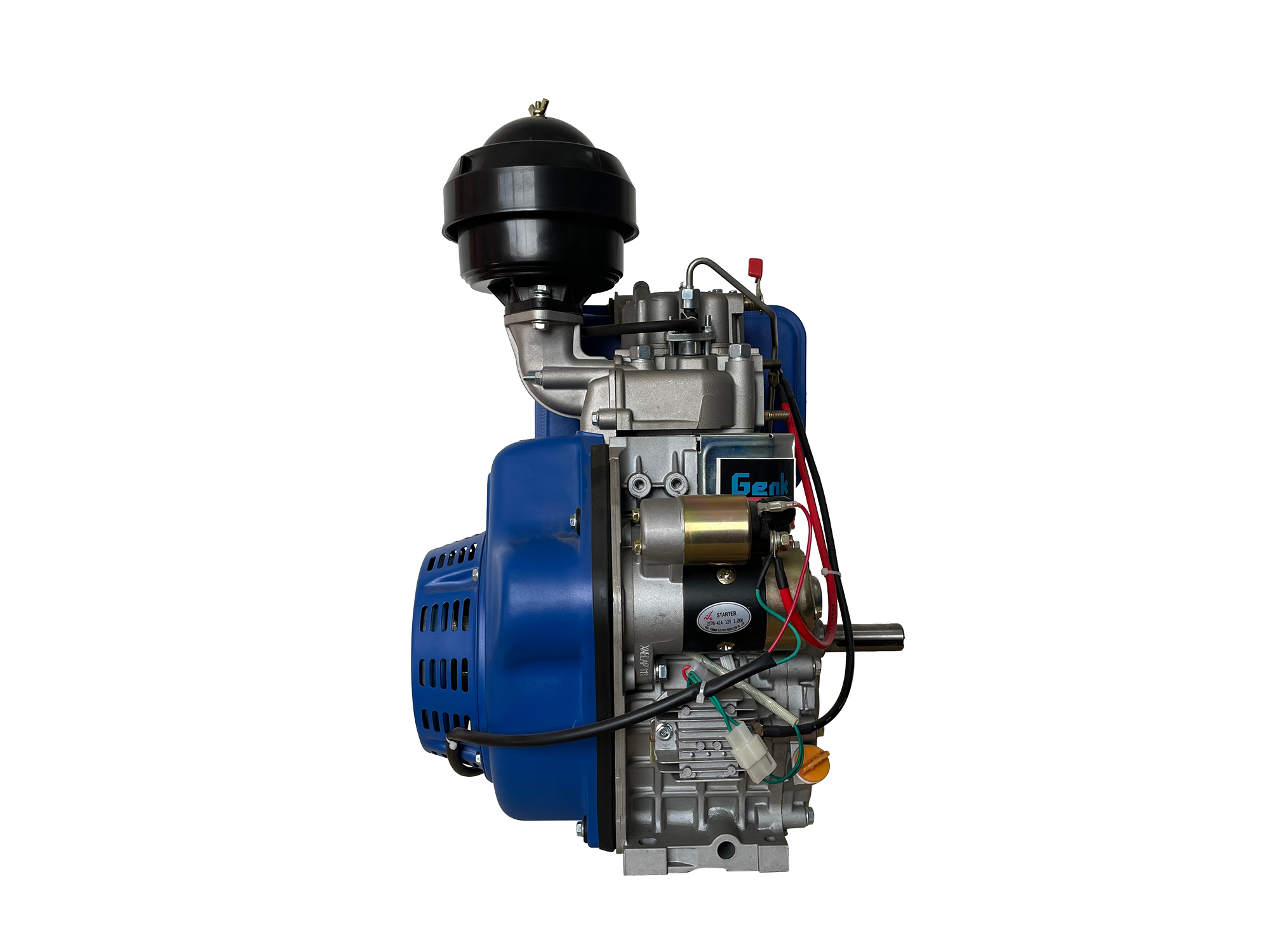

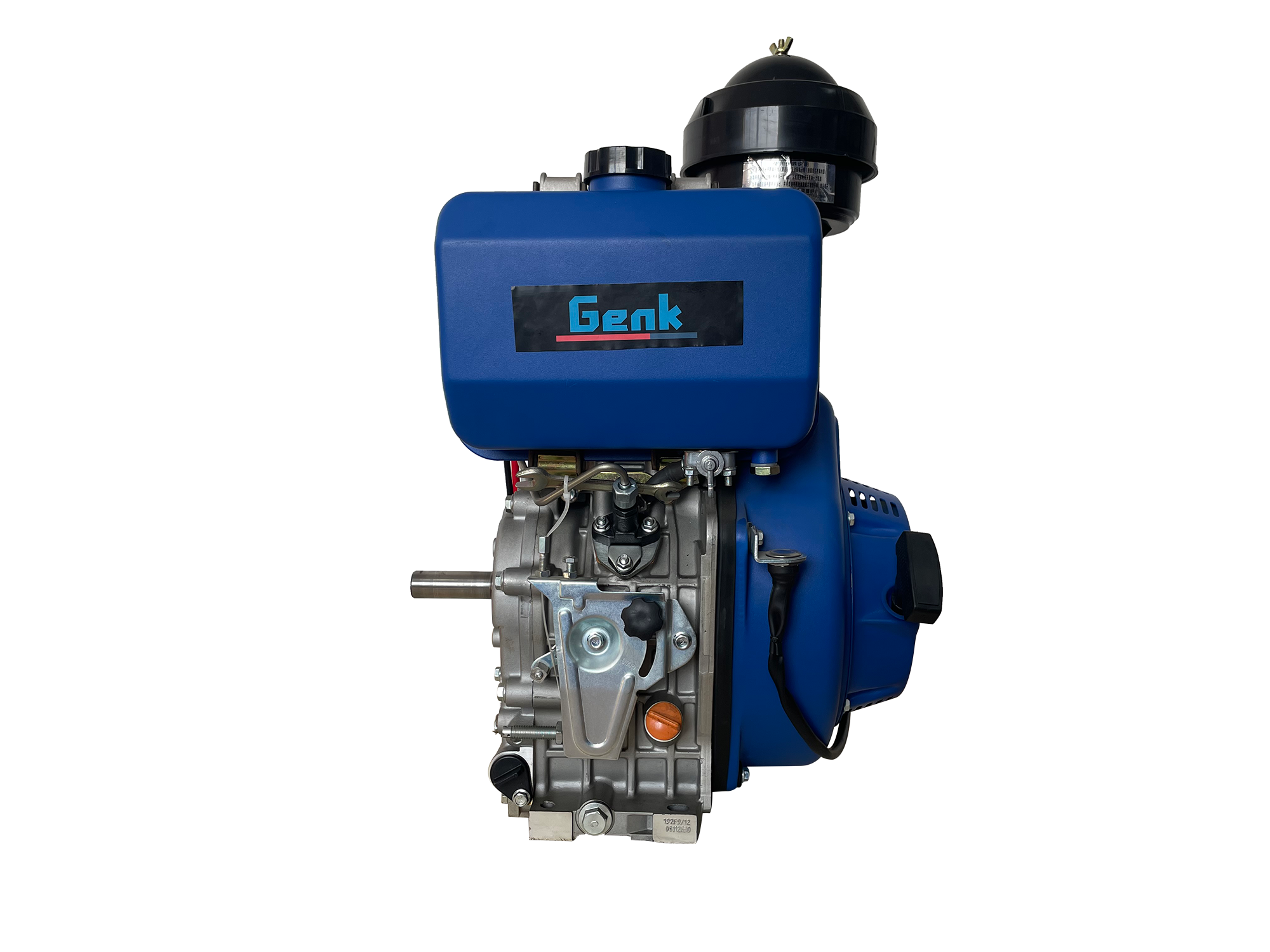

D186E
Diesel engine with 5.8 kw power and Low fuel consumption
FEATURES AT A GLANCE
Lighter quality
Better heat dissipation
Stable voltage
Better for battery charging
More stable and safer
As Machinery factory
we give our buyer with different crankshaft size customization for best power solution
Taper Shaft
Thread shaft
Key Shaft
PRODUCT SPECIFICATIONS
|
Model
|
D173R
|
D178R
|
D178R-Slow
|
D186R
|
D186R-slow
|
D192R
|
D11000E
|
||||||
|
Engine type
|
Single Cylinder ,Vertical ,Air-cooled, Four Stroke
|
Single
|
Single
|
Single
|
Single
|
Single
|
Single
|
||||||
|
Bore/Stroke-mm
|
73*59
|
78*62
|
78*62
|
86*72
|
86*72
|
92*75
|
100*80
|
||||||
|
Displacement-L
|
0.247
|
0.296
|
0.296
|
0.418
|
0.418
|
0.499
|
0.6951
|
||||||
|
Compression Ratio
|
20:1
|
20:1
|
20:1
|
19.5:1
|
19.5:1
|
19.5:1
|
19:1
|
||||||
|
Rated Speed-rpm
|
3000/
3600
|
3000/
3600
|
1500/
1800
|
3000/
3600
|
1500/
1800
|
3000/
3600
|
3000/
3600
|
||||||
|
Rated Power-KW
|
3.6
|
3.7
|
4.0
|
5.8
|
6.6
|
8.6
|
9.5
|
||||||
|
Rated Power-hp
|
4.0
|
4.2
|
4.5
|
6.5
|
7.0
|
9.2
|
10
|
||||||
|
Starting Type
|
Recoil/Electric(Optional 100% Copper core Electric Start)
|
Recoil/Electric
|
Recoil/Electric
|
Recoil/Electric
|
Recoil/Electric
|
|
Electric
|
||||||
|
Tank Volume-L
|
2.5
|
3.5
|
3.5
|
5.5
|
5.5
|
5.5
|
5.5
|
||||||
|
Oil Capacity-L
|
0.75
|
1.10
|
1.10
|
1.65
|
1.65
|
1.65
|
2.0
|
||||||
|
Fuel Brand
|
Diesel(summer),-10#winter)
|
Diesel(summer),-10#winter)
|
Diesel(summer),-10#winter)
|
Diesel(summer),-10#winter)
|
Diesel(summer),-10#winter)
|
|
|
||||||
|
The Oil Brand
|
SAE10W30(grode CD or above
|
SAE10W30(grode CD or above
|
SAE10W30(grode CD or above
|
SAE10W30(grode CD or above
|
SAE10W30(grode CD or above
|
|
|
||||||
|
Overall Dimensions-cm
|
34*38*42
|
38*42*45
|
38*42*45
|
42*44*50
|
42*45*50
|
42*44*50
|
42*49*55
|
||||||
|
Net Weight-kg
|
Recoil:27
Electric:31
|
Recoil:33
Electric:38
|
Recoil:33
Electric:38
|
Recoil:48
Electric:53
|
Recoil:48
Electric:53
|
Recoil:55
Electric:60
|
Electric:
60
|
||||||
|
Turn To
|
Clockwise（from the flywheel)
|
Clockwise（from the flywheel
|
Clockwise（from the flywheel
|
Clockwise（from the flywheel
|
Clockwise（from the flywheel
|
|
|
||||||
Genk Engine Parts Detailed Advantage
Certifications
ISO 9001
Top level Produce system
CE
Safe production
TUV
High quality product
