Quick Details
-
Model Number:
-
PC11B, PC11BQ
-
Material:
-
Stainless Steel 316, 304
-
Accuracy:
-
0.25%
-
Pressure range in pa:
-
-100kpa...0~10kpa...100MPa
-
Pressure range in bar:
-
-1bar ...0~0.1bar...1000bar
-
Pressure range in psi:
-
-14.5psi ...0~1.5psi...14500psi
-
Pressure Reference:
-
Gauge, Absolute, Sealed Gauge, Vacuum, Absolute pressure
-
Excitation:
-
1.5mA, 10VDC
-
Operating Temp.:
-
-40℃-125℃
-
Input Impedance:
-
2kΩ-5kΩ
-
Company:
-
Manufacturer/ Factory
-
Type:
-
difused silicon oll filled pressure sensor
-
Theory:
-
wheatstone bridge pressure sensor
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WTsensor
-
Model Number:
-
PC11B, PC11BQ
-
Material:
-
Stainless Steel 316, 304
-
Accuracy:
-
0.25%
-
Pressure range in pa:
-
-100kpa...0~10kpa...100MPa
-
Pressure range in bar:
-
-1bar ...0~0.1bar...1000bar
-
Pressure range in psi:
-
-14.5psi ...0~1.5psi...14500psi
-
Pressure Reference:
-
Gauge, Absolute, Sealed Gauge, Vacuum, Absolute pressure
-
Excitation:
-
1.5mA, 10VDC
-
Operating Temp.:
-
-40℃-125℃
-
Input Impedance:
-
2kΩ-5kΩ
-
Company:
-
Manufacturer/ Factory
-
Type:
-
difused silicon oll filled pressure sensor
-
Theory:
-
wheatstone bridge pressure sensor
Product Description

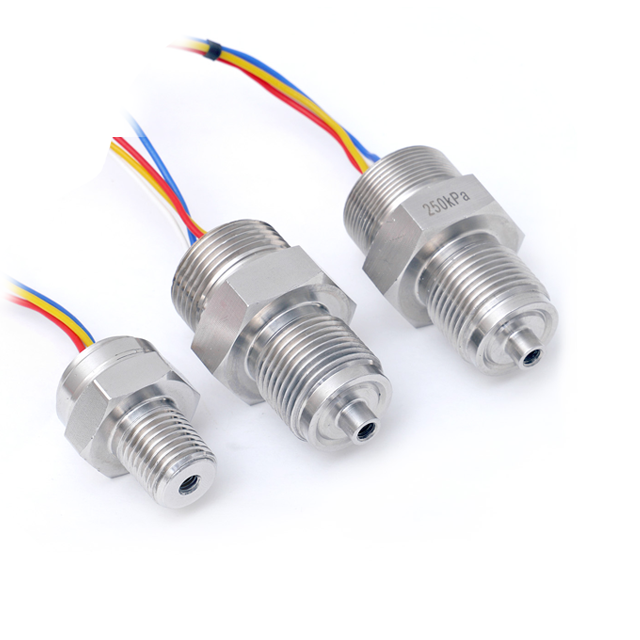

PC11B/PC11-BQ
Fully Welded Corrosion Resistant Pressure Sensor For
Hydrostatic Fire Gas Liquid
Feature
■ Focusing on customer customization
■ High reliability pressure chip
■ Fully welded with joints, small-sized structure
■ High performance and reliability
■ Wide temperature compensation
■ Gauge pressure, absolute pressure, sealing pressure
■ Optional constant current and constant voltage excitation
■ 18 months warranty period
Applications
■ Supporting pressure transmitter manufacturers
■ Supporting liquid level transmitter manufacturers
■ Fire protection and medical oxygen pressure matching
■ Combustible gas detection
Industry
■ Pressure control equipment
■ Hydraulic equipment
■ Liquid level control equipment
■ Gas equipment
■ Low temperature equipment
Focus on customer customization
It has high reliability , and is compact in size , making it the best choice for making highly reliable and high-quality pressure and liquid level transmitters .
Specification
|
Electrical performance parameters
|
|
|
|
Range range
|
-100kPa…0～10kPa…100MPa
-1bar …0～0.1bar…1000bar
-14.5psi …0～1.5psi…14500psi
|
|
|
Impedance
|
Constant current: 2k Ω~5k Ω; Constant voltage: 3k Ω~18k Ω.
|
|
|
Electrical connections
|
Gold-plated Kovar pins or silicone flexible wires
|
|
|
Compensation temperature
|
0 ℃~60 ℃ (range ≤ 70kPa)- 10 ℃~70 ℃ (other ranges).
|
|
|
Operation temperature
|
-40℃～120℃
|
|
|
Storage temperature
|
-40℃～120℃
|
|
|
Insulation resistance
|
≥200MΩ/250VDC
|
|
|
Response time
|
≤ 1ms (rising to 90% FS)
|
|
|
Measurement medium
|
All liquids and gases compatible with 316L
|
|
|
Mechanical vibration
|
20g（20～5000HZ）
|
|
|
Impact
|
100g（10ms）
|
|
|
Durability
|
1×10
6
(cycles)
|
|
FAQ
1. Are you manufacturer or trading company?
We are manufacturer which focuses on pressure sensor for 33 years.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. Why should you buy from us not from other suppliers?
【Top leading brand in China.】 WTsensor is one of the largest manufacturer of diffused silicon pressure sensors in China, with more than 33 years' experiences in research, development and production of pressure sensors, level sensors, temperature sensors and pressure switch.
【Manufacturer】High quality with low price.
【Satisfied after-sale service】WTsensor professional engineers are at your service.
4. What services can we provide?
Accepted Delivery Terms: FCA；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, PayPal;
Language Spoken: English, Chinese, Korean, Russian.
5.What international certificates do you have?
ISO9001, CE, IATF 16949, RoHS REACH, ATEX, SIL, EMC, ect.
6.What is the lead time of your product?
Stocks are available for some products. The typical lead time is 8~14 working days for product without customization. Note: lead time may vary base on different products. Please contact us for detailed lead time.
7. What is the warranty of your products?
Our warranty time is 18 months after shipment.
8. Do you provide customized products?
Yes, we can laser mark your logo, model and product information according to your requirement. We provide OEM and ODM service.
