- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
OP
-
Output Frequency:
-
47 ~ 63Hz
-
Type:
-
Consant Current
-
Certification:
-
CE ROHS
-
Protections:
-
Short Circuit Overtemp Overload Noload
-
Efficiency:
-
74%
-
Power Factor:
-
0.47
-
Usage:
-
led bulb light
-
Working Temp:
-
-20~+45℃
Quick Details
-
Warranty(Year):
-
2-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topxin
-
Model Number:
-
OP
-
Output Frequency:
-
47 ~ 63Hz
-
Type:
-
Consant Current
-
Certification:
-
CE ROHS
-
Protections:
-
Short Circuit Overtemp Overload Noload
-
Efficiency:
-
74%
-
Power Factor:
-
0.47
-
Usage:
-
led bulb light
-
Working Temp:
-
-20~+45℃
Applications:
Customize:
All kinds of LED driver can be customized,just feel free to contact us through the following contact information.
Tel
: 0086-755 81465961
Fax
:0086-755 27399932
Eamil
:info@topxin-led.com
Skype
:jasonpt1983
Technical Data
|
Input Voltage
|
200-240V
|
|
Frequency Range
|
50/60Hz
|
|
Efficiency
|
74%
|
|
PF
|
0.47
|
|
Ripple & noise (max.)
|
2.2VAC
|
|
Working Temp:
|
-20...+65℃
|
|
Working Humidity
|
20~80%RH non-condensing
|
|
Storage Temp.&Humidity
|
-30～+80℃, 10~95%RH
|
|
Vibration
|
10～500HZ,5G 12min/1cycle,period for 72min.each along X,Y,Z axes
|
|
Safety Standards
|
Passed IP20 certification: design reference IEC 61347-2-13,IEC 61347-1
|
|
Withstand Voltage
|
I/P-O/P:2KVAC * 5mA(max)
|
|
Isolation Resistance
|
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
|

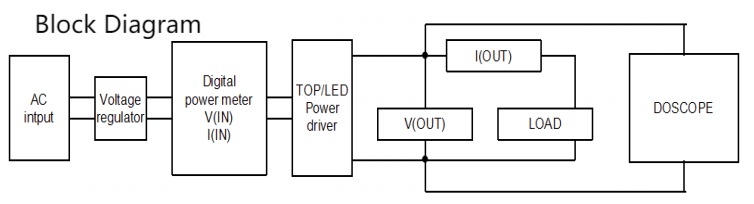

Diagrams
