certificates:CE ISO Founded in:2004
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kingvictor
-
Dimension(L*W*H):
-
L)1050*(w)700*(H)1800mm
-
Product name:
-
automatic Nylon triangle tea bag packing machine
-
Machine material:
-
304 Stainless Steel
-
Bag size:
-
3 sides sealing
-
Inner and outer bag length:
-
50~75mm,85~120mm
-
Inner and outer bag width:
-
50~75mm,75~95mm
-
Packing speed:
-
10~40 bags/min
-
Labeing size:
-
25*25mm
-
Displacement:
-
0.6m3/min
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Capping, COATING, Sealing, BOXING, Embossing, Gluing, SLITTING
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kingvictor
-
Dimension(L*W*H):
-
L)1050*(w)700*(H)1800mm
-
Product name:
-
automatic Nylon triangle tea bag packing machine
-
Machine material:
-
304 Stainless Steel
-
Bag size:
-
3 sides sealing
-
Inner and outer bag length:
-
50~75mm,85~120mm
-
Inner and outer bag width:
-
50~75mm,75~95mm
-
Packing speed:
-
10~40 bags/min
-
Labeing size:
-
25*25mm
-
Displacement:
-
0.6m3/min
Foshan KingVictor Machinery Co. Ltd
Factory area:11,000M² Employees:300

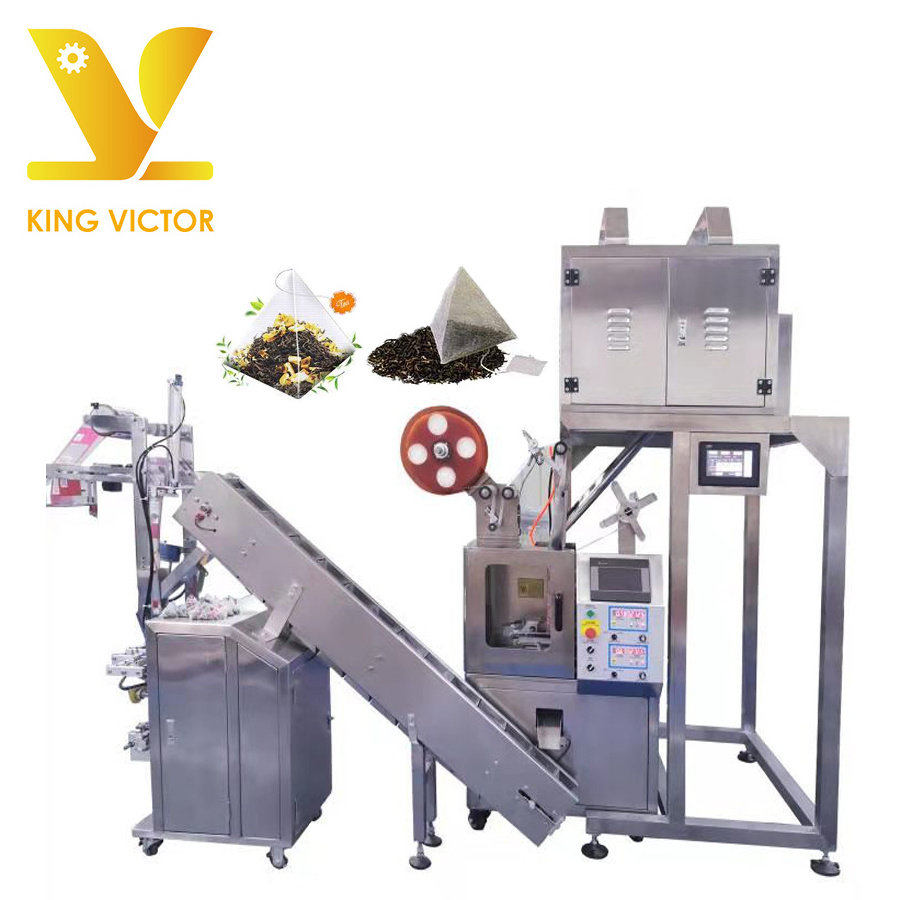

photo of machine
pyramid tea bag/triangle bag packing machine:
it can pack t
ea , medicine, food, chemical, activated carbon and other granular solid materials packaging.
Support non woven farbic material
Hopper
(1)
1. Made of 304 stainless steel which is comply with the
standards of SC certification of food and GMP certification of drug.
2.

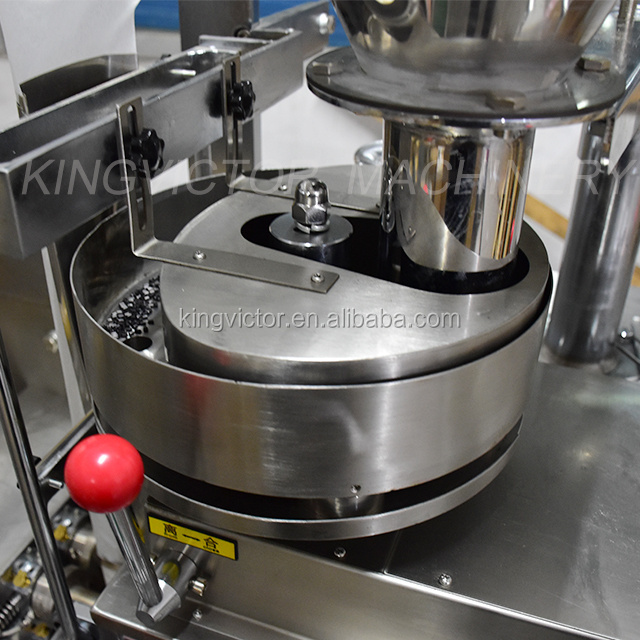

Volumettric cup filler

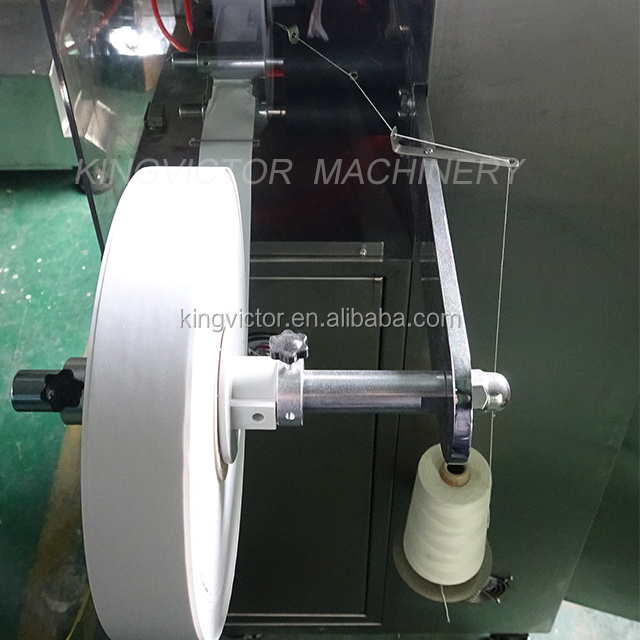

Roll Film
(1)
Pack material into inside bag,then put it into outer bag. Finish two bags on the same machine.
(2) Three-side sealing, can sealing filter paper and other heat-sealing material
(2) Three-side sealing, can sealing filter paper and other heat-sealing material
Bag Former
(1)
High precision of bag making, error is less than 0.5mm
(2)Can provide customers with back sealing bags, hanging hole bags,3/4 sides sealing bags,etc.
Product Parameter
|
Model
|
KV-NWS
|
|
Packaging speed
|
12-40bags/min
|
|
inner and outer bag width
|
50~75mm
85~95mm
|
|
inner and outer bag lengh
|
50~75mm
85~120mm
|
|
Labeling side
|
25*25mm
|
|
Power Specifications
|
220V
50/60Hz
|
|
Equipment power
|
9.7Kva
|
Packing products
successful case
Our factory
Design department
Sales department
After-sales Service
Foshan Kingvictor Machinery Co., Ltd, plant area of over 11,000 square meters, respectively, the production of various kinds of packing machine.Sales department has more than 15 years experience in aftermarket master 26 people, responsible for domestic and international sale equipment installation and commissioning, operator training and technical maintenance.
Packing & Delivery
We wrap the machine in film ,put it Into the wooden box.
And put the machine in the lorry,then transport to the port or airport.
Our Customers
Customers from Saudi Arabia.
Customers from Germany.
Customers from Spain.
Customers from Nigeria.
Customers from America
Customers from Turkey
After sales service
Certifications
ISO9001,ISO14001,ISO22000
OHSAS18001,BSCI,SA8000
CE,SGS
