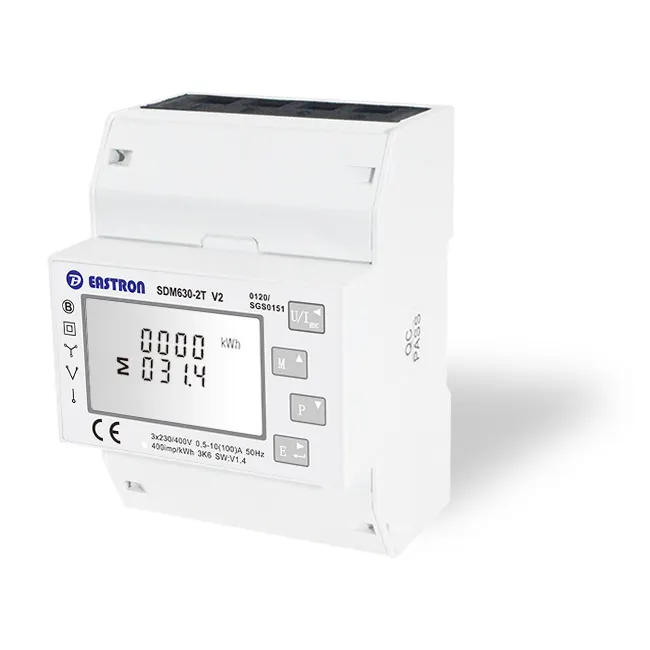

SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station
SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station

SDM630-2T MID CE Approved RS485 Modbus RTU Multi-Function Power Meter For Charging Station

FOB Reference Price: Get Latest Price
≥100 Pieces
US $55
≥2000 Pieces
US $53
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
EASTRON
Model Number:
SDM630-2T
Supply Voltage:
230V / 110V
Operating Temperature:
-25~+55°
Dimensions:
100*72*66
Product name:
Dual Source Energy Meter
Function:
Measures Electricity Board ( EB) and Diesel Generator ( DG)
Display:
kWh, kVarh, P,Q,S,U,I,PF,Hz,Dmd etc
Communication:
Modbus RTU
Communication address:
1~247
Transmission mode:
Half duplex
Data type:
Floating point
Electrostatic Discharge:
IEC 61000-4-2
Immunity to Radiated Fields:
IEC 61000-4-3
Certifications:
MID, CE, ROHS

Quick Details

Measuring Range:
999999.99kWh
Accuracy Class:
Class 1.0 / Class 0.5s
Place of Origin:
China
Brand Name:
EASTRON
Model Number:
SDM630-2T
Supply Voltage:
230V / 110V
Operating Temperature:
-25~+55°
Dimensions:
100*72*66
Product name:
Dual Source Energy Meter
Function:
Measures Electricity Board ( EB) and Diesel Generator ( DG)
Display:
kWh, kVarh, P,Q,S,U,I,PF,Hz,Dmd etc
Communication:
Modbus RTU
Communication address:
1~247
Transmission mode:
Half duplex
Data type:
Floating point
Electrostatic Discharge:
IEC 61000-4-2
Immunity to Radiated Fields:
IEC 61000-4-3
Certifications:
MID, CE, ROHS
Product Description

Dual Source Measurement

Product Parameters
Electrical characteristics
Type of measurement
RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement accuracy
Power
IEC 61557-12 Class 0.5
Active Energy
IEC 62053-22 Class 0.5S, IEC 61557-12 Class 0.5
Reactive Energy
IEC62053-23 Class 2, IEC 61557-12 Class 2
Frequency
±0.1%
Current
±0.2%
Voltage
±0.2%
Power Factor
±0.01
Input-Voltage
Un
3 x230 / 400 V ac
3 x230 / 400 V ac
80%~120% of Un
Impedance
1M Ω
Frequency
50Hz/60Hz
Input- Current
Basic Current (Ib)
10A
Max Current
100A
Operational Current Range
0.4% Ib~Imax
Over current withstand
30Imax for 0.01s
Mechanical Characteristics
Weight
400g
IP Degree of Protection (IEC 60529)
IP51 front display
Mounting Position
Vertical
Panel Thickness
1~5mm
Material of meter case
Self-extinguishing UL 94 V-0
Mechanical environment
M1
Environmental Characteristics
Operating Temperature
-25 to 55°C
Storage Temperature
Storage Temperature
Humidity Rating
<95% RH at 50 °C (non-condensing)
Pollution Degree
2
Altitude
2000m
Electromagnetic Compatibility
Electrostatic Discharge
IEC 61000-4-2
Immunity to Radiated Fields
IEC 61000-4-3
Immunity to Fast Transients
IEC 61000-4-4
Immunity to Impulse Waves
IEC 61000-4-5
Conducted Immunity
IEC 61000-4-6
Immunity to Magnetic Fields
IEC 61000-4-8
Immunity to Voltage Dips
IEC 61000-4-11
Radiated Emissions
EN55011 Class A
Conducted Emissions
EN55011 Class A
Radiated Emissions
IEC 61000-3-2
Safety
Measurement Category
Per IEC61010-1 , CAT III
Over voltage Category
CAT III
Protective Class
II
Communications
Interface standard and protocol
RS485 and MODBUS RTU
Communication address
1~247
Transmission mode
Half duplex
Data type
Floating point
Transmission distance
1000m Maximum
Parity
None (default), Odd, Even
Stop bits
1 or 2
Response time
<100 mS
