Quick Details
-
Brand Name:
-
tongjia
-
Voltage:
-
380V
-
Screw L/D Ratio:
-
30
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
25 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1400 mm
-
Mold Platen Size(Height)(mm):
-
1600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.2 m³/min
-
Die Head Heating Power(kW):
-
35 kW
-
Accumulator Capacity(L):
-
40 L
-
Power (kW):
-
190
-
Weight (T):
-
28
-
Model Number:
-
TJ-HB230L
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Clamping Force (kN):
-
1000
-
Output (kg/h):
-
180 kg/h
-
Place of Origin:
-
China
-
Brand Name:
-
tongjia
-
Voltage:
-
380V
-
Screw L/D Ratio:
-
30
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
25 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1400 mm
-
Mold Platen Size(Height)(mm):
-
1600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
1.2 m³/min
-
Die Head Heating Power(kW):
-
35 kW
-
Accumulator Capacity(L):
-
40 L
-
Power (kW):
-
190
-
Weight (T):
-
28
-
Model Number:
-
TJ-HB230L
-
After Warranty Service:
-
Field maintenance and repair service
Product Description
|

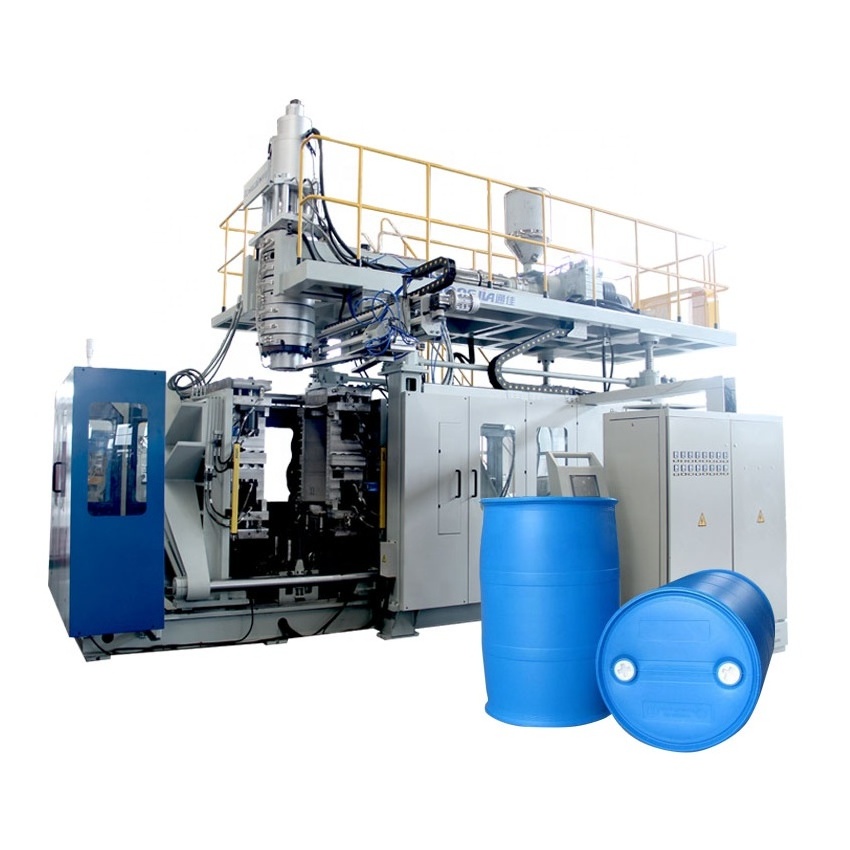

SPECIFICATIONS FOR TJ-HB230L
|
|
|
|
|||
|
Specifications
|
Max.Product capacity
|
L
|
230
|
|||
|
|
Machine dimension
|
M
|
8.4*4.9*5.5
|
|||
|
|
Machine weight
|
T
|
38
|
|||
|
Clamping Unit
|
Clamping Force
|
780-850KN
|
360-560
|
|||
|
|
Distance between platens
|
mm
|
800-1800
|
|||
|
|
Mold platen size
|
mm
|
1320*1600
|
|||
|
Extruder Unit
|
Screw diameter
|
mm
|
100
|
|||
|
|
Screw L/D ratio
|
L/D
|
30
|
|||
|
|
Plasticising capacity
|
kg/hr
|
280
|
|||
|
Power
|
Total power consumption
|
KW
|
248
|
|||
|
|
Averange power consumption
|
KW
|
145
|
|||
|
|
Hydraulic drive power
|
KW
|
31
|
|||
|
Die-head
|
Die head heating power
|
KW
|
45
|
|||
|
|
Max.diameter of die
|
mm
|
450
|
|||
|
|
Accumulator capacity
|
L
|
25
|
|||
Detailed Image
Our Service
Pre-Sales Service
After-Sales Service
Packing & Delivery
Standard export packaging
Why choose us
FAQ
Q1:What’s your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller’s factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What’s your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller’s factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What’s your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
