Quick Details
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
49 cm³
-
Injection Rate (g/s):
-
30 g/s
-
Injection Weight (g):
-
45 g
-
Screw Speed (rpm):
-
1 - 215 rpm
-
Screw diameter (mm):
-
25 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
260mm
-
Weight (KG):
-
650 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
JT-150
-
Brand Name:
-
JINTONG
-
Power (kW):
-
4.2 kW
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO9001 CE
-
machine name:
-
15T small and cheap injection molding machine
-
machine color:
-
grey blue yellow green
Quick Details
-
Plasticizing Capacity(g/s):
-
45
-
Mold Height(mm):
-
45 - 160 mm
-
Ejector Stroke(mm):
-
35 mm
-
Ejector Force(kN):
-
13 kN
-
Theoretical Shot Volume(cm³):
-
49 cm³
-
Injection Rate (g/s):
-
30 g/s
-
Injection Weight (g):
-
45 g
-
Screw Speed (rpm):
-
1 - 215 rpm
-
Screw diameter (mm):
-
25 mm
-
Screw L/D Ratio:
-
22
-
Distance between Tie Bars:
-
260mm
-
Weight (KG):
-
650 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
JT-150
-
Brand Name:
-
JINTONG
-
Power (kW):
-
4.2 kW
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ISO9001 CE
-
machine name:
-
15T small and cheap injection molding machine
-
machine color:
-
grey blue yellow green
Product Description

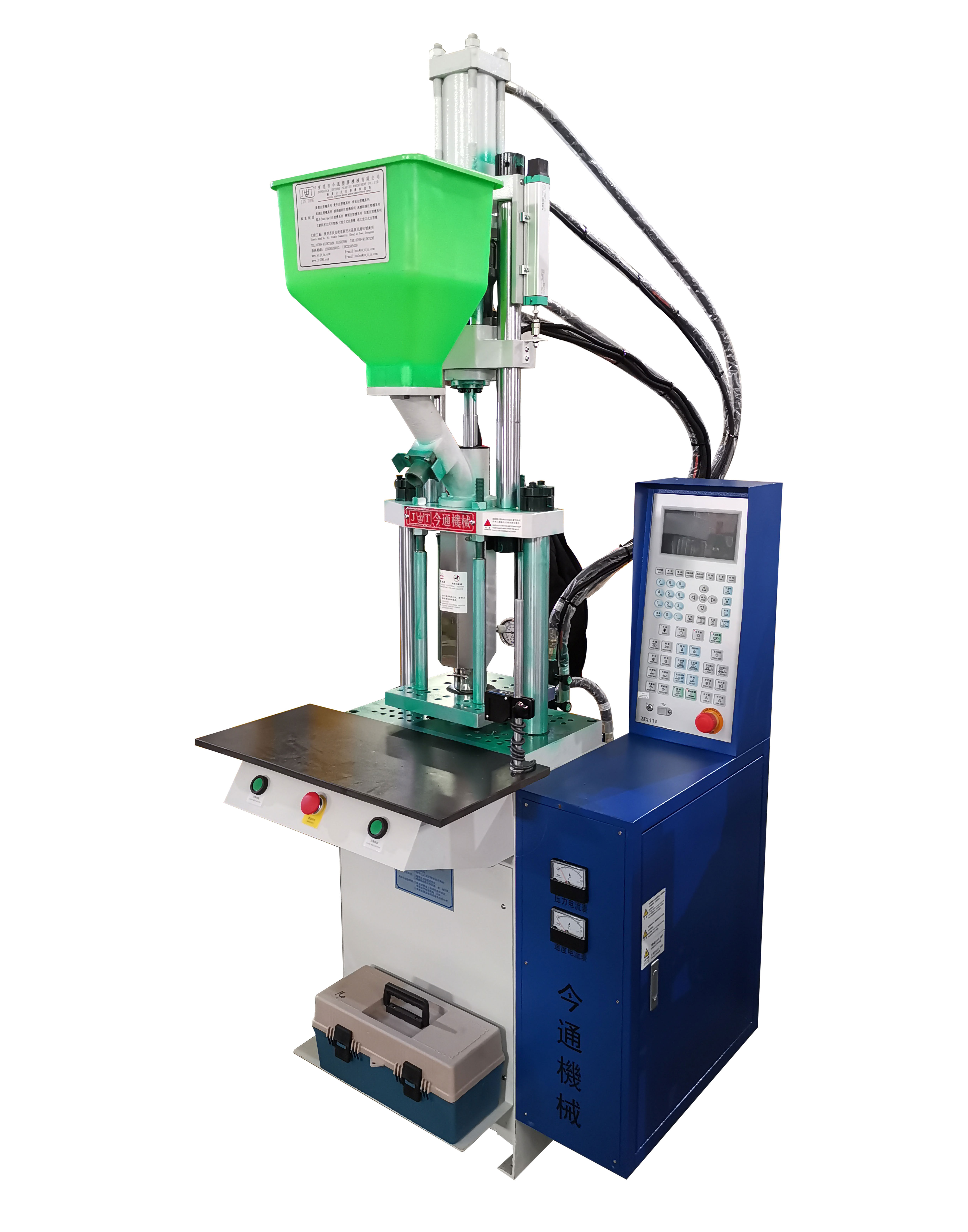

small cheapest Vertical injection molding machine JT-150
Clamping Force: 15T
Injection Weight: 29-45g
Vertical clamping, vertical injection

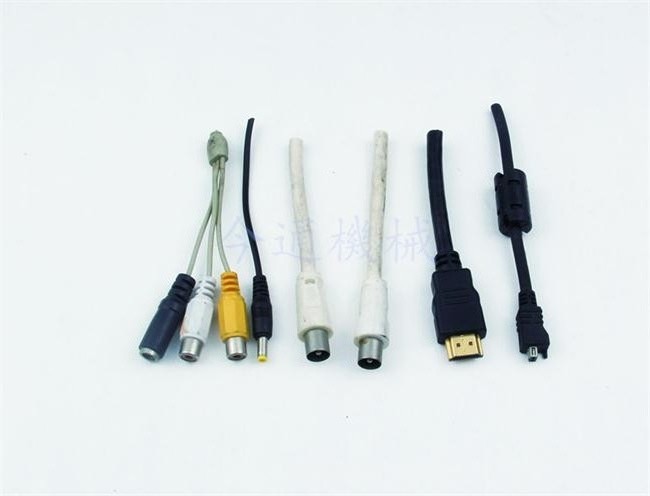

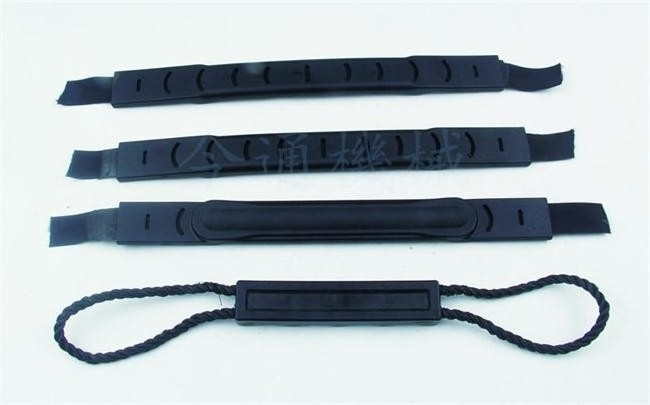

Small volum, suitablefor small and medium insert parts molding;
High shot pressure, fast shot rate, best choice for insert goods molding. Use famous brand accessories for electrical control and hydraulic system, low noise, precise, durable. Vertical screw injection system, multi-stage temperature control, multi-stage injection pressure and rate, back pressure adjustment, suitable for accurate plastic fittings molding.
Automatically display fault, easy to repair. Optional energy-saving motor; infrared safty device, automatic thermostatic device, leakproof spring nozzle, computer display, double proportion hydraulic controller.
