Quick Details
-
Action pressure:
-
Clean compressed air of 3-7 kg per square centimetre
-
Action-wear hydraulic oil:
-
Anti-wear hydraulic oil of VG 68#
-
Operation temperature:
-
0-55 Degrees Celsius
-
Operating speed:
-
50-300mm/s
-
Anti-pressure of oil tank:
-
250 kg per square centimetre
-
Anti-pressure of pneumatic cylinder:
-
12 kg per square centimetre
-
Power stroke tolerance:
-
+0.20mm 0.00mm
-
Frequency:
-
10-25 times
-
High pressure output:
-
40T
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULY
-
Action type:
-
Double action
-
Action pressure:
-
Clean compressed air of 3-7 kg per square centimetre
-
Action-wear hydraulic oil:
-
Anti-wear hydraulic oil of VG 68#
-
Operation temperature:
-
0-55 Degrees Celsius
-
Operating speed:
-
50-300mm/s
-
Anti-pressure of oil tank:
-
250 kg per square centimetre
-
Anti-pressure of pneumatic cylinder:
-
12 kg per square centimetre
-
Power stroke tolerance:
-
+0.20mm 0.00mm
-
Frequency:
-
10-25 times
-
High pressure output:
-
40T
|

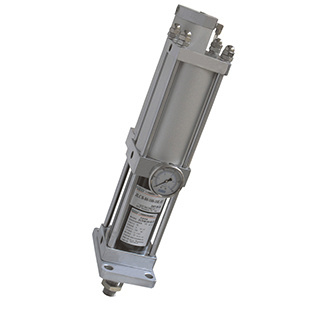

| Item | JLCB Standard 25-100T Hydro Pneumatic Cylinder |
|
| Action type | Double action | |
| Action pressure | Clean compressed air of 3-7kg/cm² | |
| Anti-wear hydraulic oil of VG 68# | ||
| 0-55℃ | ||
| 50-300mm/s | ||
| 250kg/cm² | ||
| 12kg/cm² | ||
| +1.00mm 0.00mm | ||
| Power stroke tolerance | +0.20mm 0.00mm | |
| Operation frequency | 10-25 times (related to the specific pre-pressure and booster stroke) | |
| High pressure Boosting force | 25-100T(the actual output tonnage according to the customer demand) |
Performace
Product Principle
Advantages of the hydropneumatic cylinder
The examples of practical application
Packing & Shipping
We adopt the advanced material Expansible Polystyrene(EPS) as inner packaging , which is more securer and eco-friendly than ordinary packing . Master cartons or wooden case packing in the outside .
| By sea | By air | By express |
| Cheapest but longest option 18~30 days by sea delivery, best for large quantity order. | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. | Door to door service,the fastest and most expensive one, 3~6 days by express. |
