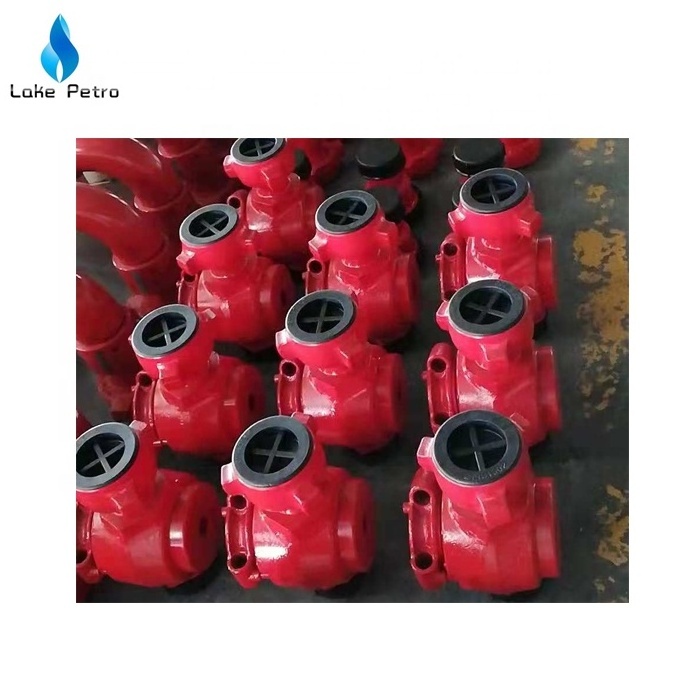

Plug valves-fig1502/fig1002/fig602 union High pressure plug valve
Product Description
| Specifications | buckling size | cold working press | Terminal connection type | Buckle model |
|
SF42
SF70 SF105 |
1"×2"
2"×2" 3"×3" |
42Mpa(6000psi)
70Mpa(10000psi) 105Mpa(15000psi) |
Internal thread ,External thread(LP,NU) | |
|
union fig1002
union fig1502 union fig602 |
M×M
M×F F ×F |
|||
| No. | Name | Qty | No. | Name | Qty | |
| 1 | Valve body | 1 | 12 | Square sealing ring | 2 | |
| 2 | Sealing washer | 1 | 13 | Sealing arcing shim | 2 | |
| 3 | Spring rand | 1 | 14 | Plug cock | 1 | |
| 4 | Wing union | 1 | 15 | Valve deck sealing ring | 1 | |
| 5 | Rand | 3 | 16 | Support band of valve deck sealing ring | 1 | |
| 6 | Retaining spring | 1 | 17 | Elastic cylindrical pin | 1 | |
| 7 | Retaining pin | 2 | 18 | Valve deck | 1 | |
| 8 | Locating pin | 2 | 19 | Plug cock cap | 1 | |
| 9 | O-shaped sealing ring | 2 | 20 | Locknut | 1 | |
| 10 | Sealing ring support band | 2 | 21 | Grease fitting | 1 | |
| 11 | Side arcing shim | 2 |
