Quick Details
-
Optical Resolution:
-
32MILE
-
Scan Speed:
-
1
-
Brand Name:
-
QS
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
wireless barcode scanner with memory
-
Fetures:
-
3G, WIFI, NFC,GPS, blue tooth, camera
-
Touch screen:
-
3.5inch
-
Blue tooth:
-
BT 4.0
-
Network:
-
3G(WCDMA UMTS900/2100 and GMS
-
Camera:
-
5MP
-
PSAM:
-
2 PSAM card slot
-
Speed:
-
Quad core 1.3 GHz
-
Application 1:
-
supermarket cashless payment,inventory management, logistics tracking
-
Application 2:
-
business data management, mobile communications
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CCD
-
Max Paper Size:
-
A4
-
Optical Resolution:
-
32MILE
-
Scan Speed:
-
1
-
Brand Name:
-
QS
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
wireless barcode scanner with memory
-
Fetures:
-
3G, WIFI, NFC,GPS, blue tooth, camera
-
Touch screen:
-
3.5inch
-
Blue tooth:
-
BT 4.0
-
Network:
-
3G(WCDMA UMTS900/2100 and GMS
-
Camera:
-
5MP
-
PSAM:
-
2 PSAM card slot
-
Speed:
-
Quad core 1.3 GHz
-
Application 1:
-
supermarket cashless payment,inventory management, logistics tracking
-
Application 2:
-
business data management, mobile communications
Product Description
| PDA3505 Specifications | |
| Mechanical | |
| Demensions | 220*85*59mm |
| Weight | 570g |
| System Architecture | |
| Processor | 28nm ARM7 Quad-core cortex A53 @1.3GHz |
| RAM/Memory | 2GB |
| Storage | 16GB |
| Display | |
| Keypad | 29 physical Keyboards |
| Camera | Rear AF 5.0M |
| Battery | Recharge 7.4v 3400mAh |
| Interface | Micro SIM*1/PSAM*2/TF card *1/RS232*1 |
| Extended | Fingerprint/IC chip card |
| O.S Platform | android 6.0 |

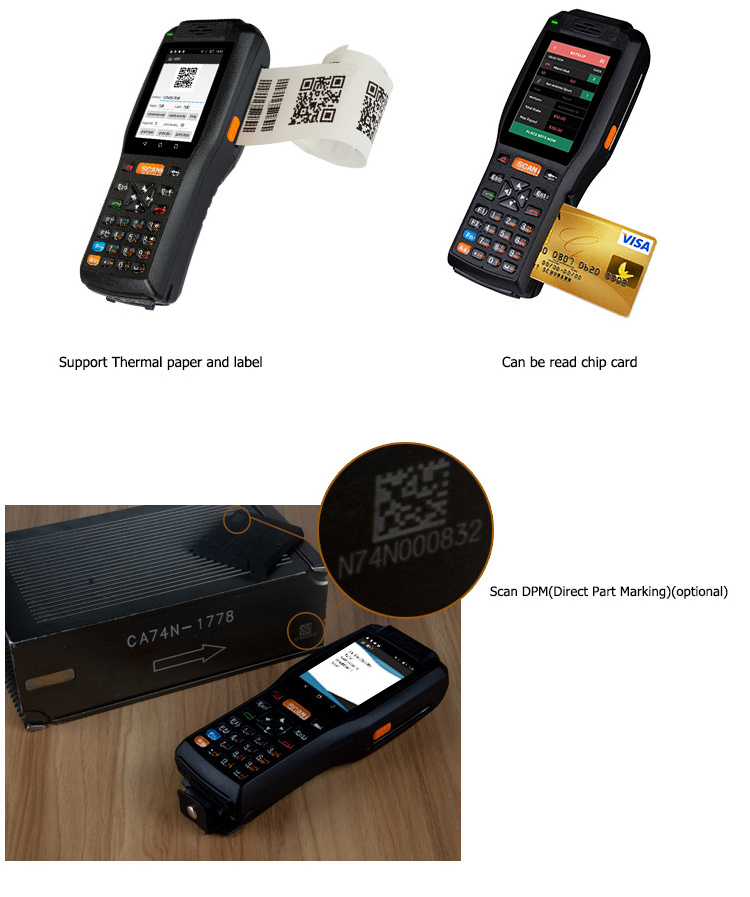

| Printer | 58mm thermal printer 60mm/sec |
| Communicate (4G network for optional) | |
| Mobile netowrk(3G) | GSM 850/900/1800/1900MHz |
| UTMS 850/2100Mhz | |
| Wi-Fi | IEEE 802.11 b/g/n |
| Blue tooth | BLE4.0 |
| GPS | Integrated GPS and AGPS |
| NFC | standard ISO 14443A/B |
| Working status | |
| Battery status | LED light |
| Data Collection | |

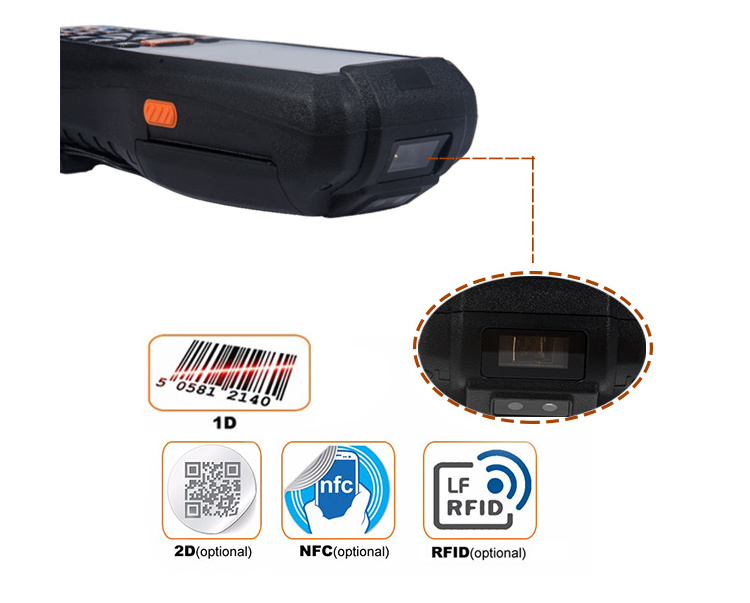

| Barcode engine | Laser : Symbol Se955 |
| 2D scanner | CCD engine: support LCD scanner |
|
PDF417/ MicroPDF417/ Composite/ TLC-39
Datamatrix/ QR/ code/ Micro/ QR/ code,etc |
|
| Environmental | |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Storage Temperature | -20° to 70°C (-13° to 158°F) |
| Environmental Sealing | Independently certified IP65 standards |
| Certificate | |
| Certificate | |
