Quick Details
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST100-2006
-
Temperature testing range:
-
-40-80°C
-
Humidity of probe:
-
0%RH-100%RH
-
Output signal:
-
4-20mA RS485 ( Modbus Protocol)
-
Working Voltage:
-
10-30VDC 5-24VDC
-
Max power consumption:
-
1.2W 0.4W
-
Accuracy:
-
Humidity±3%RH (5%RH-95%RH 25°C) Humidity: 0%RH-80%RH
-
Electrical connections:
-
Direct Lead
-
The length of needle:
-
70mm
-
the width of needle:
-
3mm
-
Product name:
-

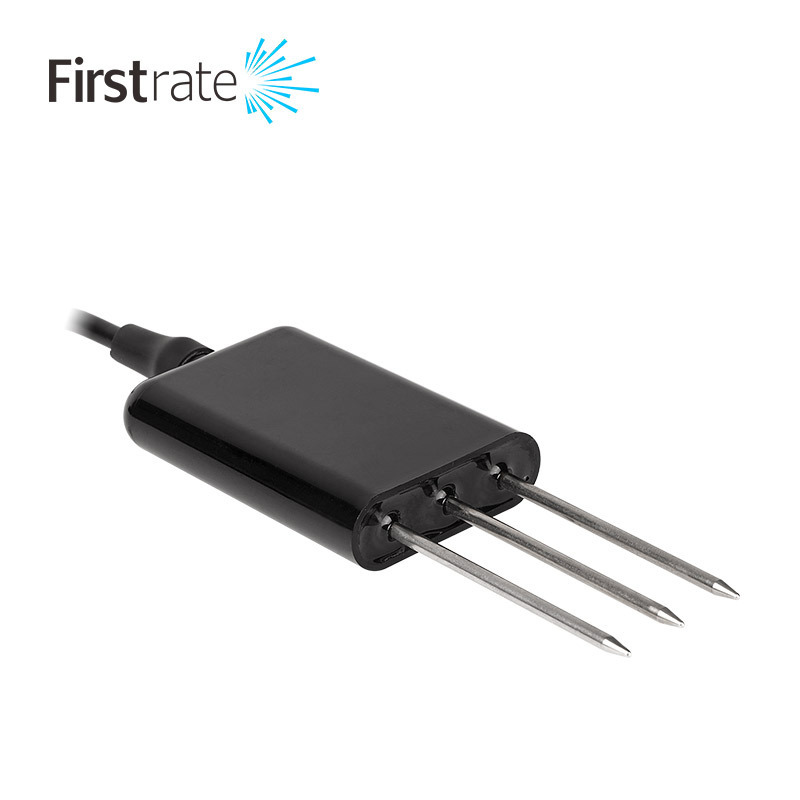

RS485 Smart Modbus Protocol Soil Hygrometer Moistur Meter Sensor
Quick Details
-
Type:
-
soil moisture sensor
-
Warranty:
-
one year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Firstrate
-
Model Number:
-
FST100-2006
-
Temperature testing range:
-
-40-80°C
-
Humidity of probe:
-
0%RH-100%RH
-
Output signal:
-
4-20mA RS485 ( Modbus Protocol)
-
Working Voltage:
-
10-30VDC 5-24VDC
-
Max power consumption:
-
1.2W 0.4W
-
Accuracy:
-
Humidity±3%RH (5%RH-95%RH 25°C) Humidity: 0%RH-80%RH
-
Electrical connections:
-
Direct Lead
-
The length of needle:
-
70mm
-
the width of needle:
-
3mm
-
Product name:
-
RS485 Smart Modbus Protocol Soil Hygrometer Moistur Meter Sensor
FST100-2006A cheap factory price water soil temperature humidity ec sensor made in china in low price
Product Description
| Product number | FST100-2006 |
| Measuring range | Temperature: -40℃~+80℃ Humidity: 0%RH~100% |
| Output signal |
RS485 output (Modbus protocol)
4~20mA with DTU, wireless transmission |
| Supply voltage | 10~30VDC (4~20mA) 5~24VDC (RS485) |
| Maximum power consumption | Digital signal: 0.4W Analog signal: 1.2W |
| Precision | Temperature: ±5%℃ (25℃) Humidity: ±3% (5%~95,25℃) |
| Operating temperature | -40~80℃ |
| Long-term stability (one year) | Temperature: ≤0.1℃/year Humidity: ≤0.1%RH/year |
| Response time | Temperature: ≤15/s (1m/s wind speed) Humidity: ≤5/s (1m/s) |
| Device address | 1~255 can be set, the default is 1 |
| Device baud rate | 2400/4800/9600 optional, default 4800 |
| Byte format | 1 start bit, 8 data bits, one stop bit, no parity |
| Electrical connections | Direct lead |
