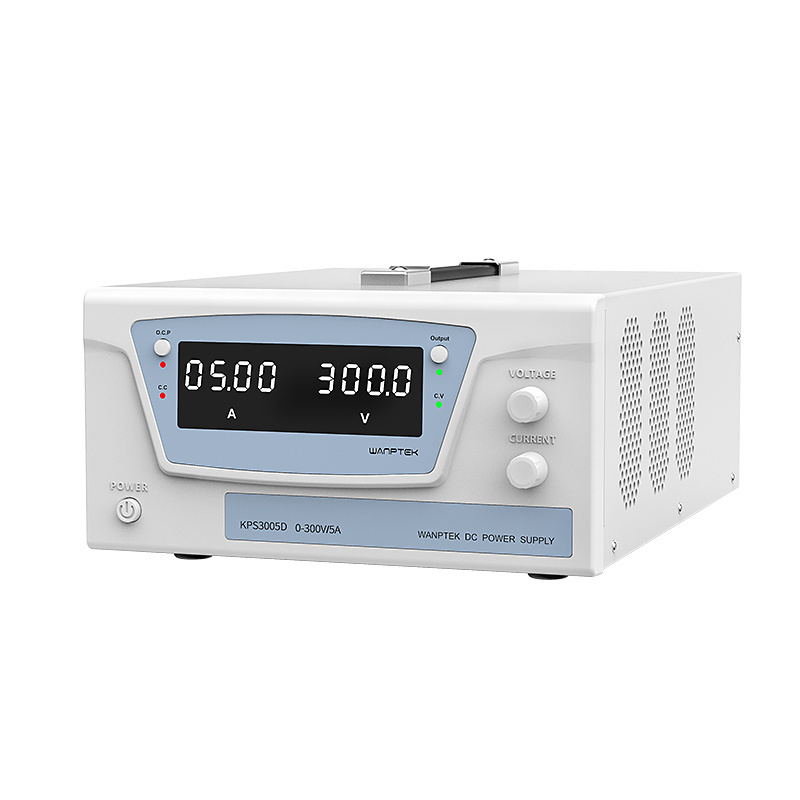

Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wanptek
-
Model Number:
-
KPS3005D
-
Output Frequency:
-
50HZ/60HZ
-
Output Current:
-
0~5A
-
Product Name:
-
Adjustable Power
-
Application:
-
Laboratory
-
Warranty:
-
1year
-
Protections:
-
OPP OVP SCP OCP
-
Efficiency:
-
90%
-
Size:
-
335*260*130mm
-
Weight:
-
6.2
-
Color:
-
White
-
Keyword:
-
Switch Mode Dc Power
-
MOQ:
-
1pcs
Quick Details
-
Output Power:
-
0~1500w
-
Input Voltage:
-
110V or 220V
-
Output Voltage:
-
0~300V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wanptek
-
Model Number:
-
KPS3005D
-
Output Frequency:
-
50HZ/60HZ
-
Output Current:
-
0~5A
-
Product Name:
-
Adjustable Power
-
Application:
-
Laboratory
-
Warranty:
-
1year
-
Protections:
-
OPP OVP SCP OCP
-
Efficiency:
-
90%
-
Size:
-
335*260*130mm
-
Weight:
-
6.2
-
Color:
-
White
-
Keyword:
-
Switch Mode Dc Power
-
MOQ:
-
1pcs
Product Description
Specification
|
Operation requirements
|
|
|
|
|
Input voltage:AC 220V±10%;50Hz
|
|
|
|
Operating temperature:0℃~40℃;Relative humidity:<80%RH
|
|
|
|
storage temperature:-10℃~70℃;Relative humidity:<70%RH
|
|
|
output voltage
|
0-300V (see specification table)
|
|
|
Output current
|
0-5A (see specification table)
|
|
|
output power
|
0~3000W
|
|
|
Set value resolution
|
Voltage0.01V
|
|
|
|
Current0.01A
|
|
|
Resolution of readback value
|
Voltage0.01V
|
|
|
|
Current0.01A
|
|
|
Header display
|
|
|
|
|
0.56 inch white four-digit digital tube display
|
|
|
|
Display accuracy: 0.5%±3 words
|
|
|
|
Display resolution: voltage 0.01V, current 0.01A
|
|
|
Regulated state CV
|
|
|
|
|
Voltage stability:0.5%±20mV
|
|
|
|
Load stability:0.5%±20mV
|
|
|
|
Ripple voltage:≤0.5% Vp-p
|
|
|
Steady flow state CC
|
|
|
|
|
Current stability:0.5%±20mA
|
|
|
|
Load stability:0.5%±20mA
|
|
|
|
Ripple current:≤0.5% Vp-p
|
|
|
|
Temperature Coefficient:≤100ppm/℃
|
|
|
Rise Time
|
No load≤15ms
|
|
|
|
Fully loaded≤30ms
|
|
|
Dynamic response time
|
≤2ms
|
|
|
Accessibility
|
OUTPUT output switch, OCP short circuit protection switch
|
|
|
Protective function
|
OVP,OCP,OPP,OTP
|
|
|
Random accessories
|
|
|
|
|
AC power cord X1
|
|
|
|
Operation Manual X1
|
|
|
|
Certificate of Warranty Card X1
|
|
|
|
Wiring copper terminal X2
|
|
|
Optional accessories
|
Output power cord (Alligator clip test cord)
|
|
