Quick Details
-
Brand Name:
-
SOMPOM
-
Model Number:
-
LED Power
-
Output Frequency:
-
N/A
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC
-
Case material:
-
Metal
-
Type:
-
Constant Voltage
-
Size:
-
215*112*50mm
-
Weight:
-
783g
-
Usage:
-
led,led strip led lamp etc
-
Working Temp:
-
-10~60°C
-
Cooling:
-
Fan Cooling
-
Protections:
-
Short Circuit Overtemp Overload Overvolt
Quick Details
-
Input Voltage:
-
85-264V AC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SOMPOM
-
Model Number:
-
LED Power
-
Output Frequency:
-
N/A
-
Warranty:
-
2 Years
-
Certification:
-
CE RoHS ISO9001 FCC
-
Case material:
-
Metal
-
Type:
-
Constant Voltage
-
Size:
-
215*112*50mm
-
Weight:
-
783g
-
Usage:
-
led,led strip led lamp etc
-
Working Temp:
-
-10~60°C
-
Cooling:
-
Fan Cooling
-
Protections:
-
Short Circuit Overtemp Overload Overvolt

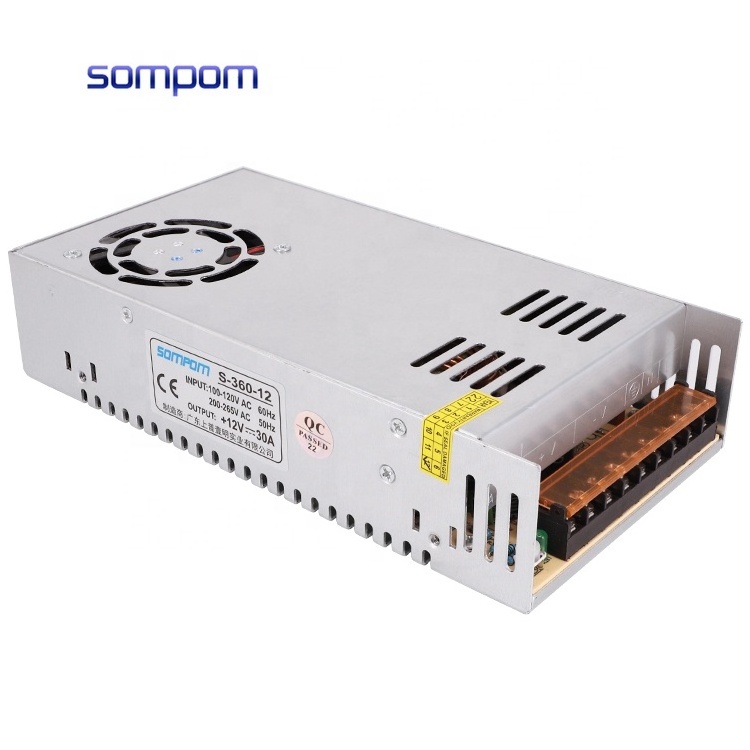

AC to DC 12v power supply led switching power supply
Product Description
| DC Output | DC Voltage: 12V |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz | |
| Efficiency:85% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60 C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60 C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25 C° / 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS,FCC,ISO9001 |
