Product Description

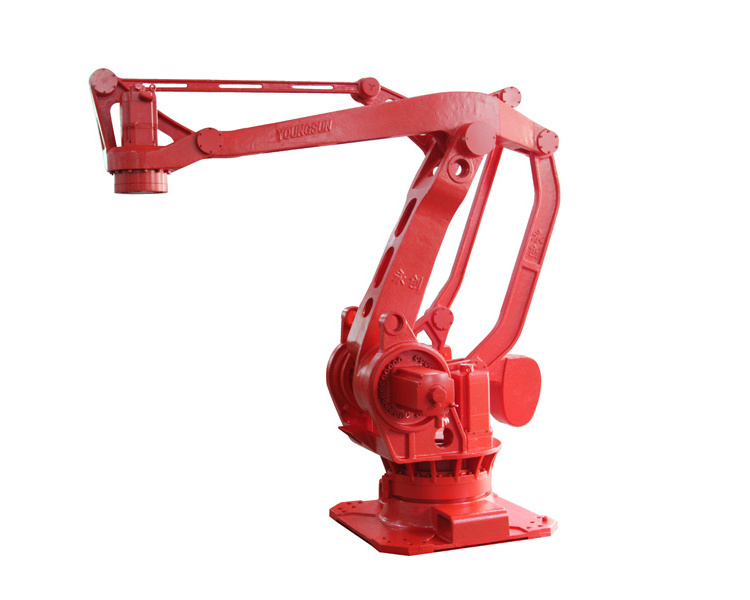

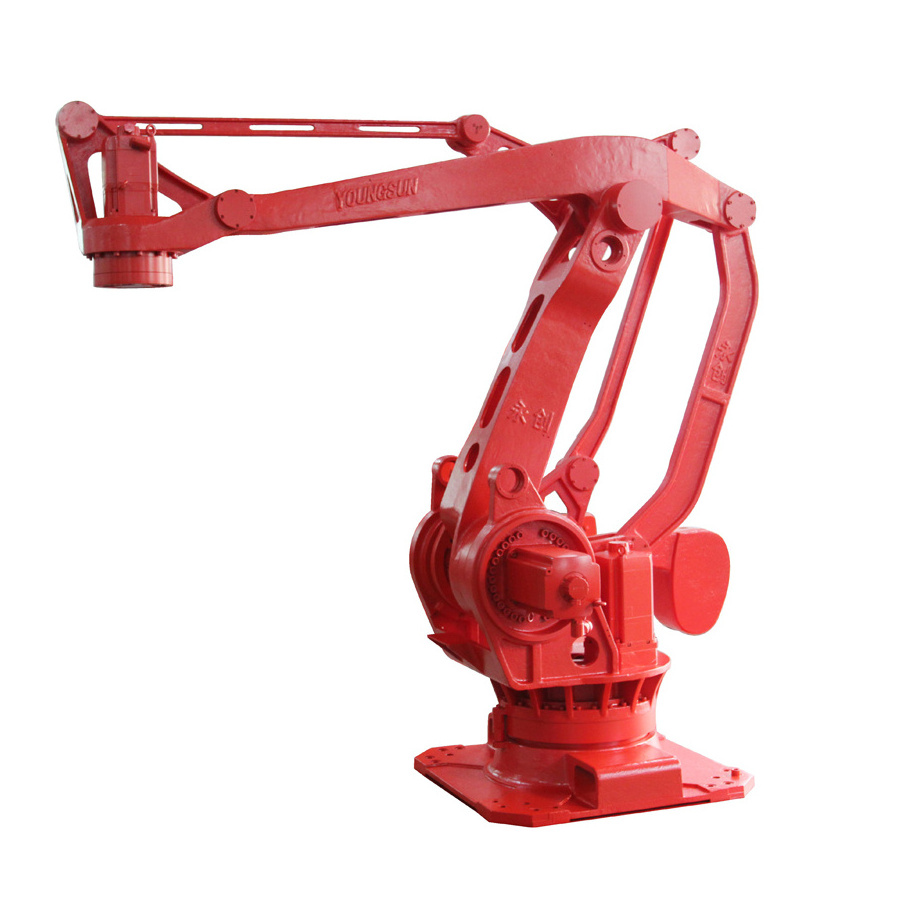

YSR-4-470-F Industrial Robot Palletizer Packing Machine
Reasonable mechanical structure and compact design.
With 2-4 freedom
Controlled by “ Siemens” or “Youngsun” servo motor.
With power-off memory function using pair position encoder
The specific load and motion inertia design enables speed and motion to reach the best
All axis with brake.
There is no motion restriction for related load with extra load in the arm.
There are 7M cable between body and control, and can be expanded accordingly.
The modular design of mechanical structure,any parts can be fast replaced .
Dynamic model of high speed motion curve can improve the system life and optimize work rhythm.
Application area: It is widely used in electronics , light industry , food , medicine and other industries area. This machine can realize high - speed , accurate grasp and release. Beside shorten the production time, improve the productivity, it can identify the shape and color of the parts, use pattern matching characteristic to detect the box color difference , check defective products .
We provide the robot three-dimensional simulation environment. Thant means it can quickly join the robot system and peripheral equipment, also can set the peripheral equipment action and IO interaction, simulate the simulation scene, so as to observe the final operation effect intuitively. Verify the feasibility of the scheme.
Specification
|
Model
|
YSR-4-470-F
|
|
|
Rated payload
|
470kg
|
|
|
Power supply
|
26.9KW
|
|
|
Reach
|
3150mm
|
|
|
Number of axes
|
4
|
|
|
Mounting position
|
Floor
|
|
|
Weight of robot
|
2210KG
|
|
|
Pose repeatability
|
±0.5mm
|
|
|
Floor area
|
950*950mm
|
|
|
Axis data
|
A1 ±180° A2+90° to -40° A3+15° to -115° A4 ±360°
|
|
|
Max speed
|
A1 85°/s A2 80°/s A3 80°/s A4 165°/s
|
|
|
Main electrical parts
|
|
|
|
Low voltage(contactor,relay,breaker etc)
|
“Schneider”
|
|
|
PLC
|
“Siemens D425 kinetic control system”
|
|
|
Motor
|
“Siemens” servo motor
|
|
|
Safe relay
|
“SICK”
|
|
|
Pushbutton(optional)
|
”Siemens ATP”,or “Schneider”
|
|
|
Sensor
|
“P+F”
|
|
Packing & Delivery
Robot Palletizer
machine
uses wooden pallet packaging
