Quick Details
-
Brand Name:
-
KAIHUI
-
Model Number:
-
K26S-U120S12
-
Output Frequency:
-
47-63 Hz
-
Output Current:
-
8.5A
-
Product Name:
-

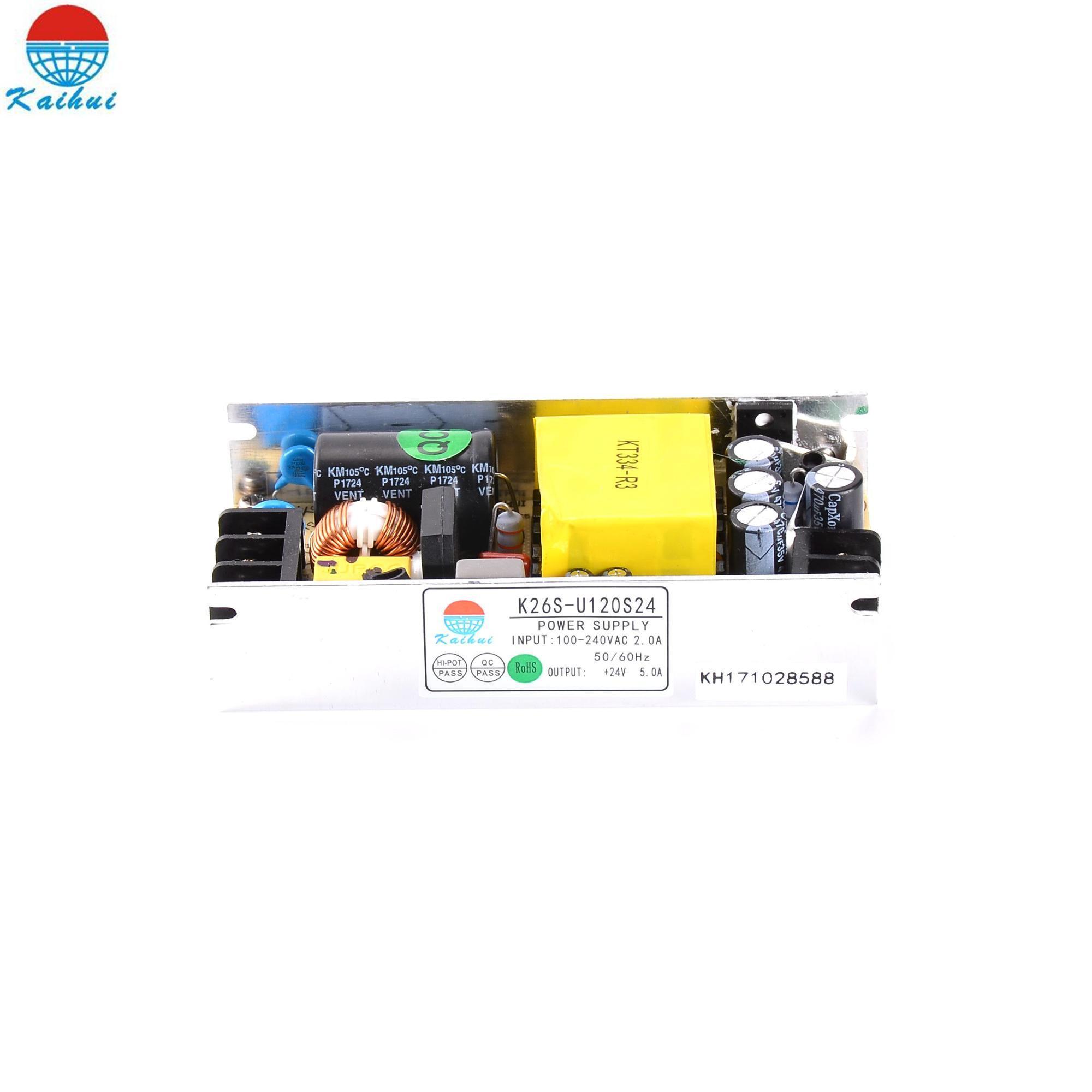

120W LED Lighting Switching power supply AC/DC 12v 24v 36v 48v
-
Size:
-
115*59*28mm CASE:K826S
-
Protection:
-
Overload, over voltage, over temperature protection.
-
Safety Standards:
-
GB4943,EN60950
-
Efficiency:
-
>88%
-
Certification:
-
RoHS
-
Warranty:
-
2 Years
-
EMC STANDARDS:
-
GB9254,EN55022 CLASS B
-
SETUP,RISE,HOLD UP TIME:
-
50ms,50ms,20ms
-
Application:
-
Amplifer, 3D Printer, LED Light
Quick Details
-
Input Voltage:
-
88~264VAC 100~370VDC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KAIHUI
-
Model Number:
-
K26S-U120S12
-
Output Frequency:
-
47-63 Hz
-
Output Current:
-
8.5A
-
Product Name:
-
120W LED Lighting Switching power supply AC/DC 12v 24v 36v 48v
-
Size:
-
115*59*28mm CASE:K826S
-
Protection:
-
Overload, over voltage, over temperature protection.
-
Safety Standards:
-
GB4943,EN60950
-
Efficiency:
-
>88%
-
Certification:
-
RoHS
-
Warranty:
-
2 Years
-
EMC STANDARDS:
-
GB9254,EN55022 CLASS B
-
SETUP,RISE,HOLD UP TIME:
-
50ms,50ms,20ms
-
Application:
-
Amplifer, 3D Printer, LED Light
Product Description
| +12V | +24V | +36V | +48V | ||||
| 2.5A | |||||||
| ±10% | |||||||
| Output accuracy | ±1% | ||||||
| Line Regulation | ±0.5% | ||||||
| Load Regulation | ±0.5% | ||||||
| Inrush current | |||||||
| Leakage Current | |||||||
| Over load protection | |||||||
| Over voltage | |||||||
| OVER TEMPERATURE | |||||||
| Note: |
1.All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured; |
