Quick Details
-
Brand Name:
-
Xinzhou
-
Year:
-
2023
-
Voltage:
-
220V/380V/415V
-
Hollow part volume:
-
1200L
-
Screw diameter (mm):
-
120 mm
-
Screw Heating Power(kW):
-
40 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1900 mm
-
Mold Platen Size(Height)(mm):
-
2100 mm
-
Air Pressure(MPa):
-
0.65 MPa
-
Air Comsumption(m³/min):
-
6 m³/min
-
Die Head Heating Power(kW):
-
30 kW
-
Accumulator Capacity(L):
-
50 L
-
Power (kW):
-
360
-
Weight (T):
-
60
-
Suitable IBC tank size:
-
500-1200L ibc bulk containers
-
Labor demand:
-
1~2 operator
-
Layer of IBC tank:
-
single layer, double layer, three layer available
Quick Details
-
Clamping Force (kN):
-
2200
-
Output (kg/h):
-
600 kg/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinzhou
-
Year:
-
2023
-
Voltage:
-
220V/380V/415V
-
Hollow part volume:
-
1200L
-
Screw diameter (mm):
-
120 mm
-
Screw Heating Power(kW):
-
40 kW
-
Extruder Motor Power(kW):
-
90 kW
-
Mold Platen Size(Width)(mm):
-
1900 mm
-
Mold Platen Size(Height)(mm):
-
2100 mm
-
Air Pressure(MPa):
-
0.65 MPa
-
Air Comsumption(m³/min):
-
6 m³/min
-
Die Head Heating Power(kW):
-
30 kW
-
Accumulator Capacity(L):
-
50 L
-
Power (kW):
-
360
-
Weight (T):
-
60
-
Suitable IBC tank size:
-
500-1200L ibc bulk containers
-
Labor demand:
-
1~2 operator
-
Layer of IBC tank:
-
single layer, double layer, three layer available
Product Description

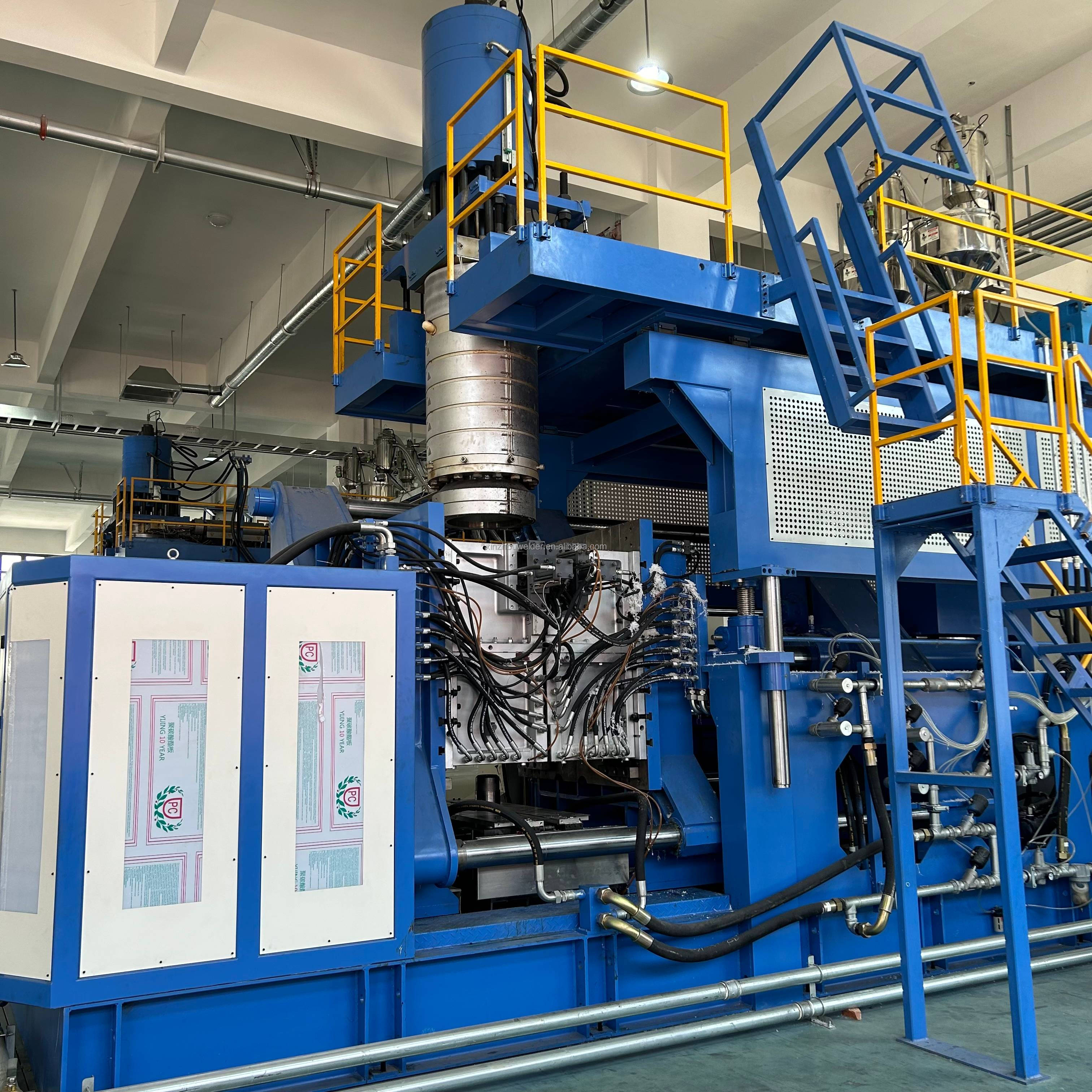

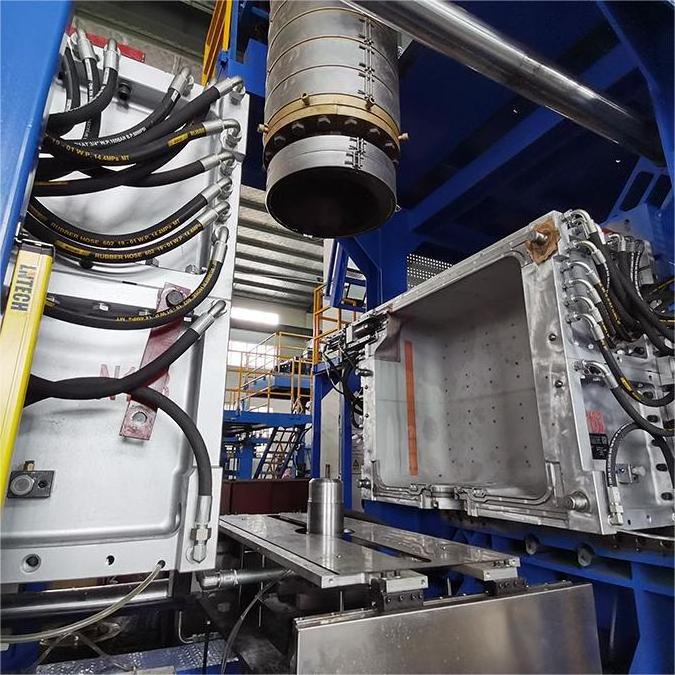

IBC Tank blow moding machine
xinzhou's 1000L accumulating type extrusion blow molding machine for producing HDPE 500L,1000L 1200L IBC tanks.
1000L extrusion blow molding machine ,producing single layer, 2 layers IBC tank.
The total energy consumption of the IBC machine is 180kw, and the production capacity is 600 per day.

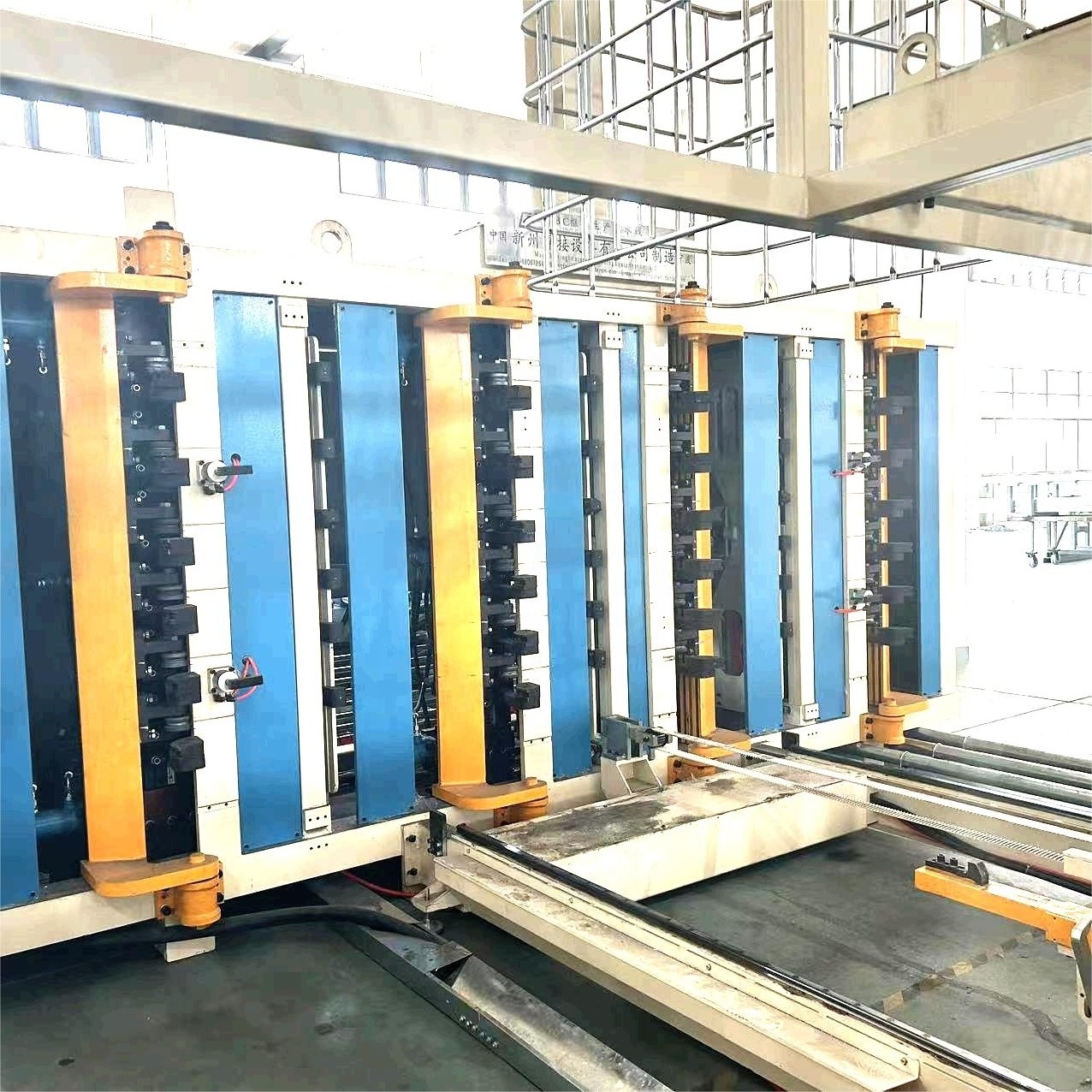

ibc cage welding machine
ibc cage bending machine
ibc cage production line
IBC tank welding machine Production line equipment
IBC tank frame welding machine、bending machine、locking machine、hole punching machine、base frame welding machine the full set of production equipment.
We can design square tubes, round tubes
Product Paramenters
|
Product Name
|
IBC frame production line
|
Style
|
single row /double row
|
|
Max welding width
|
1200mm
|
Max welding length
|
4250mm
|
|
Brand
|
XINZHOU
|
Colour
|
blue/yelllow/custom
|
|
Equipped Power
|
350kVA/400kVA
|
Place of Product
|
Zhejiang Province,China
|
|
Voltage
|
3p 380V
|
Material
|
Galvanized Pipe
|
|
Tickness of the pipe
|
1-2mm
|
duty cylce
|
20%
|
|
Diameter of the pipe
|
14-20mm
|
Frequency
|
50HZ/60HZ
|
|
pipe loading method
|
manual/2 labors
|
Cable size
|
≥70mm3
|
|
working capacity
|
350-450（480-550） pcs/8 hours
|
air pipe size
|
G1
|
|
labor demand
|
2-3 labors
|
Water pipe size
|
G1 1/4
|
Company Introduction
Exhibition
Since its establishment
25 years ago
,
xinzhou has traveled to all corners of the world, participated in more than
100
exhibitions and served more than
9,000
customers
Certificate
We have passed the international certifications such as
CE
certification,
ISO9001
quality management system certification, Alibaba enterprise certification and design patents.
Certificate of compiance
qualty management syatem
factory production control
Packing&Shipping
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provideyou the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us thefollowing information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
Technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provideyou the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
