Quick Details
-
Brand Name:
-
Meixin
-
Voltage:
-
220-380V
-
Power:
-
1000W
-
Dimension(L*W*H):
-
2.5M*1.4M*1.98M
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(ADTECH CNC Control System)
-
Driving Motor:
-
Panasonic servo Motor
-
Brake motor:
-
Italy Brake Motor
-
Driving screw:
-
TBI Precision Ball Screw
-
Stepless speed:
-
Delta Inverter
-
Fiber box:
-
Double Colour Box
-
Tufting Method:
-
Staple or anchor wire
-
Function:
-
make brush and brooms
-
Certification:
-
Patent Certificate
Quick Details
-
Application:
-
Makng Brush
-
Production Capacity:
-
2000 Pieces/10 Hours
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Meixin
-
Voltage:
-
220-380V
-
Power:
-
1000W
-
Dimension(L*W*H):
-
2.5M*1.4M*1.98M
-
Weight:
-
1000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control System:
-
PLC(ADTECH CNC Control System)
-
Driving Motor:
-
Panasonic servo Motor
-
Brake motor:
-
Italy Brake Motor
-
Driving screw:
-
TBI Precision Ball Screw
-
Stepless speed:
-
Delta Inverter
-
Fiber box:
-
Double Colour Box
-
Tufting Method:
-
Staple or anchor wire
-
Function:
-
make brush and brooms
-
Certification:
-
Patent Certificate
Product Description
Product Application
|

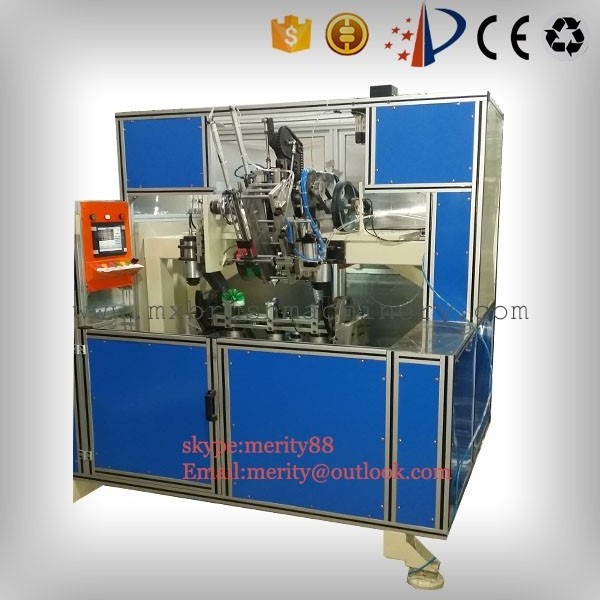

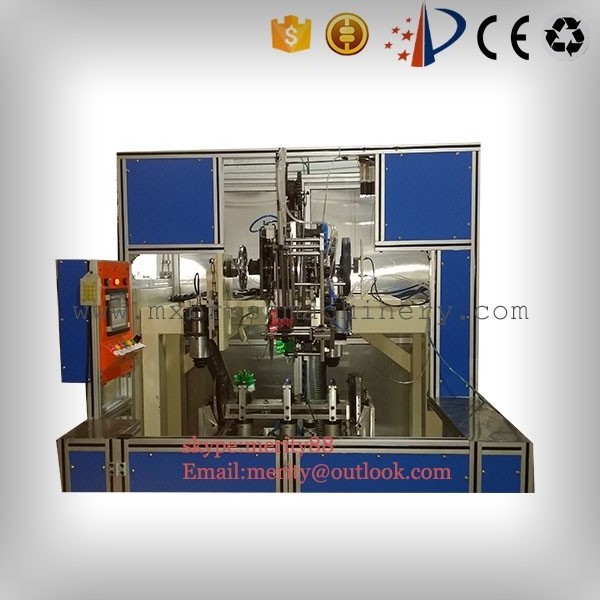

SPECIFICATIONS FOR 5 AXIS DOUBLE HOCKEY BRUSH MACHINE
|
|
|
|
|||
|
TRAVEL OF AXIS
|
X AXIS
|
MM
|
250
|
|||
|
|
Y AXIS
|
MM
|
200
|
|||
|
|
Z AXIS
|
DEGREE
|
100°
|
|||
|
|
B AIXS
|
DEGREE
|
360°
|
|||
|
|
A AXIS
|
MM
|
200
|
|||
|
Main performance parameters
|
DIA OF HOLES
|
MM
|
4-7
|
|||
|
|
LENGTH OF FILAMENT
|
MM
|
30-120
|
|||
|
|
DIA OF FILAMENT
|
MM
|
0.25-1
|
|||
|
|
FIBER BOX
|
2 FIBER BOX
|
|
|||
|
|
MATERIAL OF FILAMENT
|
PP,PET,NYLON,SO ON
|
|
|||
|
|
TUFTING METHED
|
ROUND WIRE/STYPE WIRE
|
FLAT WIRE/ANCHOR WIRE
|
|||
|
|
PRODUCTIVITY
|
2000PCS/10HOURS
|
|
|||
|
|
SPEED
|
HOLES/SEC
|
5-8
|
|||
|
Controller system
|
PLC
|
INCH
|
6.5
|
|||
|
|
VOLTAGE
|
V
|
220 OR 380
|
|||
|
|
POWER
|
W
|
1000
|
|||
