Quick Details
-
Place of Origin:
-
China
-
Product name:
-
Exposure machine
-
Light source:
-
uv led cold light
-
Wattage:
-
8KW
-
Exposure area:
-
1240x680mm
-
Exposure type:
-
Double size
-
Line resolution:
-
75um/75um
-
Energy uniformity:
-
≥90%
-
Exposure time:
-
10-35s
-
Usage:
-
Dry film,wet film,solder mask
-
Interface:
-
Touch screen
Quick Details
-
Condition:
-
New
-
Type:
-
Plate exposure
-
Voltage:
-
AC224V
-
Place of Origin:
-
China
-
Product name:
-
Exposure machine
-
Light source:
-
uv led cold light
-
Wattage:
-
8KW
-
Exposure area:
-
1240x680mm
-
Exposure type:
-
Double size
-
Line resolution:
-
75um/75um
-
Energy uniformity:
-
≥90%
-
Exposure time:
-
10-35s
-
Usage:
-
Dry film,wet film,solder mask
-
Interface:
-
Touch screen

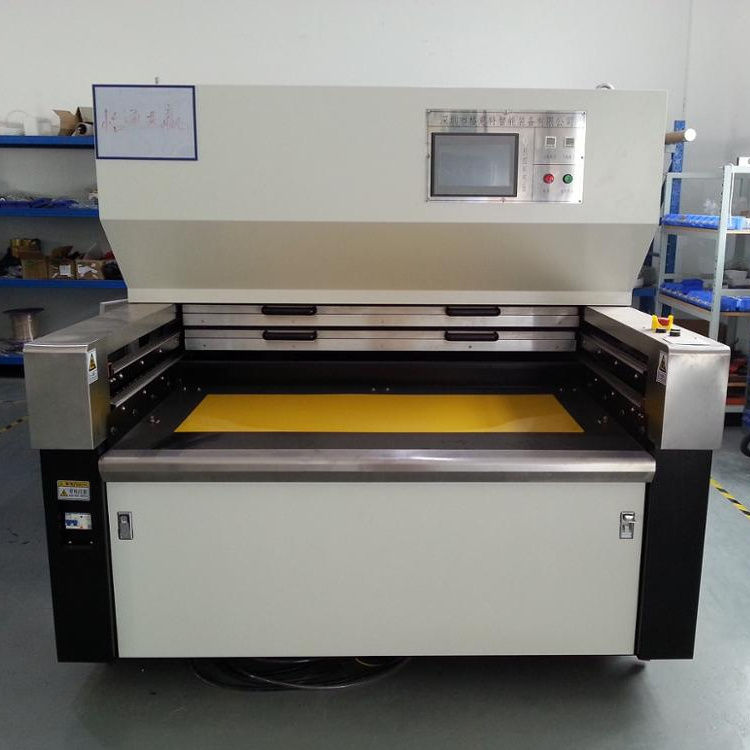

Machine details
| Technical parameter | LD-900Z | LD-1200Z | LD-1500Z |
| light source | UV LED | ||
| Exposure size | 930x680mm | 1240x680mm | 1520x680mm |
| Dimension | 2450x1420x1700mm | 2750x1770x1700mm | 2750x2030x1700mm |
| Weight | 900kg | 1000kg | 1100kg |
| Substrate thickness | 0.075-10mm | ||
| Way of Exposure | Double side exposure | ||
| Line resolution | 75um/75um | ||
| Energy uniformity | ≥90%, higher can be customized | ||
| Exposure time | 10-35s | ||
| Max. Power | ≤6kw | ≤8kw | ≤10kw |
| Can exposure | Solder resist | ||
| Energy control | 0-100% Adjustable/exposure time adjustable | ||
| Cooling system | Constant temperature water cooling+high effeciency fresh air circulation system | ||
| Working table | Mylar film+glass | ||
| Vacuum degree | ≤-90Kpa (Adjustable) | ||
| Interface | Core 10''A8 Touch screen | ||
| Mesa Temp. | Room temperature+5℃ | ||
| Protection | 1.Temperature Alarm; 2.Short circuit overload protection; 3.Light source failure detection | ||
| Using environment | Dust free workshop:class001 temperature 2℃±5 ℃; Humidity: 55%±5% | ||
| Cooling water | No requirment | ||
| Input | 25A/220V/50Hz | 25A/220V/50Hz | 30A/220V/50Hz |
| Power consumption | 1-2.5kwh/day (measured with 80A power meter) | 3.5-5.5kwh/day (measured with 80A power meter) | 5-7kwh/day (measured with 80A power meter) |
