Quick Details
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LILLLIPUT
-
Model Number:
-
PC-1010R
-
Name:
-
all in one panel PC 1000 nits kiosk 10.1 inch android tablet
-
OS:
-
Android 10
-
CPU:
-
Rockchip RK3288 Cortex-A17 Quad-core 1.8GHz processor
-
Memory:
-
2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)
-
Interface:
-
LAN, GPIO, RS232,HDMI, USB,TYPE-C, SIM CARD
-
Brightness:
-
1000nits
-
Operating temperature:
-
-10°C ~ 55°C (14°F ~ 131°F)
-
Power:
-
DC 12V
-
Optional Functions:
-
3G/4G Network Cellular ,GNSS, Front Camera
Quick Details
-
Screen Size:
-
10.1"
-
Memory Capacity:
-
2gb
-
Display resolution:
-
1280x800
-
Operating System:
-
ANDROID 10
-
Type:
-
Tablet PC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LILLLIPUT
-
Model Number:
-
PC-1010R
-
Name:
-
all in one panel PC 1000 nits kiosk 10.1 inch android tablet
-
OS:
-
Android 10
-
CPU:
-
Rockchip RK3288 Cortex-A17 Quad-core 1.8GHz processor
-
Memory:
-
2GB RAM and 16GB ROM (4GB RAM and 64GB ROM for optional)
-
Interface:
-
LAN, GPIO, RS232,HDMI, USB,TYPE-C, SIM CARD
-
Brightness:
-
1000nits
-
Operating temperature:
-
-10°C ~ 55°C (14°F ~ 131°F)
-
Power:
-
DC 12V
-
Optional Functions:
-
3G/4G Network Cellular ,GNSS, Front Camera
Product Description
-- Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
-- 10.1 " multi-point capacitive touch screen, with 1280*800 resolution
-- 1000cd/m² brightness, suitable for outdoor applications
-- Android 10 operating system
-- 2GB RAM and 16GB ROM
-- Micro SD card Storage
-- Wifi and BT (optional)
-- 3G/4G Cellular Network (Optional)
-- GNSS (Optional)
-- Front Camera (Optional)
Details Images
|
Model NO.
|
|
PC1010R
|
PC1010
|
|
|
SYSTEM
|
CPU
|
Rockchip RK3288 Cortex®-A17 Quad-core 1.8GHz processor
|
Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
|
|
|
|
OS
|
Android 10
|
Android 9.0
|
|
|
|
RAM + ROM
|
2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
|
|
|
|
|
GPU
|
Mali-T764
|
Adreno 506
|
|
|
PANEL
|
Sensors
|
Light and Proximity Sensor (Auto dimming), Gyroscope & Acceleration
|
Light Sensor (Auto Dimming)
|
|
|
|
LCD
|
10.1” IPS, 1280×800, 1000 nit, 170°/170° viewing angle
|
|
|
|
|
Touch Screen
|
Multi-point capacitive touch screen
|
|
|
|

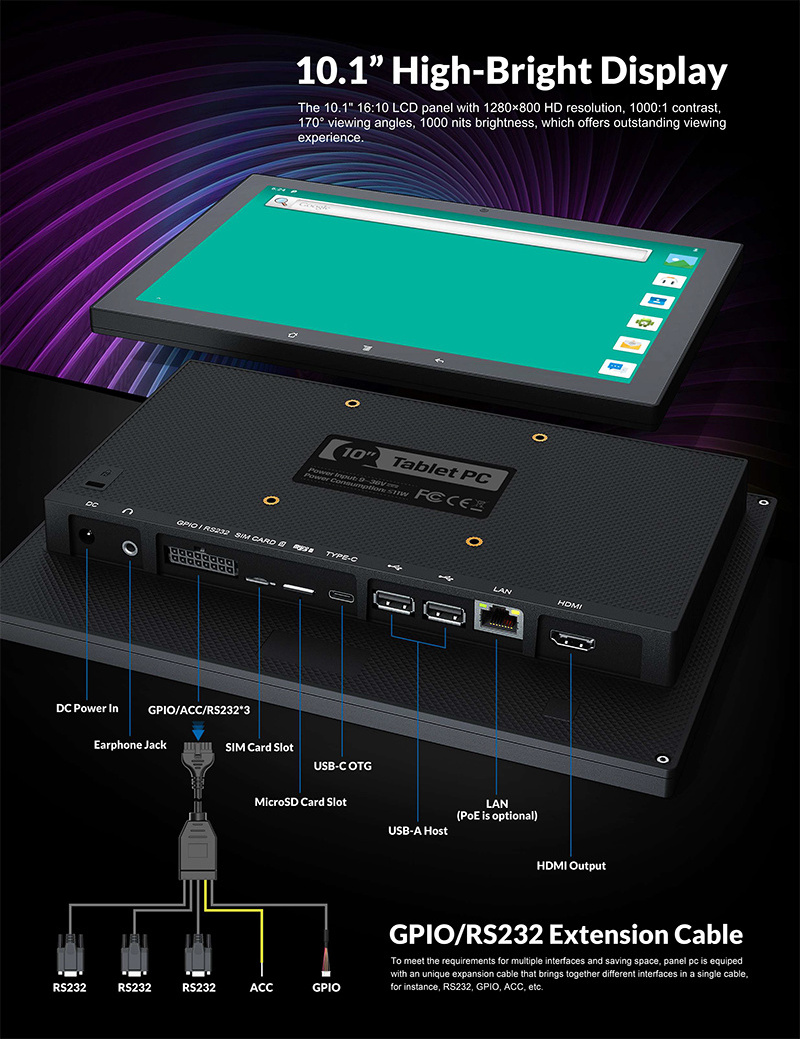

INTERFACE
|
LAN
|
1000M×1
|
100M×1 (PoE is optional, 25W)
|
|
|
|
GPIO
|
×4 (Input×2, output×2)
|
|
|
|
|
COM
|
RS232×3
|
|
|
|
|
HDMI
|
×1 Output, support up to 1080p
|
|
|
|
|
SIM
|
×1
|
|
|
|
|
Micro SD Card
|
×1, support up to 128GB
|
|
|
|
|
USB
|
USB host×2, USB Type-C OTG×1
|
|
|
|
|
Earphone Jack
|
3.5mm
|
|
|
|
WIRELESS
|
Wi-Fi
|
Optional 802.11a/b/g/n/ac, 2.4GHZ/5GHZ
|
802.11a/b/g/n/ac, 2.4GHZ/5GHZ
|
|
|
|
BT
|
Optional 5.0, 2402MHz~2480MHz
|
2402MHz~2480MHz
|
|
|
|
Cellular Network
|
Optional 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM)
|
|
|
|
|
GNSS
|
Optional (GPS, GLONASS)
|
|
|
|
|
NFC
|
Without
|
Optional
|
|
|
BUILT-IN
|
Front Camera
|
Optional, 5.0MP
|
|
|
|
|
Speaker
|
×1
|
|
|
|
POWER
|
Power Supply
|
DC 9~36V
|
|
|
|
|
Power Consumption
|
≤17W
|
≤12W
|
|
|
OTHER
|
Dimension
|
249mm×166mm×32mm
|
|
|
|
|
Weight
|
980g
|
|
|
|
|
Environment
|
Operating Temp: -10°C~60°C (14°F~140°F)
|
|
|
|
|
|
Storage Temp: -20°C~65°C (-4°F~149°F)
|
|
|
