Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut CNC
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
3.2
-
Weight (KG):
-
1300
-
Product name:
-

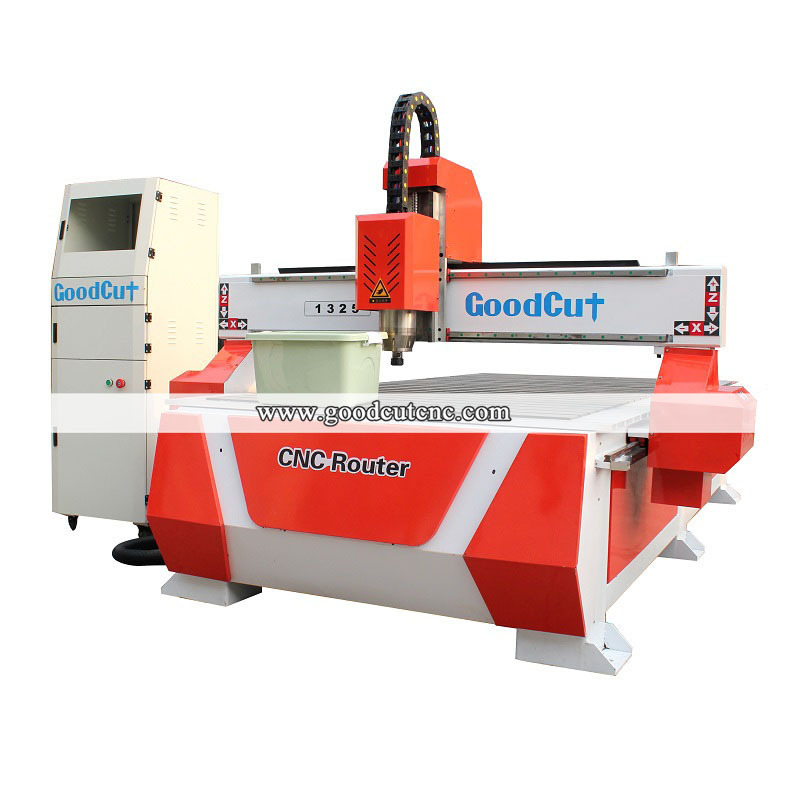

CNC Wood Carving Machine Price Machining Router
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Control system:
-
Mach3/DSP/Nc-studio
-
Transmission:
-
Helical Rack Pinion, Taiwan TBI ball screw
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
Working area:
-
1300x2500x200mm
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table:
-
Aluminum + T-slot
-
Drive motor:
-
Leadshine 860 Motor
-
Inverter:
-
Fuling, BEST
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut CNC
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
3.2
-
Weight (KG):
-
1300
-
Product name:
-
CNC Wood Carving Machine Price Machining Router
-
Application:
-
Wood Acrylic PVC Engraving Cutting
-
Control system:
-
Mach3/DSP/Nc-studio
-
Transmission:
-
Helical Rack Pinion, Taiwan TBI ball screw
-
Spindle power:
-
2.2kw 3.0 Kw 4.5kw 6.0kw
-
Working area:
-
1300x2500x200mm
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Table:
-
Aluminum + T-slot
-
Drive motor:
-
Leadshine 860 Motor
-
Inverter:
-
Fuling, BEST
Product Parameters
|
item
|
value
|
|
Place of Origin
|
China
|
|
Shandong
|
|
|
Condition
|
New
|
|
Brand Name
|
Quick CNC
|
|
Applicable Industries
|
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Construction works , Advertising Company, woodworking
|
|
Main parts
|
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Voltage
|
220V/380V
|
|
Dimension(L*W*H)
|
3120*1960*1750
|
|
Weight
|
1600
|
|
Certification
|
ISO CE
|
|
Warranty
|
1 YEAR
|
|
After-sales Service Provided
|
Video technical support, Online support
|
|
Product name
|
K45MT1325
|
|
Application
|
woodworking
|
|
Color
|
White or grey
|
|
Table size
|
1300*2500mm
|
|
Brand
|
Quick CNC
|
|
Kw
|
4.5kw
|
Details
1.Control cabinet
Independent control cabinet.Independent control cabinet.
2. Control System
DSP controller, easy to learn and operate.
Option: Weihong controller, Mach 3 controller
3. Spindle:
HQD 3.2kw water cooling spindle
Other power for optional.
4. Drive motor: Leadshine stepper/hybrid servo motor
Option: Yaskawa Motor Driver / Delta Motor Driver
5. Inverter
Taiwan Delta Inverter / Best Inverster / Fuling Inverter
6. Guide Rails
HIWIN Guide Rail.
Fast running speed and strong bearing capacity.
