Quick Details
-
Positioning Accuracy (mm):
-
0.2 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JONHV
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*1200*100mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
260
-
Product name:
-
3d furniture wood cutting plastic molding cnc router machine price
-
After-sales service provided:
-
Online support
-
Local service location:
-
None
-
After warranty service:
-
Online support
-
Table size:
-
600*1200 mm
-
Command:
-
G Code*.u00*.mmg*plt
-
Max feed height:
-
150 mm
-
Working accuracy:
-
0.2 mm
-
Repositioning accuracy:
-
0.05 mm
-
Spindle motor:
-
2.2 kw
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Working Table Size(mm):
-
600*1200
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.2 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
1200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JONHV
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
600*1200*100mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
260
-
Product name:
-
3d furniture wood cutting plastic molding cnc router machine price
-
After-sales service provided:
-
Online support
-
Local service location:
-
None
-
After warranty service:
-
Online support
-
Table size:
-
600*1200 mm
-
Command:
-
G Code*.u00*.mmg*plt
-
Max feed height:
-
150 mm
-
Working accuracy:
-
0.2 mm
-
Repositioning accuracy:
-
0.05 mm
-
Spindle motor:
-
2.2 kw
-
Showroom Location:
-
None
-
Marketing Type:
-
Ordinary Product

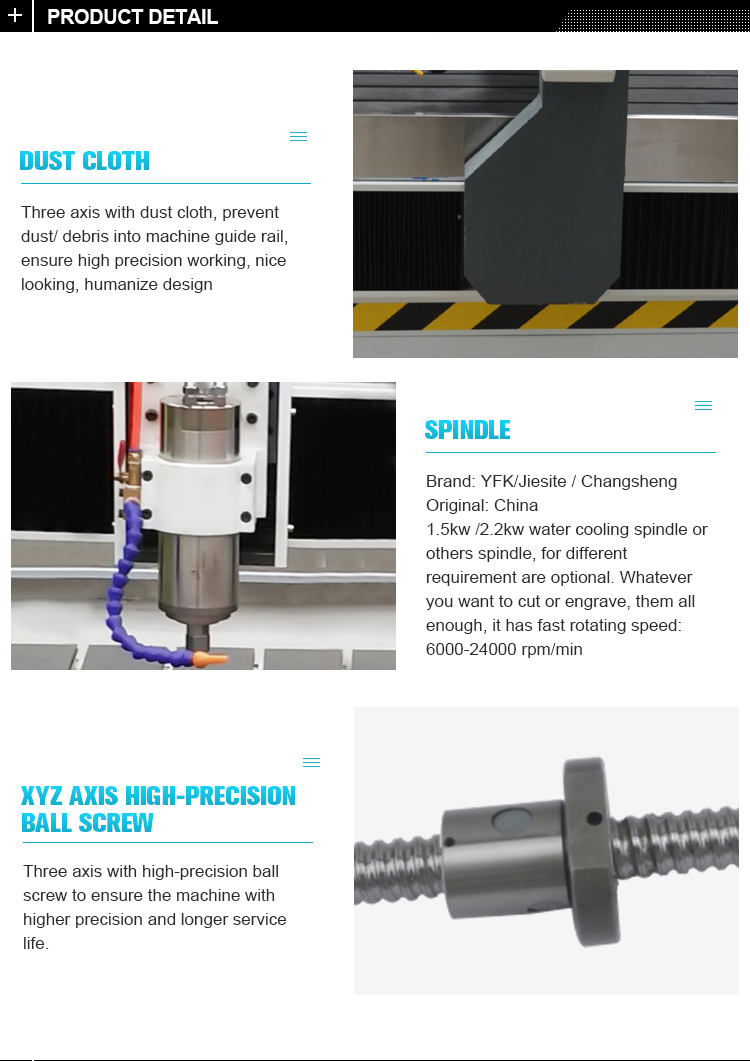

Product Details

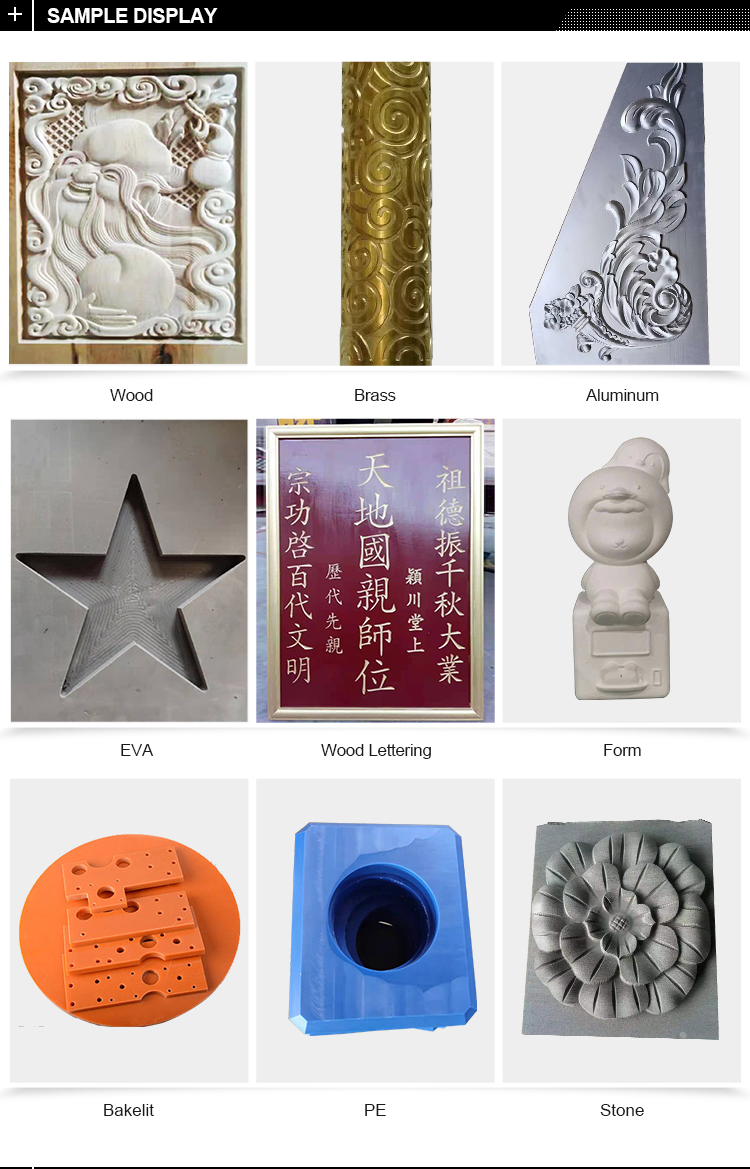

Sample Display
Related Product
Product Paramenters
|
Model
|

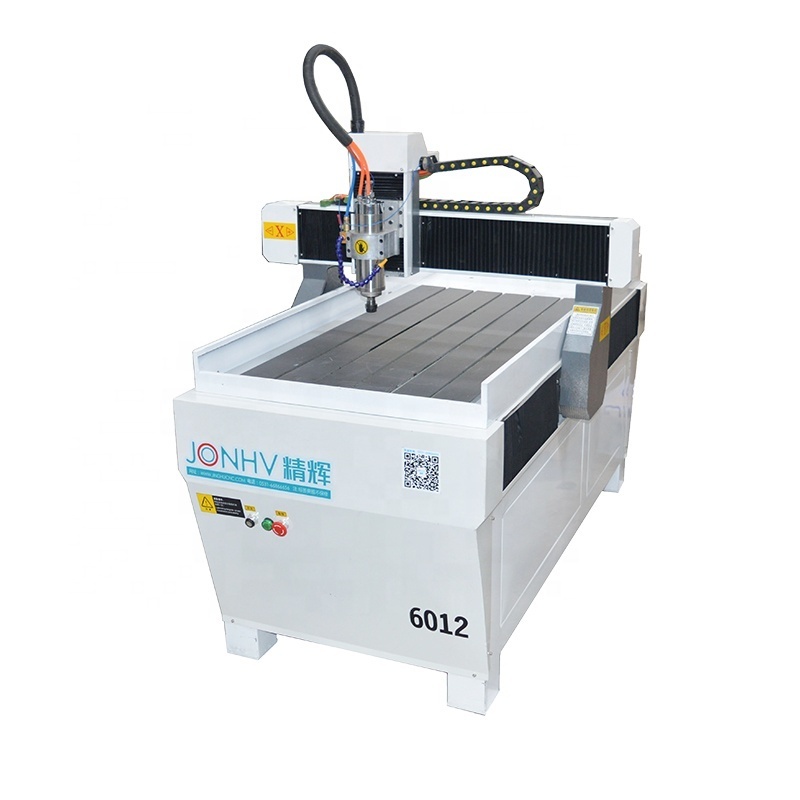

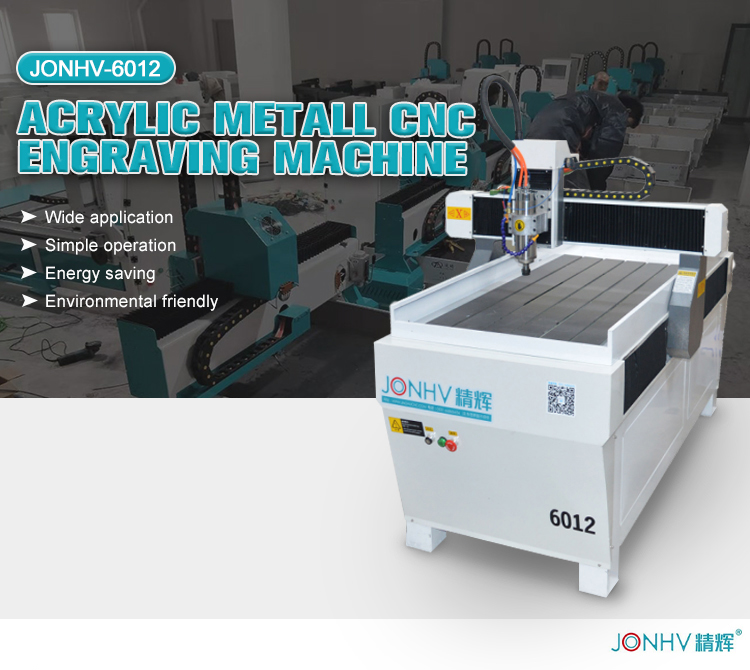

JONHV-6012 New CNC Router
|
|
X、Y Working Area
|
600 ×1200mm
|
|
Z Working Area
|
100mm
|
|
Table Size
|
720*1640mm
|
|
Max Travelling Speed
|
9m/min
|
|
Max Carving Speed
|
4m/min
|
|
Max Feed Height
|
150mm
|
|
Work Accuracy
|
±0.2mm
|
|
Repositioning Accuracy
|
±0.05mm
|
|
Command
|
G code *.u00*.mmg*.plt
|
|
Surrounding of software
|
windows98/2000/xp
|
|
Table Material
|
Aluminum profile+PVC
|
|
Drive Mode
|
High-precision Ball Screw Drive
|
|
Guide Rail
|
High-precision Linear Guide Rail
|
|
Spindle Motor
|
1.5 / 2.2kw
|
|
Spindle Rotating Speed
|
6000-24000rpm/min
|
|
Spindle
|
YFK/ Changsheng/ Jiesite
|
|
Frequency Converter
|
Best
|
|
Drive Motor
|
Stepper Motor（optional servo motor）
|
|
Driver
|
Matching Driver
|
