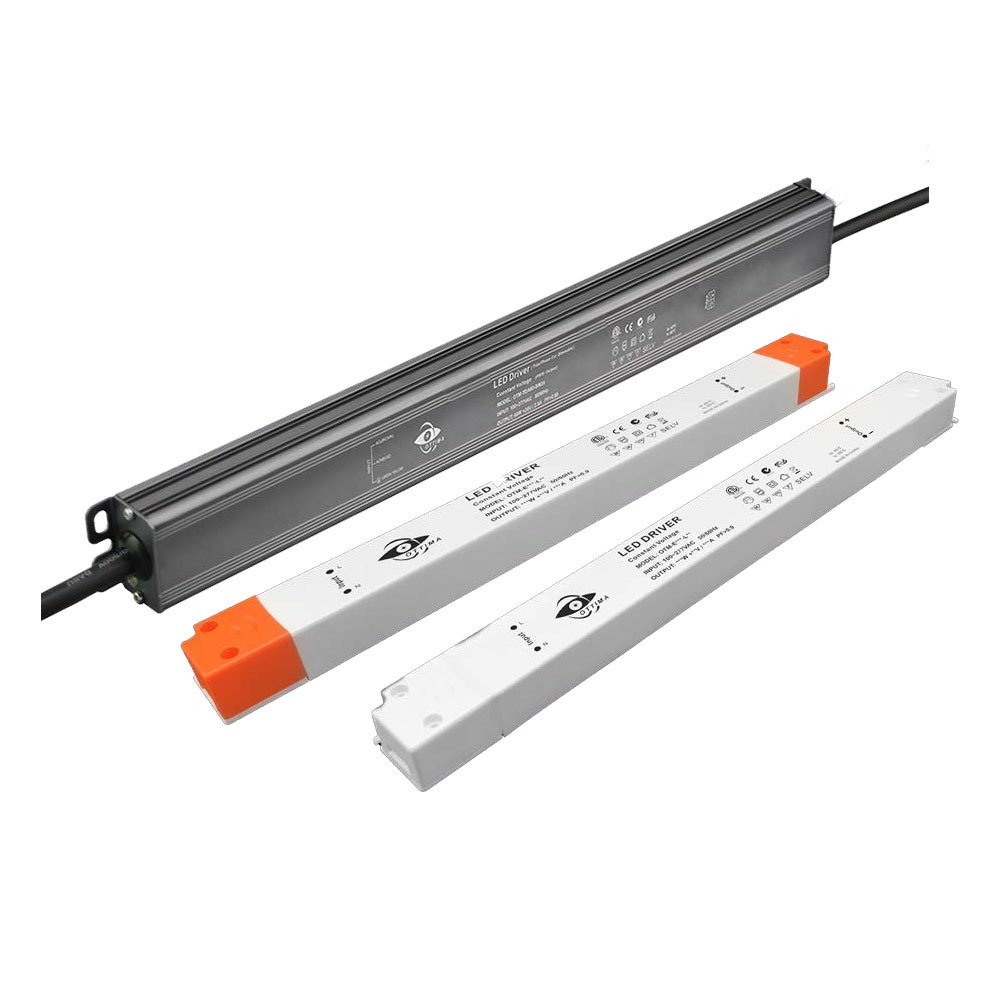

0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer
0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer

0-10v dimming slim led power supply 12v 12.5 amp 30w to 150w led driver ac 120v to 12 volt dc transformer

FOB Reference Price: Get Latest Price
≥2 Pieces
US $36
≥500 Pieces
US $33.5
≥2000 Pieces
US $29.5
≥20000 Pieces
US $19.5
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
OTM-TD100
Output Frequency:
50/60Hz
Certification:
UL cUL ETL cETL FCC ROHS
Type:
Consant Voltage
Efficiency:
81%-87%
IP Rate:
IP20,IP66
Power Factor:
>0.95
Application:
LED Lighting
Product Name:
Triac dimmable led driver
Output Voltage:
12v/ 24v
Loading Range:
10%-100%

Quick Details

Warranty(Year):
7-Year
Place of Origin:
Guangdong, China
Brand Name:
Ottima
Model Number:
OTM-TD100
Output Frequency:
50/60Hz
Certification:
UL cUL ETL cETL FCC ROHS
Type:
Consant Voltage
Efficiency:
81%-87%
IP Rate:
IP20,IP66
Power Factor:
>0.95
Application:
LED Lighting
Product Name:
Triac dimmable led driver
Output Voltage:
12v/ 24v
Loading Range:
10%-100%

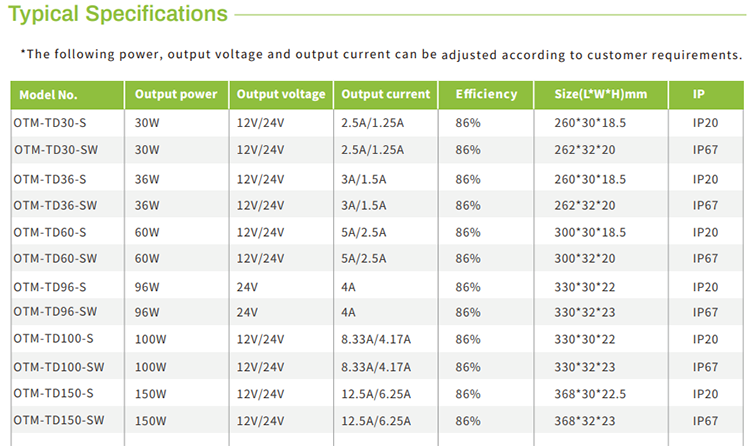

Specification

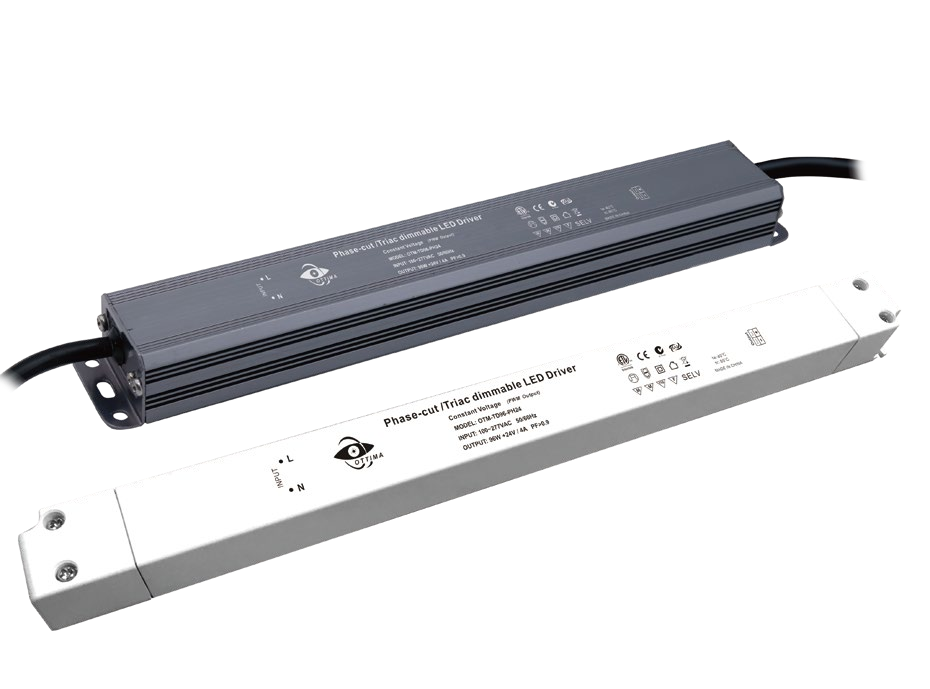

Linear Triac Dimmable LED Driver

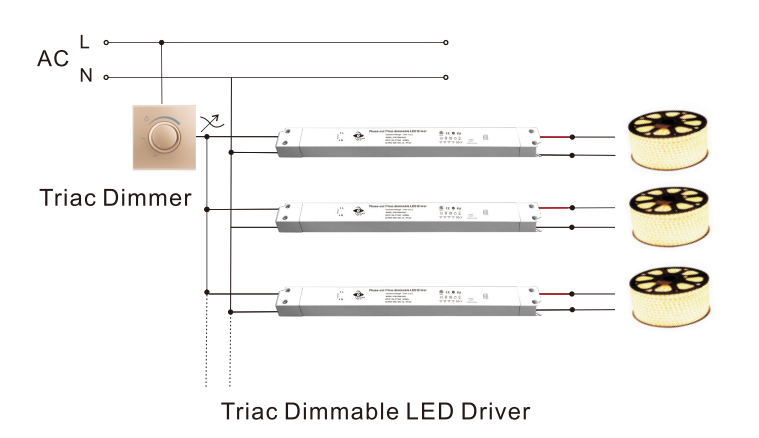

Triac/Forward and Reverse phase (leading and trailing edge)/MLV/ ELV dimmer
Used for Linear Shape application
1:Input Voltage 110-277Vac
2:Power Factor up to 0.98
3:Dimming range 0-100%
4:Loading Range 10-100%
5:Protection:short circuit/over load/ Over temperature
6:PWM output, not change the color index
Full protection case, for dry , damp ,wet location
7:Flicker-free
8:Work with Triac/Forward and Reverse phase (leading and trailing edge)/MLV/ELV dimmer

Linear LED Driver
Non dimmable Constant voltage LED Driver(7 years warranty )
Used for Linear Shape application
1.Input Voltage 110-277Vac
2.Power Factor up to 0.95
3.Power Range:30-150W
4.Protection:short circuit/over load/ Over temperature
5.PWM output, not change the color index
6. Full protection case, for dry , damp, wet location
7. Flicker-free
8. Cooling by free air convection
9. UL cUL ETL cETL FCC,ROHS class2
10. 7 years warranty

5 in 1 Dimmable LED Driver
Triac dimmable/0-10V/1-10V/10V PWM/Potentiometer
Used for Linear Shape application
1.Input Voltage 110-277Vac
2.Power Factor up to 0.98
3.Dimming range 0-100%
4.Loading range 10-100%
5.PWM output, not change the color index
6.Work with Triac/Forward and Reverse phase (leading and Trailing edge)/MLV/ELV Dimmer & 0/1-10V dimmer
7. 7 years warranty




Constant Voltage
Constant Current
Triac / Phase-cut ELV MLV Dimmable
Triac / Phase-cut Dimming
Triac & 0-10V 1-10V Dimmable
Triac & 0-10V 1-10V Dimming
0-10V 1-10V Dimmable
0-10V 1-10V Dimming
DALI 1 Push Dimmable
DALI 1 Push Dimming
DALI 2 Push Dimmable
DALI 2 Push Dimming
DMX512 Dimmable
DMX512 Dimming
BLE Wireless Dimmable
BLE Wireless Dimming
ZigBee Wireless Dimmable
ZigBee Wireless Dimming
WiFi Wireless Dimmable
WiFi Wireless Dimming
Non Dimmable
Non Dimming
