Quick Details
-
Mold Height(mm):
-
180 - 500 mm
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
45 kN
-
Theoretical Shot Volume(cm³):
-
291 cm³
-
Injection Rate (g/s):
-
128 g/s
-
Injection Weight (g):
-
5500 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
45 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
470x470
-
Weight (KG):
-
5500 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
430 mm
-
Model Number:
-
HJF15
-
Brand Name:
-
HAIJIA
-
Power (kW):
-
7.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Automatic:
-
yes
-
Clamping Force (kN):
-
150
-
After Warranty Service:
-
Video technical support
-
Keyword:
-

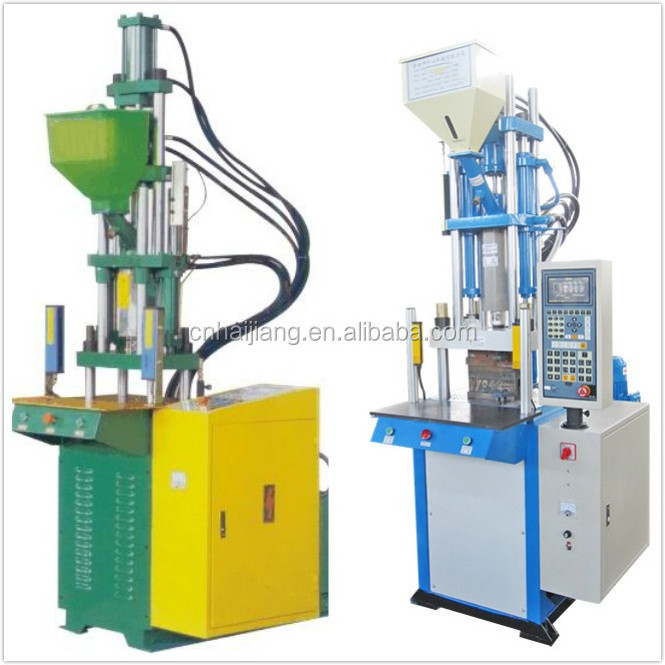

Vertical Plastic Injection Moulding Machine
-
BRAND:
-
HAJIA
-
Motor:
-
Servo Energy Saving Motor
-
Color:
-
Customers' Request
-
Advantages:
-
High Speed High Efficiency
-
Marketing Type:
-
New Product 2022
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
470mm
-
Distance between Tie Bars(Height)(mm):
-
470mm
-
Plasticizing Capacity(g/s):
-
108 128
-
Mold Height(mm):
-
180 - 500 mm
-
Ejector Stroke(mm):
-
130 mm
-
Ejector Force(kN):
-
45 kN
-
Theoretical Shot Volume(cm³):
-
291 cm³
-
Injection Rate (g/s):
-
128 g/s
-
Injection Weight (g):
-
5500 g
-
Screw Speed (rpm):
-
1 - 180 rpm
-
Screw diameter (mm):
-
45 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
470x470
-
Weight (KG):
-
5500 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
430 mm
-
Model Number:
-
HJF15
-
Brand Name:
-
HAIJIA
-
Power (kW):
-
7.5 kW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Automatic:
-
yes
-
Clamping Force (kN):
-
150
-
After Warranty Service:
-
Video technical support
-
Keyword:
-
Vertical Plastic Injection Moulding Machine
-
BRAND:
-
HAJIA
-
Motor:
-
Servo Energy Saving Motor
-
Color:
-
Customers' Request
-
Advantages:
-
High Speed High Efficiency
-
Marketing Type:
-
New Product 2022
