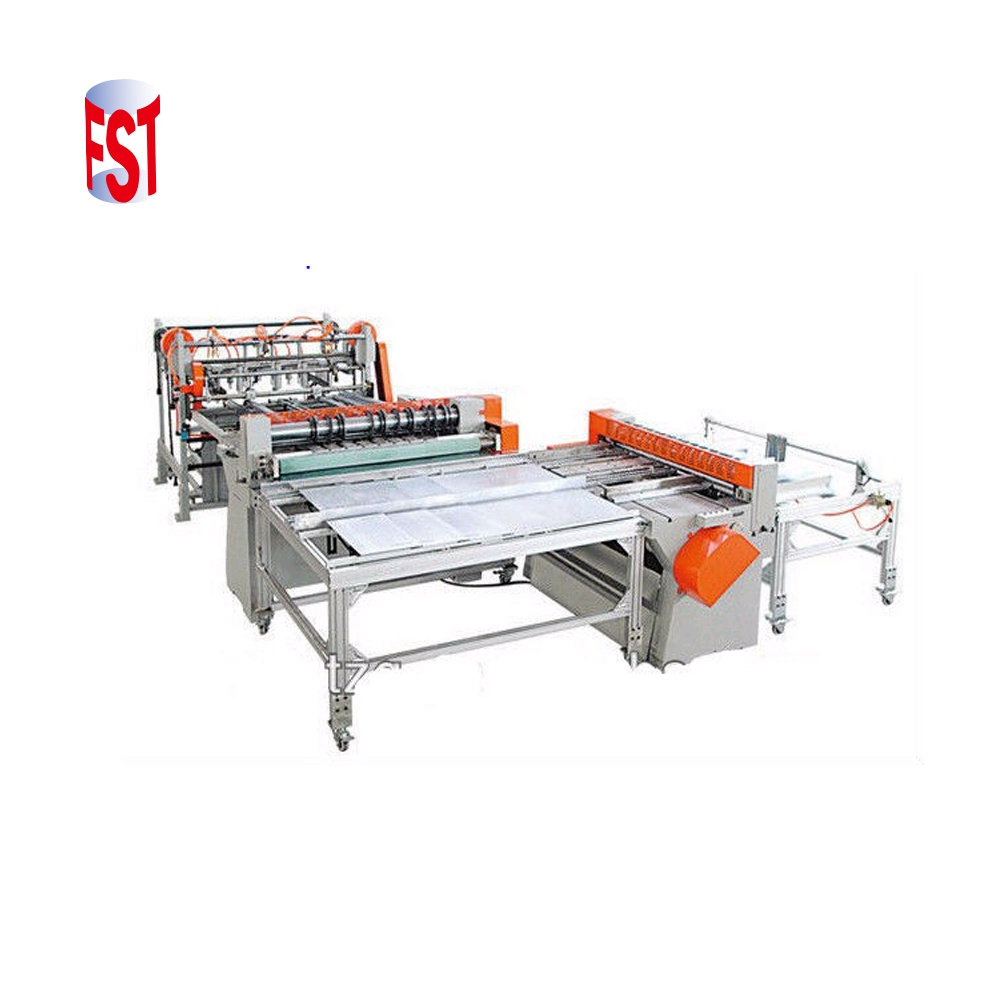

Automatic Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of
required size,it's the first stage in the production line.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUZHOU FIRST Machinery
-
Dimension(L*W*H):
-
11500x2100x2300mm
-
Weight:
-
8500 KG
-
Capacity:
-
10-20cans/min
-
Diameter range:
-
65~180mm
-
Height:
-
70~315mm
-
Thickness:
-
0.18~0.28mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Application:
-
Chemical, Food
-
Packaging Material:
-
Metal
-
Applicable Industries:
-
Metal Packaging
-
Voltage:
-
380v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUZHOU FIRST Machinery
-
Dimension(L*W*H):
-
11500x2100x2300mm
-
Weight:
-
8500 KG
-
Capacity:
-
10-20cans/min
-
Diameter range:
-
65~180mm
-
Height:
-
70~315mm
-
Thickness:
-
0.18~0.28mm
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
Product Name:
3.75L Paint Metal Pail Barrel Tin Can Making Machine Production Line
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.
The follow is 1~5liter full automatic tin can production line with productivity of 60cans/min
The follow is 1~5liter full automatic tin can production line with productivity of 60cans/min
Product Paramenters
|
Name
|
Automatic Duplex Slitting Machine
|
|
Model
|
GT-A10
|
|
Max Thickness
|
0.4mm
|
|
Max Width
|
1200x1200mm
|
|
Min Width
|
600x600mm
|
|
Power
|
15kw
|
|
First Strip
|
5 pieces
|
|
Second Strip
|
15 pieces
|
|
Net Weight
|
2000kg
|
|
Dimension
|
2500x2000x1200mm
|
Automatic Canbody Welder is use to make body blanks into cylindrical shape and welding,it's the second stage in the production line.
|
Name
|
Automatic Can Welding Machine
|
|
Model
|
FBZ-B-60
|
|
Input Power
|
3N380V/50HZ 40KVA
|
|
Welding Speed
|
5~15m/min
|
|
Productivity
|
60cans/min
|
|
Diameter Range
|
Φ120~Φ180mm
|
|
Height Range
|
400mm
|
|
Welding Thickness
|
0.2~0.38mm
|
|
Overlap
|
0.6~0.8mm
|
|
Net Weight
|
2500kg
|
|
Dimension
|
2200x2700x2000mm
|
Chiller is use to connect with automatic canbody welder,e
xtended welding wheel service life
|
Name
|
Water Chiller
|
|
Model
|
AC-02
|
|
Cooling Capacity
|
5332kcal/h
|
|
Power
|
220V 50HZ/2025kw
|
|
Net Weight
|
100kg
|
|
Dimension
|
650x500x830
|

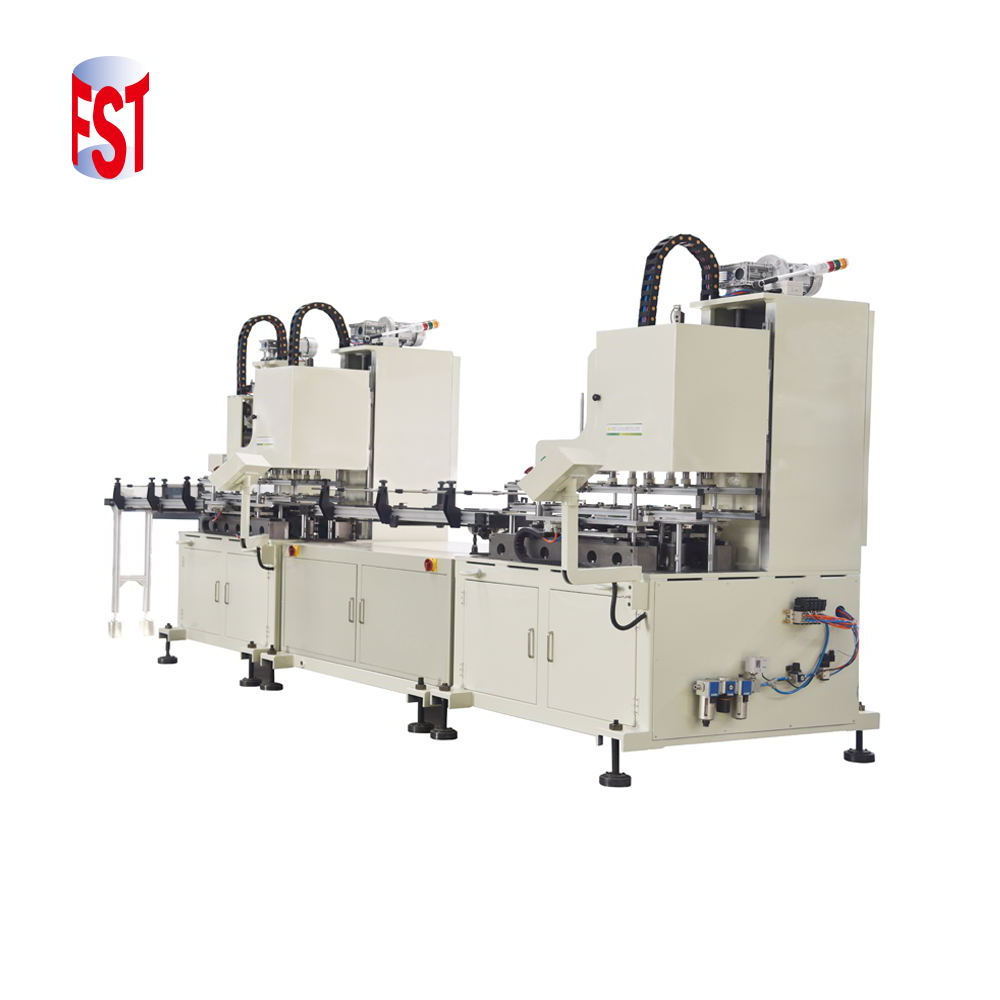

Automatic Bodyformers is use to given the canbody into final shape and prepared for the endseaming process.it's combine all the necessary functionsin a single machine: flanging,and seaming the bottom or top end.
|
Name
|
Automatic Sealing Machine
|
|
Model
|
RA-180
|
|
Diameter Range
|
52~180mm
|
|
Height Range
|
70~250mm
|
|
Capacity
|
60cans/min
|
|
Thickness
|
0.2~0.28mm
|
|
Air Pressure
|
0.3~0.5Mpa
|
|
Power
|
2.2kw
|
|
Net Weight
|
1300kg
|
|
Dimension
|
1800x850x1800mm
|
Our Advantages
1/ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
2/ OMRON Sensor and photoelectric switch form Japan.
3/ SMC Waterway detected flow switch from Japan.
4/ SKF bearings from Sweden.
5/ SCHNEIDER electrical appliance components from France.
6/ LG air switch,contactor and circuit breaker from South Korea.
7/ SEMIKRON & SIEMENS control thyristors from Germany.
2/ OMRON Sensor and photoelectric switch form Japan.
3/ SMC Waterway detected flow switch from Japan.
4/ SKF bearings from Sweden.
5/ SCHNEIDER electrical appliance components from France.
6/ LG air switch,contactor and circuit breaker from South Korea.
7/ SEMIKRON & SIEMENS control thyristors from Germany.
